Construction Machineries
Block making machine








Block making machine

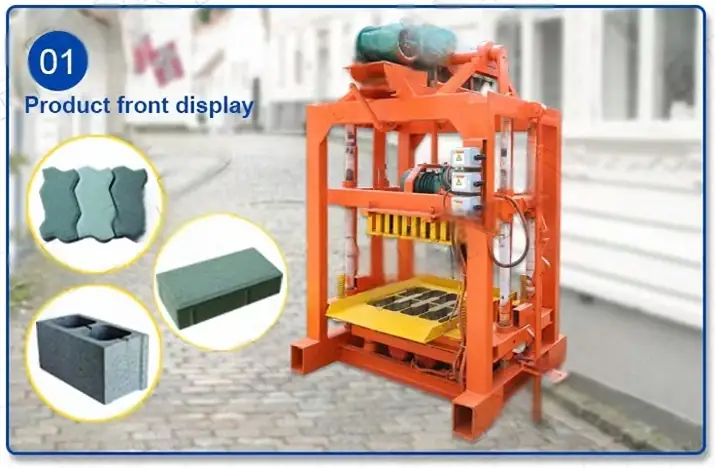

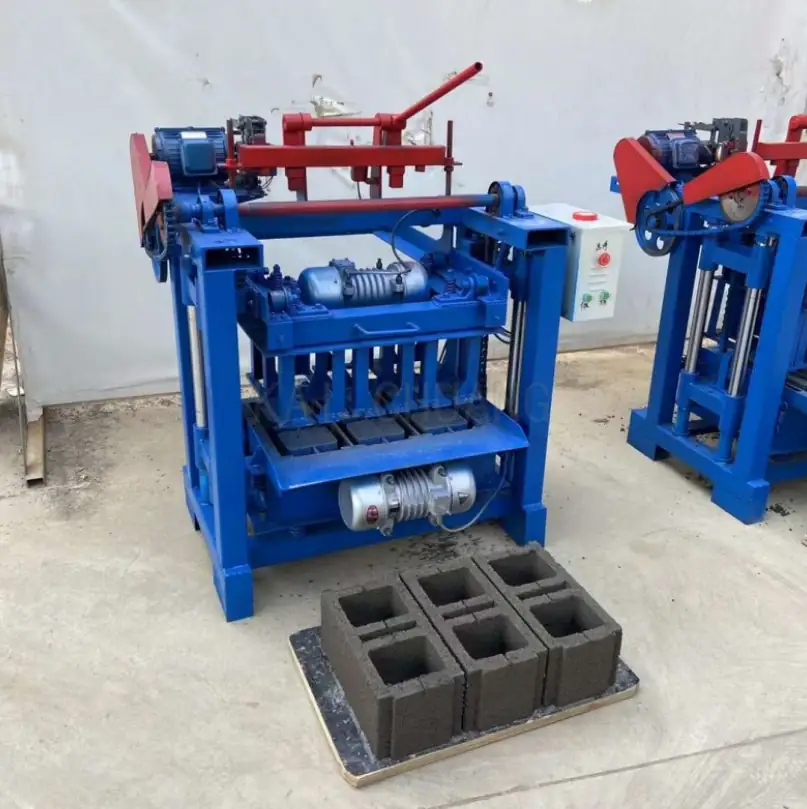

The QTJ4-40 is a manual concrete block machine that is simple to operate and has gained popularity across Africa due to its affordable price, low maintenance, strong vibration force, and high sales performance.

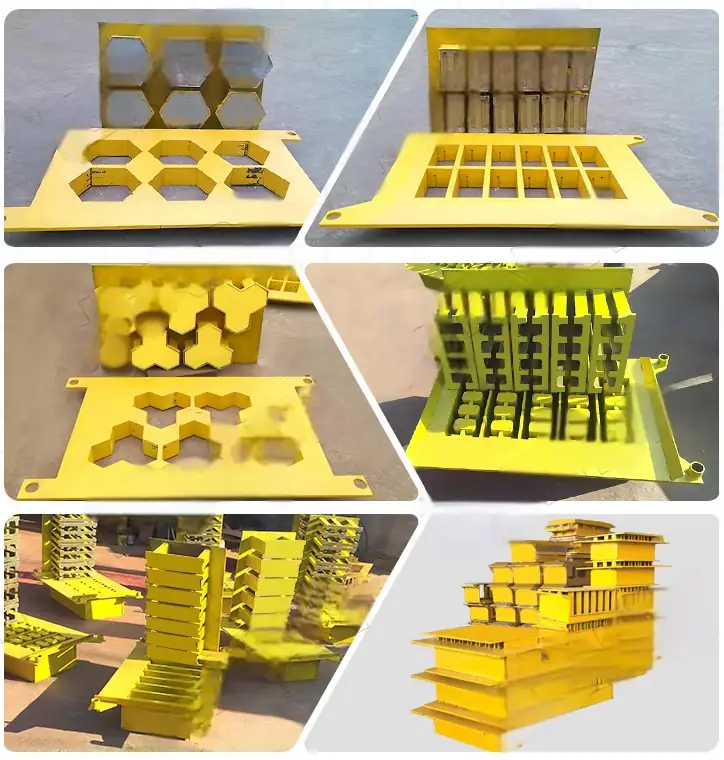

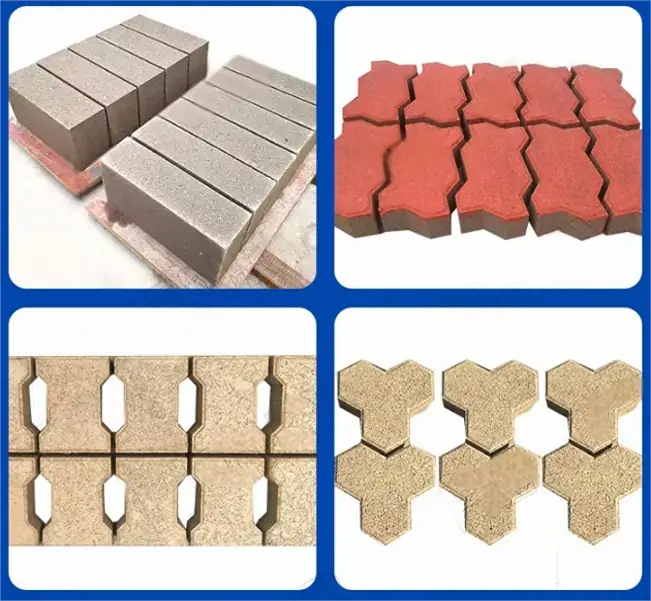

This machine is capable of producing various types of concrete blocks, including hollow blocks, solid blocks, and interlocking blocks, making it versatile for different construction needs. The blocks it produces are ideal for use in walls, fencing, and other structural applications.
The QTJ4-40 is an excellent choice for entrepreneurs looking to start a concrete block manufacturing business. It combines ease of use, cost-effectiveness, durability, and efficient block compaction, requiring virtually no maintenance.

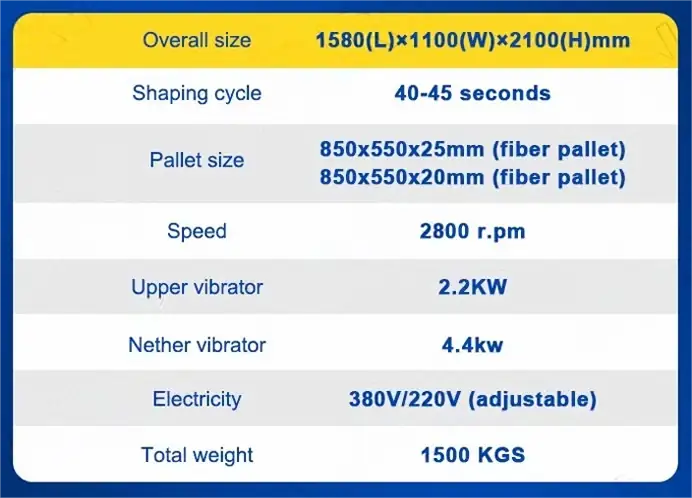

Specifications
Specification | Manual Concrete Block Machine |
---|---|
Model No. | QTJ4-40 |
Certification | CE, ISO, SGS |
Customisation | Available |
Automation Level | Semi-automatic |
Type | Vibration Moulding |
Product Name | QTJ4-40 Manual Concrete Block Machine |
Total Mass | 1.5 tonnes |
Carriage Size | 850 × 450 × 25 mm |
Working Area Requirement | 1200 m² |
Working Shed Requirement | 300 m² |
Colour | Adjustable |
Moulding Cycle | 35–40 seconds per cycle |

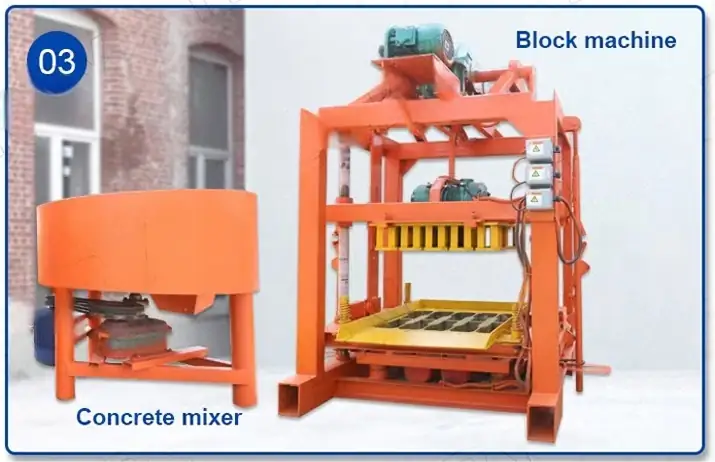

Concrete Mixer Compatibility | JQ350 |
Machine Dimensions (L × W × H) | 1580 × 1100 × 2100 mm |
