Robotic Arm Debagging Machine
Robotic arm debagging machine for efficient material unpacking.
Debagging Machines
Robotic Arm Debagging Machine

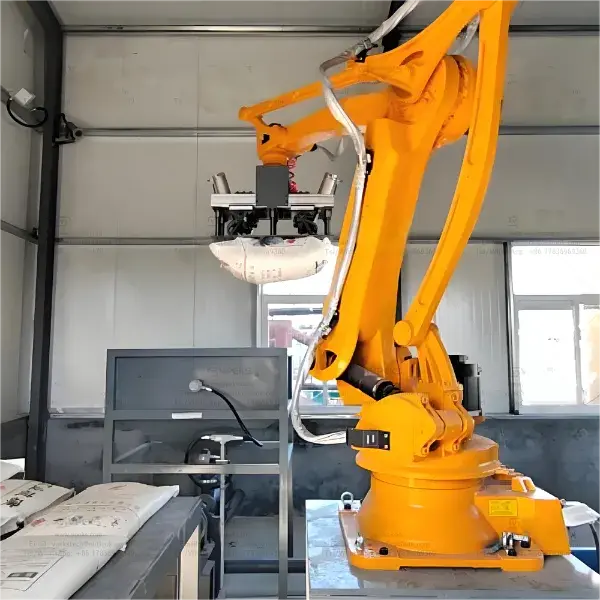

The Robotic Arm Debagging Machine uses a multi-axis robot with specialised grippers to handle individual filled bags, move them to the opening station and discharge the material into downstream equipment. Empty packaging is collected separately.
The listed handling capacity is 200–300 bags per hour. Actual output depends on the bag, material flow, pallet presentation, opening cycle and receiving process. Gripper selection and the robot working envelope should be checked against your pallet arrangement and factory layout.
Discuss your powder or granular product, bag construction and required output before selecting a configuration. Compare column robot, robotic arm and layer-by-layer debagging, or request a quotation for your application.
The Robotic Arm Debagging Machine is fitted with specialised grippers designed to automatically unpack and unload bagged materials. The entire system is PLC-controlled and operates fully automatically.
The process begins by feeding the packaged materials into the machine. The robotic arm then grips each bag, cuts and opens it, and separates the contents from the packaging. The unpacked material is discharged through the outlet, ready to move on to the next stage of processing.
0
up to bags/hr
0
kg max load
Process flow
1. Bag Detection
Sensors identify individual bag positions on the pallet or conveyor system.
2. Single Bag Gripping
The robotic arm grips one bag at a time using its end-effector.
3. Bag Transfer
The bag is moved from the pallet to the cutting or opening area.
4. Bag Opening
The machine automatically cuts or opens the bag to release the material inside.
5. Material Discharge
The contents are emptied through a discharge chute into the next processing stage (e.g., hopper, mixer).
6. Empty Bag Collection
The empty bag is transferred to the waste collection unit for compression or disposal.
Features
High Efficiency
Capable of processing 200–300 bags per hour, ideal for high-throughput operations.
Versatile Applications
Suitable for a wide range of industries including food, chemicals, and building materials.
Flexible Compatibility
Handles various bag types such as PP, kraft paper, and woven bags, adapting easily to diverse requirements.
Automated Operation
Integrated with an automatic control system for streamlined, hands-free processing.
Enhanced Safety
Fitted with multiple safety features to protect both operators and equipment.
Adaptable Design
Suitable for different working environments with minimal adjustments needed.
Specifications
| Specification | Robotic Arm Debagging Machine |
|---|---|
| Model | WM - RADM300 |
| Handling Capacity | 200–300 bags/hour |
| Voltage | 380V, 50Hz or 60Hz |
| Air Supply Pressure | 0.5–0.8 MPa |
| Maximum Load Capacity | 180 kg |
| Machine Dimensions (L × W × H) | 2100 × 2600 × 2500 mm |
| Net Weight | Approximately 500 kg |
| Application Scope |
Food Industry: Flour, sugar, and flavourings Pharmaceutical Industry: Raw materials for pharmaceuticals Chemical Industry: Chemical raw materials, powders, and granular materials Agriculture and Feed Industry: Feed, seeds, and fertilisers |
| Note | The above technical specifications may vary depending on equipment configuration. |
First ever packaging machine questionnaire
Which machine do you need?
Take our quick questionnaire to discover which bagging machine fits your needs. For an exact match and pricing, a detailed quote will be required.
Why Choose Us
FAQ
What information is needed to quote a robotic arm debagging system?
Provide the material name and flow characteristics, bag construction and dimensions, filled weight, target bags per hour, pallet dimensions and stacking pattern. Include the receiving hopper or conveyor, discharge height, available space and cleaning needs. These details define the gripper, opening method, robot working envelope and line connections. Request a robotic arm debagging quotation.
How does the robotic arm debagging process work?
The robot detects and grips an individual bag, transfers it to the opening area and releases the contents into the receiving process. Empty packaging is separated and collected. Confirm the proposed cutting or opening method, dust-extraction arrangement and empty-bag handling in your quotation. The complete line must also coordinate pallet presentation and material discharge.
Which bag types and materials should be assessed?
The page lists PP, kraft paper and woven bags, with applications including powders and granules used in food, chemicals, feed, fertilisers and building materials. Confirm the exact bag construction, any liner, dimensions, filled weight and material flow before selection. Gripper compatibility, contact surfaces, cleaning and packaging separation must be reviewed for the intended product.
What utilities and installation space does the robotic arm require?
The listed electrical supply is 380 V at 50 Hz or 60 Hz, with compressed air at 0.5–0.8 MPa. Listed machine dimensions are 2100 × 2600 × 2500 mm. The complete installation also needs the robot working envelope, guarding, pallet access, maintenance clearance and receiving equipment. Request the final layout, air consumption and dust-extraction connection requirements for the quoted configuration.
When should I compare a robotic arm with other debagging machines?
Compare the robotic arm when assessing individual-bag handling with a multi-axis robot and application-specific gripper. The column robot is listed at up to 120 bags/hour with a maximum handling load of 50 kg; this robotic arm model is listed at 200–300 bags/hour. Layer-by-layer handling is listed at 400–600 bags/hour for full-layer operation. Selection depends on bag presentation, material flow, layout and complete-line capacity. Compare all three debagging systems.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
Can I discuss a robotic arm debagging project in English?
Yes. Our fluent English support reduces communication gaps, makes the proposed specifications and quotation clear and transparent, and helps your project progress smoothly from enquiry through machine selection to delivery. We explain gripper selection, bag presentation, installation requirements and downstream connections directly. Discuss your project in English.
