High‑Level Palletiser with Push System
Automated, high‑speed palletising for bags, boxes & bundles – maximise throughput and minimise labour.
Automated Palletiser
High-Level Palletiser with push system
High-Level Palletiser is a fully automatic system designed for multi-layer palletising of bagged or boxed products in predefined arrangements.
Utilising a horizontal push mechanism, it precisely positions products onto pallets, ensuring accurate alignment and stack stability for easy handling, transport, or warehouse storage.
With its automated operation, this palletiser greatly enhances production efficiency while reducing manual labour. It is well-suited to a wide range of industries, including food, pharmaceuticals, chemicals, and building materials.
Featured in International Cement Review
Our technical contribution discusses high-level palletising with full-layer transfer as part of a cement packing-line upgrade. Read our published article (PDF)
Written by Wiz Machinery · May 2026 · pages 62–64
0
m pallet height
0
kg air consumption
0
bags/hr (up to)
Process flow

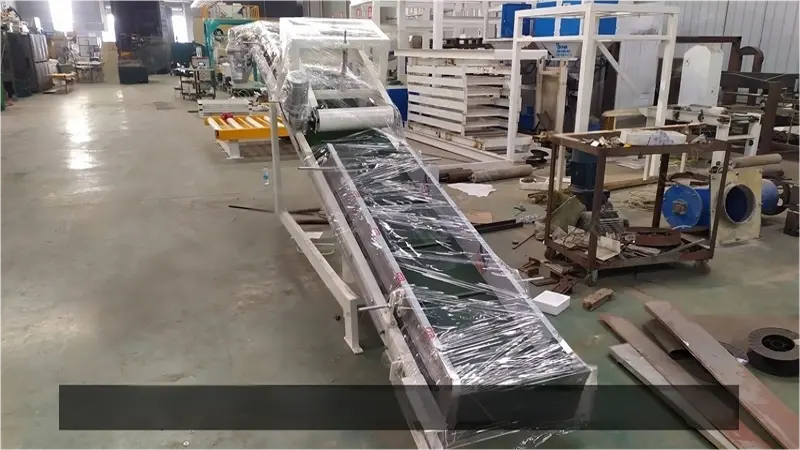

1. Horizontal Conveyor
Transports filled bags from the upstream packaging line to the buffer area.
2. Buffer Conveyor
Temporarily holds bags to ensure a consistent and regulated flow into the next stage of the process.
3. Bag Vibrating Conveyor
Gently shakes each bag to level and settle the contents for uniform stacking.
4. Pallet Feeder
Automatically supplies empty pallets to the palletising station.

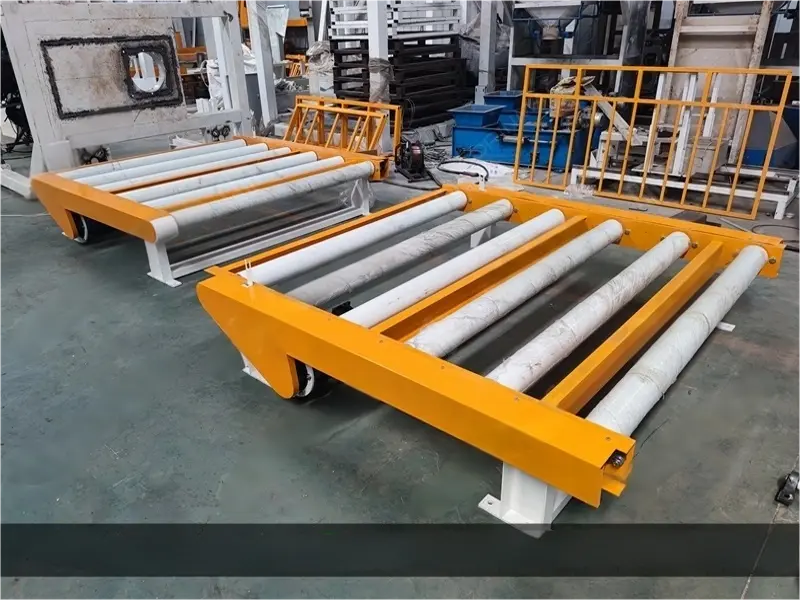

5. Pallet Conveyor
Moves pallets into the correct position for stacking and then transports completed pallets onward.
6. Sorting Machine
Aligns and orients bags into the required pattern based on the selected stacking configuration.
7. Bag Pusher
Pushes bags horizontally into the stacking position with precision.
8. Bag Pusher
Pushes bags horizontally into the stacking position with precision.
9. Finished Pallet Conveyor
Transports fully stacked pallets to the end of the line for wrapping, storage, or dispatch.
Features
High Efficiency
Capable of palletising up to 1,200 bags per hour with line coding support, significantly increasing production line throughput.
Flexible, Intelligent Stacking Configuration
Equipped with a servo-driven coding and bag-separating system, the palletiser supports various stacking patterns, bag types, and marking formats. Changeovers require no mechanical adjustments—simply select the stacking mode on the user interface. The separator operates smoothly, protecting bag appearance.
Gentle Handling for Product Integrity
The stable operation of the servo-controlled bag separating system minimises impact and ensures the protection of the product’s exterior throughout the palletising process.
Adaptable and Quick Changeover
The palletiser is highly adaptable to various bag types and offers fast product changeover—assortment changes can be completed in under 10 minutes, improving production flexibility.
Consistent and Neat Stacking
Equipped with strong pressure rollers or vibrating modules to compress or settle the bag contents, ensuring smooth surfaces and tidy, uniform stacking results.
Real-Time Intelligent Monitoring
The system continuously tracks the number of bags on the conveyor. Based on live data, it automatically adjusts operational speeds to ensure uninterrupted and efficient production.
Low Power Consumption, High-Speed Operation
Designed for energy efficiency, the machine combines low running costs with high performance. It features an aesthetically pleasing design and produces neatly stacked pallets.
Easy to Maintain
The equipment has a simple structural design for straightforward maintenance. The control cabinet is fitted with sealed doors and high-quality ventilation filters to enhance safety and equipment longevity.
Robust Safety Features
Built-in multi-level alarm indicators provide real-time fault feedback. The machine is equipped with automatic stop and alarm functions to safeguard operations.
Specifications
| Specification | High-Level Palletiser with push system |
|---|---|
| Model | WM - HLPPS1200 |
| Power | 380V 50/60HZ 13KW |
| Suitable Raw Materials | Fertilizer, feed, flour, rice, plastic pellets, seeds, washing powder, cement, dry powder mortar, talc powder, slag aggregating agent, etc. |
| Proper Pallet Size | L1000~1200 × W1000~1200mm |
| Palletising Speed | 800~1200 bags/hour |
| Palletising Height | 1300~1800mm (customisable) |
| Air Pressure | 0.8MPA |
| Required Air Supply | ≥0.01m³/h |
| Servo Motor | XINJIE |
| Air Cylinder | AIRTAC / SNS |
| Pneumatic Solenoid Valve | AIRTAC |
| Sensors | OMRON |
| PLC | Siemens |
| Electric Components | Schneider |
