Open Mouth Bagging Machine
Single Weigher Open-Mouth Bagging Machine
Open-mouth bag filling with manual bag placement, automatic weighing and filling, conveying and sewing. Suitable bag weights up to 100 kg should be confirmed for your material and configuration.
Economical!

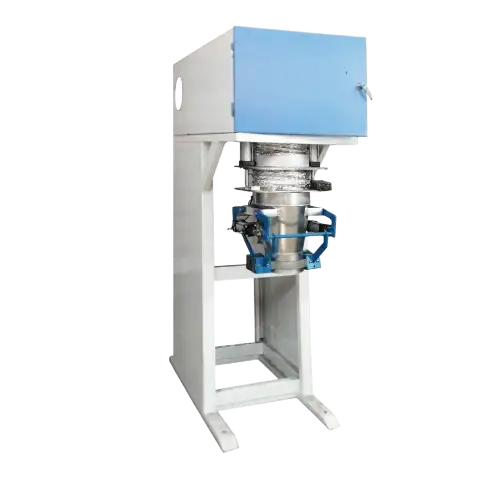

Single Weigher Bagging Machine (Open Mouth Bagging Machine)
Economical and user-friendly, the Single Weigher Open-Mouth Bagging Machine is a high-efficiency packaging solution designed for the precise filling of cement, fertilizer, powder, and granular materials. Ideal for upgrading from traditional carousel systems or automating manual packaging lines, it offers the most cost-effective path to modern production. With an intelligently engineered structure that integrates automatic weighing, conveying, sewing, and computerized control, this machine enhances productivity, ensures accuracy, and reduces labour intensity—making it an indispensable asset for any advanced packaging operation.
0
Bags / hr (up to)
0
+
Projects Done
0
%
Client Satisfaction
Process flow
1. Material Feeding
Material is delivered to the feed inlet into the weighing system.
2. Weighing
The material is measured using an integrated weighing unit.
3. Bagging
The machine automatically fills bags with the weighed products.
4. Sealing
Filled bags are conveyed to the sewing unit for sealing.
5. Completion
The sealed bags are ready for palletising or storage.

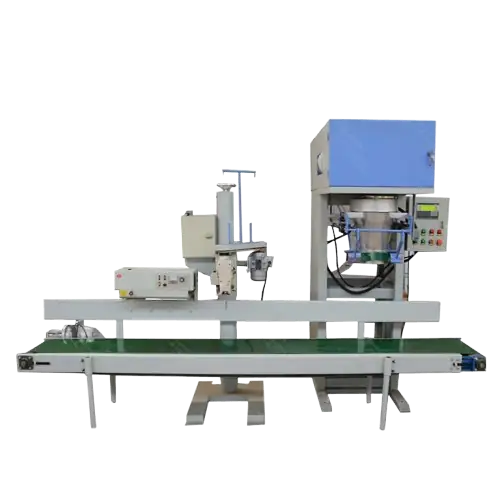

What's included?
| Single Weigher Bagging Machine | ||
|---|---|---|
| Item Name | Application | Quantity |
| Packing Machine | Weighing and filling bags | 1 set |
| Horizontal Conveyor | Transferring material | 1 set |
| Automatic Sewing Machine | Sealing the bag after filling | 1 set |
| Control Cabinet | Microcomputer control (380V) for packing machine,
380V control cabinet for sewing machine and conveyor |
1 set |
| Additional Components | The user only needs to connect the main power cable to our control cabinets. All interconnecting wiring (including sensor cables) is supplied and Installation documents. | |
Features
Integrated Core Components
The machine comprises four seamlessly coordinated parts:
- Automatic weighing unit
- Conveying system
- Bag sewing mechanism,
- Computer control interface
Ensuring smooth, efficient operation across all stages of packaging.
- Automatic weighing unit
- Conveying system
- Bag sewing mechanism,
- Computer control interface
Ensuring smooth, efficient operation across all stages of packaging.
Advanced Weighing Precision
Equipped with digital frequency conversion technology and high-precision AD sampling, the system enables variable-speed feeding (fast, medium, slow) with automatic error correction, guaranteeing accurate and consistent weight in every bag.
Robust Structural Design
Crafted through precision stamping and moulding techniques, the machine’s sturdy frame minimizes packaging errors while enhancing reliability and long-term durability under industrial use.
Intelligent Network Integration
The host machine, conveyor, sewing unit, and control panel are interconnected to support intuitive, centralized operation—reducing manual labour and boosting overall workflow efficiency.
Spill-Resistant Handling
An anti-spill mechanism effectively prevents powder leakage and bag flipping during pneumatic bag opening, promoting a cleaner, safer working environment.
Smart Production Management
Automatically tracks shift-wise, daily, and cumulative production data, enabling real-time monitoring and improved decision-making on the production line.
Simplified Maintenance
Compact, accessible components allow for easy cleaning and maintenance, minimizing downtime and extending equipment lifespan.
User-Friendly Operation
Combining manual bag placement with automated weighing, filling, and sealing, the system streamlines packaging tasks—greatly improving productivity with minimal training required.
Specifications
| Single Weigher Bagging Machine | |
|---|---|
| Model | WM-SW50 |
| Dimensions | L3000x W800 x H2000（mm） Optional: Height will be 2500mm with feeding hopper，height of platform is 300mm |
| Bag dimensions | Width: 400 to 620 mm (15.75" to 24.5")
Length: 600 to 1100 mm ( 23.6" to 43.3") |
| Bag types | Pillow and gusseted |
| Bag materials | Paper and polywoven |
| Bulk materials | Flour, cement, fertilizer and other materials |
| Weighing range | Up to 100 kg (approximately 220 lbs) per bag |
| Packing speed | 180-360 bags/hour |
| Power | 1.5kw |
| Bag closing systems | Plain sew, plain sew with a single fold, heat sewing |
| Ambient temperature | 40 °F to 95 °F / 5 °C to 35 °C |
First ever packaging machine questionnaire
Which machine do you need?
Take our quick questionnaire to discover which bagging machine fits your needs. For an exact match and pricing, a detailed quote will be required.
Why Choose Us
FAQ
Does the single weigher require manual bag placement?
Yes. This configuration combines manual placement of the empty bag with automatic weighing and filling, followed by conveying and sewing. Include the operator cycle and bag-closing speed when planning output. If automated empty-bag handling is required, compare the fully automatic open-top bag filling machine and confirm its suitability for your bags and material.
What should I provide for a single-weigher quotation?
Share the material name, bulk density and flow characteristics; target bag weight; bag dimensions and material; required bags per hour; and preferred closing method. The machine supports bags up to 100 kg (approximately 220 lbs), subject to the proposed configuration and application. Include your available space, feed arrangement and utilities when you request a single-weigher quotation. Compare the dual weigher bagging machine if you need to assess a higher-output configuration.
How does WizMachinery's machines differ from other manufacturers?
We use internationally recognized components like OMRON, SIEMENS, ABB, Schneider, AirTAC, and NSK, ensuring high-quality, reliable machines with minimal concerns about lifespan and future replacements for our clients.
How does WizMachinery's service differ from other manufacturers?
We are a factory with an in-house team of design engineers and a 10,000-square-meter production workshop. Based on customer needs, we provide customized circuit designs and complete project support—from initial consultation, planning, and equipment selection to manufacturing, site layout, delivery, installation, and commissioning.
We offer comprehensive solutions to our clients.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
How does WizMachinery approach product and program design?
We focus on simplicity and user-friendliness in both design and programming, as our goal is to reduce labour costs through automation, not increase operational complexity.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
