Automatic Stretch Hood Wrapping Machine
Automatic pallet hooding with stretch film for load stability and protection during handling, storage and transport.
Efficient!
Automatic Stretch Hood Wrapping Machine

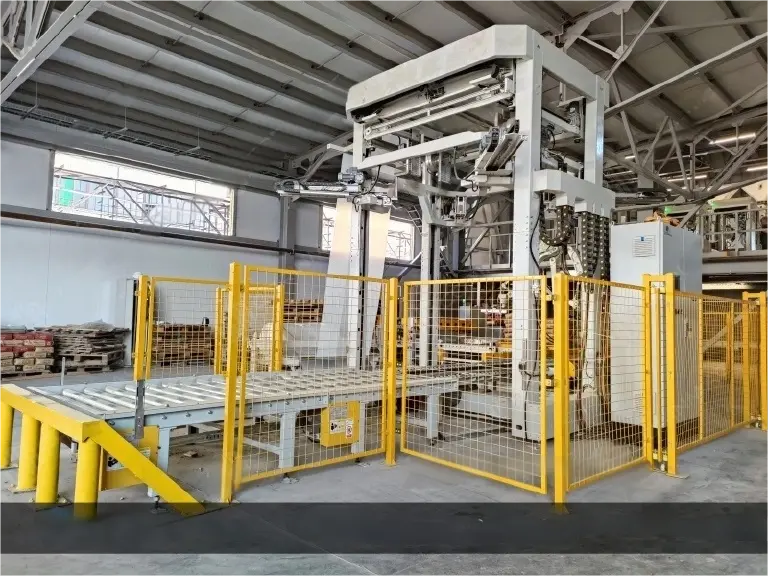

The automatic stretch hood wrapping machine, also called a stretch hooder, applies a tubular film hood over a palletised load. The film is stretched and released so its elastic recovery holds the load together, covering the top and sides without heat-shrinking the hood around the product.
It can be integrated after automatic palletising to prepare loads for storage and transport. Select the film and machine configuration around pallet dimensions, load stability and handling conditions; weather and UV protection depend on the film grade and application.
Featured in International Cement Review
Our technical contribution describes stretch hood wrapping integrated with high-level palletising in a cement packing-line upgrade. Read our published article (PDF)
Written by Wiz Machinery · May 2026 · pages 62–64
0
up to pallets/hr
0
pallet height
0
microns (film thickness)
Process flow
1. Pallet Placement

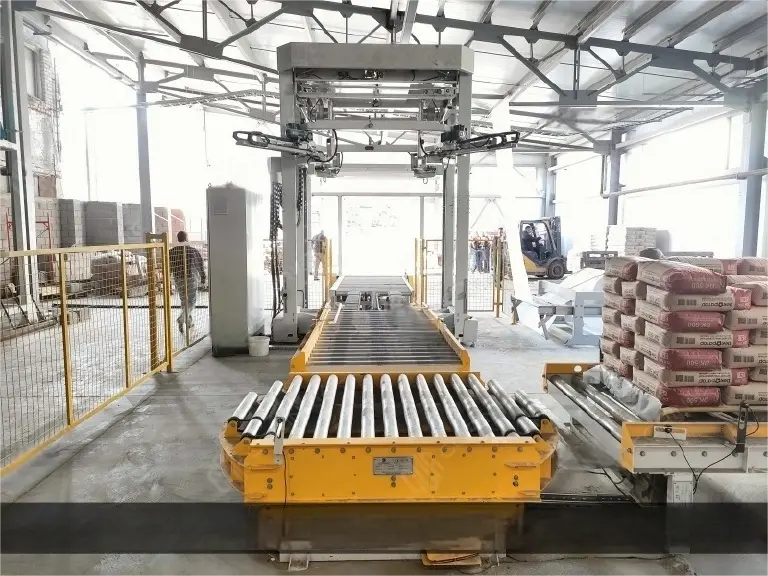

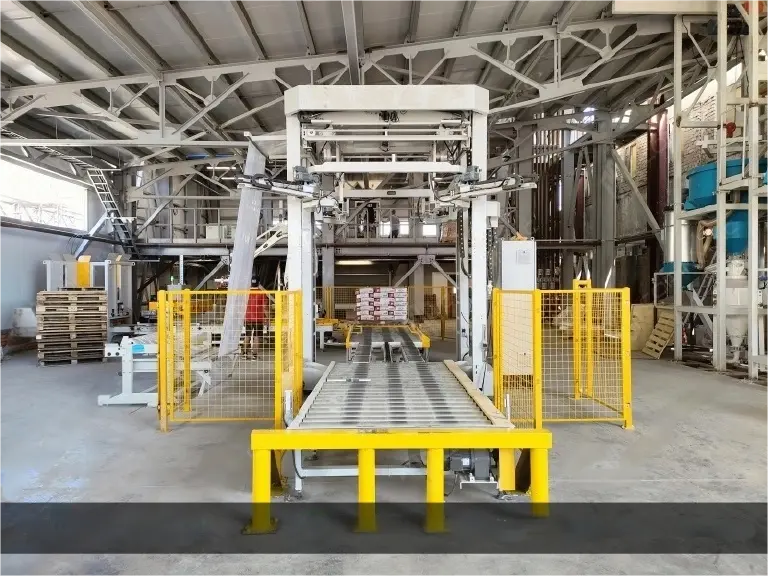

The palletised load is positioned beneath the stretch hood machine—either conveyed automatically or placed manually via forklift—ready for the hooding process.
2. Film Loading

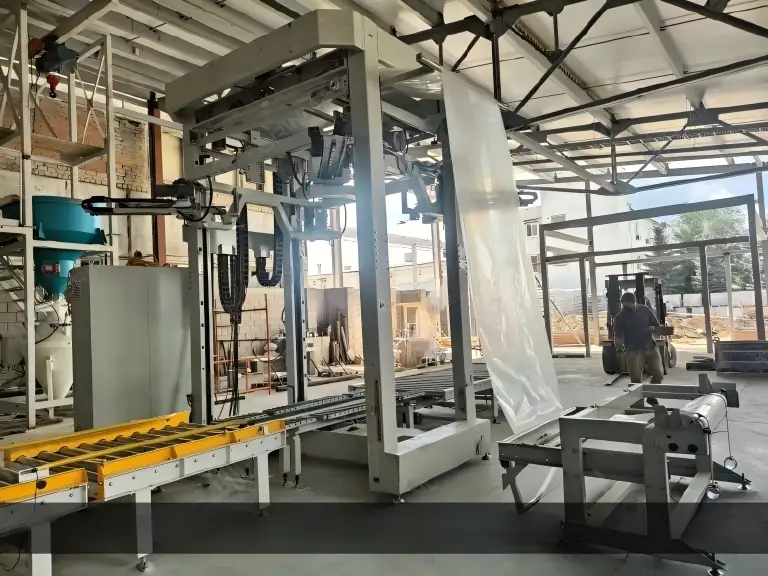

Polyethylene stretch hood film is supplied on large rolls and loaded onto the machine using a forklift. The system unwinds the film to the correct length based on the dimensions of the pallet.
3. Hood Cutting & Sealing
The machine automatically cuts the film to the programmed size and seals the top of the tubular hood, preparing it for application.
4. Film Stretching
The hood is stretched both horizontally and vertically by the equipment. This step is essential for ensuring a tight fit, which is critical for load stability during handling and transit.
5. Hood Application
The stretched hood is lowered over the pallet while still under tension. Once released, the elastic recoil of the film tightly secures the load from multiple sides.
6. Final Check & Despatch
The Stretch Hood Machine Operator performs a final inspection to confirm proper hood application and film tension. Once verified, the pallet is ready for storage or shipment.
Features
Flexible Pallet Compatibility
Capable of packaging a wide range of pallet sizes, the system offers exceptional versatility across different industries and load configurations.
Precision Stretch Control
Equipped with a built-in position sensor, the stretching mechanism ensures smooth, accurate adjustment of film tension to suit each pallet—enhancing wrapping quality and stability.
Automatic Size Detection
An intelligent contour detection system scans pallet dimensions and automatically adjusts the hood size, ensuring a tailored fit with every cycle.
Full Coverage & Weather Protection
Stretch hoods encapsulate the top and sides of the load, offering superior protection against dust, rain, and UV exposure, while improving load stability—unlike traditional stretch film.
Operational Efficiency & Safety
Automated hooding enables fast, consistent wrapping with reduced manual handling. This increases throughput, lowers labour costs, and enhances workplace safety.
User-Friendly Interface & Smart Diagnostics
The machine features an intuitive control interface and intelligent support tools, allowing easy setup, quick troubleshooting, and simplified maintenance for efficient operation.
Specifications
| Specification | Automatic Stretch Hood Machine |
|---|---|
| Model | WM - ASHWM90 |
| Pallet Size | L1000–1400 × W1000–1400 × H120–150 mm |
| Pallet Height (including pallet) | 800–2100 mm |
| Film Thickness | 80–150 microns |
| Wrapping Speed | Up to 90 pallets per hour |
| Air Consumption | 20 Nm³/h |
| Energy Consumption | 20 kW |
| Note | The above technical specifications may vary depending on equipment configuration. |
First ever packaging machine questionnaire
Which machine do you need?
Take our quick questionnaire to discover which machine fits your needs. For an exact match and pricing, a detailed quote will be required.
Why Choose Us
FAQ
How does an automatic stretch hood wrapping machine work?
The machine measures or receives the load dimensions, cuts tubular stretch film to length and seals the top of the hood. The hood is stretched over the palletised load and released so film recovery secures the load. Confirm pallet presentation, hood coverage, film handling and the connection to upstream and downstream conveyors for the selected configuration.
How does stretch hooding differ from stretch wrapping?
Stretch hooding applies a tubular film hood over the top and sides of the palletised load. Conventional stretch wrapping winds stretch film around the load; top coverage depends on the wrapping arrangement or a separate top sheet. Compare film requirements, load stability, storage conditions, required output and line layout when selecting a system.
What pallet sizes and film thicknesses are listed?
The page lists pallet footprints of 1000–1400 mm in length and width, load height including the pallet of 800–2100 mm, and film thickness of 80–150 microns. Confirm the actual load dimensions, overhang and film specification with your quotation. Film strength, stretch properties and required protection must suit the product and handling conditions.
What information is needed for a stretch hood machine quotation?
Send pallet length and width, minimum and maximum loaded height, load weight, product type, required pallets per hour and storage or transport conditions. Include the current film specification, conveyor heights, available layout and utility supply. Our fluent English support helps clarify the proposed equipment, film requirements and quotation. Request a stretch hood wrapping quotation.
What affects the wrapping speed and protection achieved?
The published speed is up to 90 pallets/hour. Actual throughput depends on load dimensions, film selection, conveyor presentation and the complete operating cycle. Protection depends on the hood coverage, film properties, load shape and handling or storage conditions. Agree the required output and load-stability assessment for your own pallets before ordering.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
