Concrete Batching plant



Concrete Batching plant

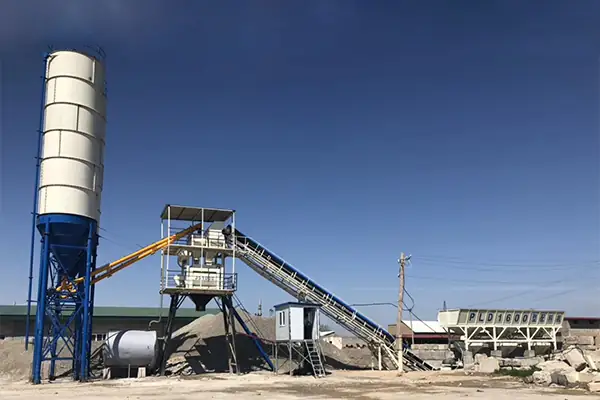

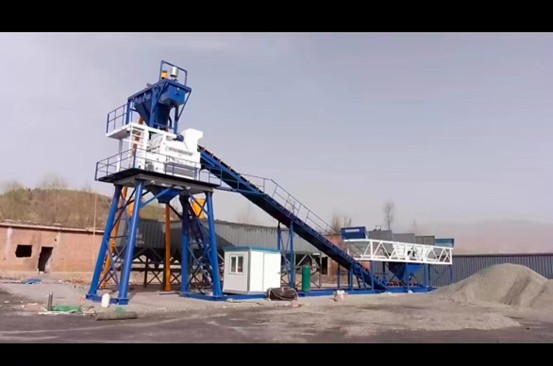

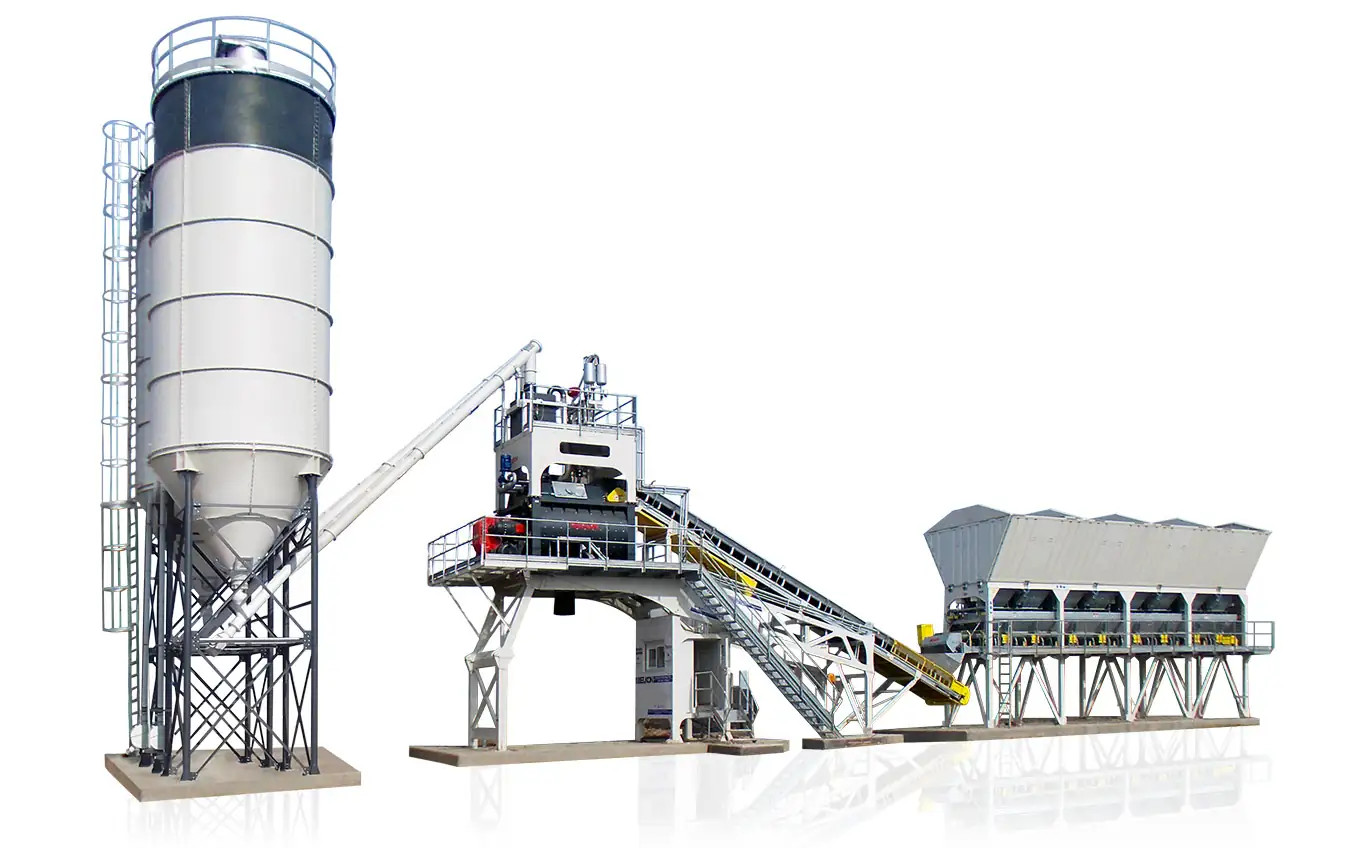

A concrete batching plant, also known as a concrete mixing plant, is an essential piece of equipment for producing high-quality concrete efficiently and reliably.
It combines key components such as a mixing host, batching machine, cement silo, screw conveyor, and an intelligent control system to ensure precise material dosing and consistent output.
Widely used in construction sites, precast factories, and infrastructure projects like bridges and roads, this equipment is ideal for operations that demand speed, accuracy, and durability. With its high efficiency and stable performance, a concrete batching plant is a valuable investment for any concrete production setup.
Specifications
Specification | HZS-25 | HZS-35 | HZS-50 | HZS-60 | HZS-75 | HZS-90 | HZS-120 | HZS-180 |
---|---|---|---|---|---|---|---|---|
Productivity | 25m³/h | 35m³/h | 50m³/h | 60m³/h | 75m³/h | 90m³/h | 120m³/h | 180m³/h |
Mixing Host Model | J5500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 |
Mixing Host Power | 18.5kW | 30kW | 37kW | 2×18.5kW | 44kW | 60kW | 2×37kW | 2×55kW |
Cycle Period | 72s | 72s | 60s | 60s | 60s | 60s | 60s | 60s |
Blender Nominal Capacity | 500L | 750L | 1000L | 1000L | 1500L | 1500L | 2000L | 3000L |
Maximum Aggregate Size | φ80mm | φ80mm | φ80mm | φ80mm | φ80mm | φ80mm | φ80mm | φ80mm |
Ingredient Capacity | 800L | 1600L | 100m³/n | 100m³/n | 150m³/n | 150m³/n | 3200L | 300m³/h |
Aggregate Bin Capacity | 6m³×3 | 6m³×3 | 6m³×3 | 6m³×4 | 12m³×3 | 12m³×4 | 18m³×4 | 25m³×4 |
Types of Aggregates | 3 | 3 | 4 | 3 | 4 | 4 | 4 | 4 |
Aggregate Productivity | 100m³/h | 100m³/h | 100m³/h | 100m³/h | 150m³/h | 150m³/h | 200m³/h | 300m³/h |
Spiral Productivity | 40t/h | 40t/h | 40t/h | 40t/h | 40t/h | 65t/h | 65t/h | 120t/h |
Discharge Height | 3.8m | 3.8m | 3.8m | 4m | 4m | 4m | 4m | 4m |
Installed Capacity | 65kW | 65kW | 120kW | 120kW | 150kW | 165kW | 210kW | 295kW |
