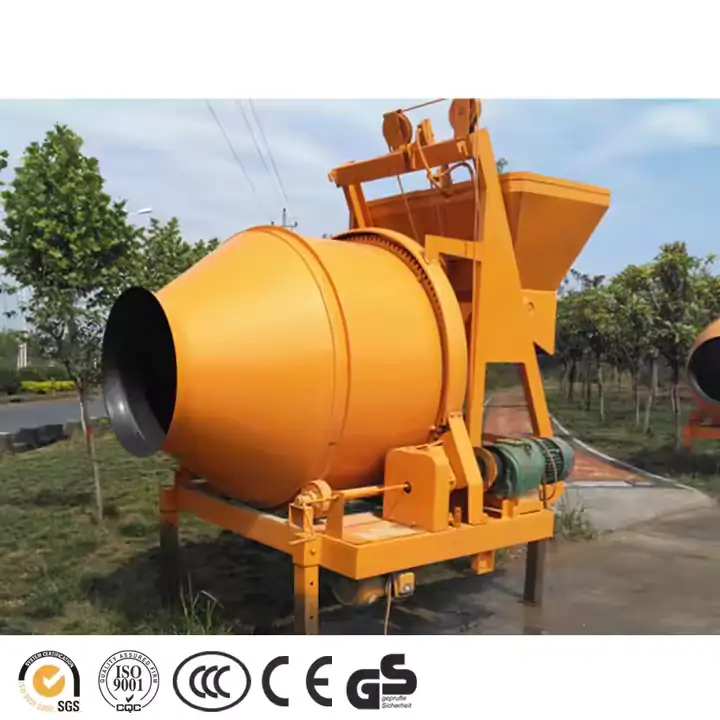

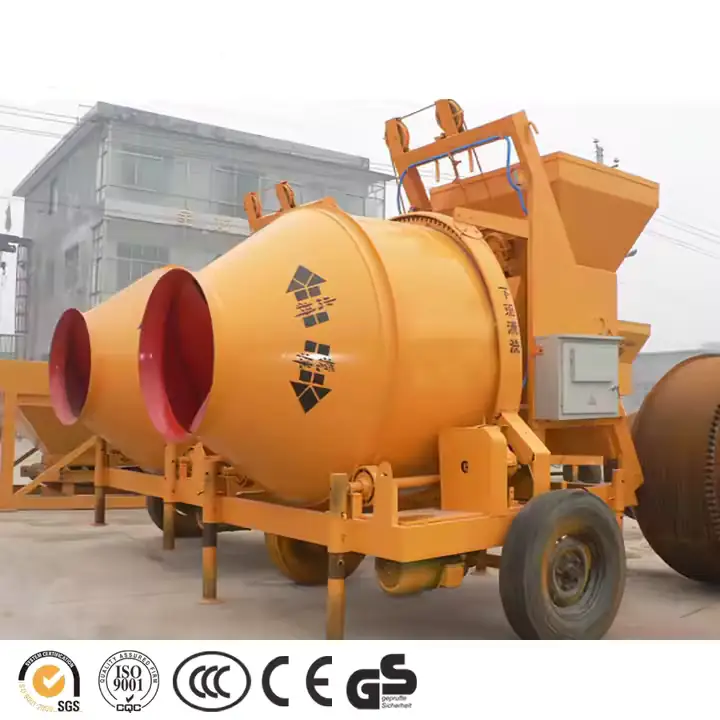

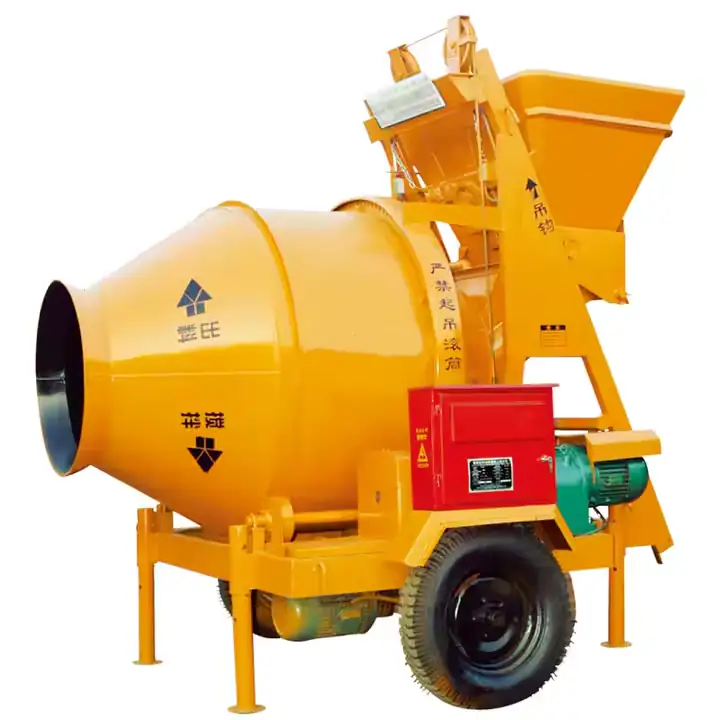

Automatic Industrial Electric Concrete Mixer




Automatic Industrial Electric Concrete Mixer
Built for high-efficiency and durability, this automatic concrete mixer is ideal for construction sites, precast plants, and industrial projects. Powered by a robust electric motor, it ensures consistent mixing performance with minimal maintenance. Designed for productivity, it features automatic feeding, precise water control, and powerful twin-shaft or drum mixing systems to produce high-quality concrete fast. Easy to operate, safe, and energy-efficient — a smart choice for serious concrete production.
Specifications
Model | Feed Capacity | Discharge Capacity | Productivity | Mixing Motor | Lifting Motor | Pump Motor | Max Particle Size | Overall Dimensions (L×W×H) |
---|---|---|---|---|---|---|---|---|
350 | 560L | 350L | 16–18 m³/h | 5.5kW | 4.5kW | 0.55kW | 40–60mm | 3800×1800×2690 mm |
500 | 800L | 500L | 18–20 m³/h | 2×5.5kW | 4.5kW | 1.1kW | 60–80mm | 3000×1800×3000 mm |
750 | 1200L | 750L | 30–35 m³/h | 2×7.5kW | 7.5kW | 1.1kW | 60–80mm | 5200×2100×3300 mm |
1000 | 1600L | 1000L | 45–50 m³/h | 2×11kW | 7.5kW | 1.1kW | 60–80mm | 5200×2100×3300 mm |
1500 | 2200L | 1500L | 50–60 m³/h | 2×11kW | 7.5kW | 1.1kW | 60–80mm | 5500×2200×3500 mm |
2000 | 2700L | 2000L | 60–65 m³/h | 2×15kW | 11kW | 1.1kW | 60–80mm | 6000×2500×4500 mm |
