Concrete Pavement Cutting Saw Machine

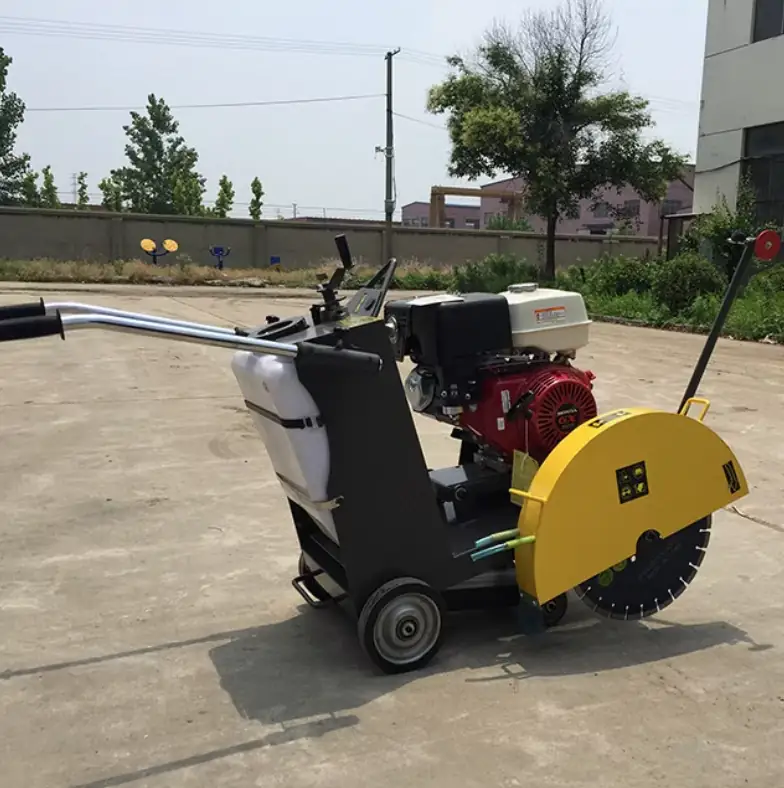

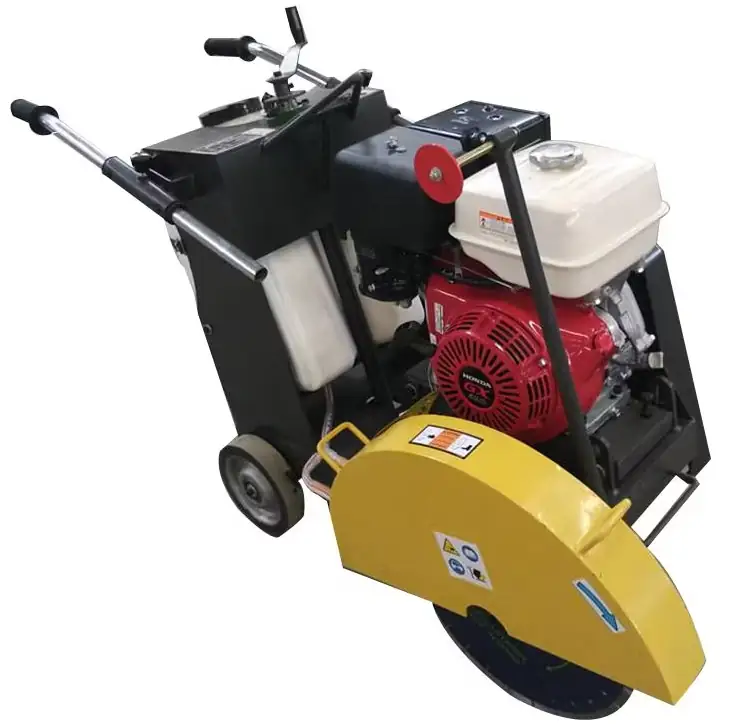

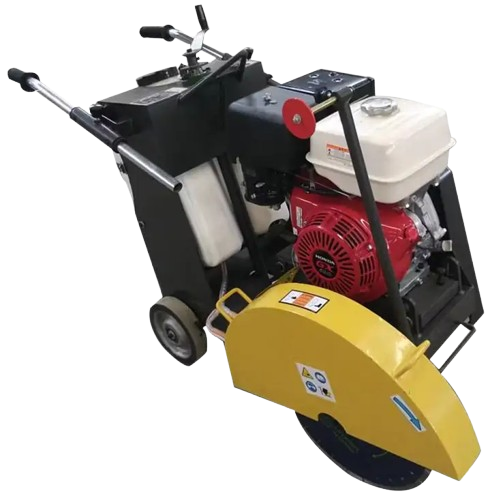

Concrete Pavement Cutting Saw Machine
Engineered with the operator in mind, this concrete cutting saw combines robust performance with exceptional ease of use. Its adjustable handles are designed to offer a closer, more natural working position on the cutting side, helping operators maintain precise alignment and achieve straighter cuts with less effort. When not in use, the handle folds down easily for convenient transport and storage.
Equipped with a large integrated water tank, the machine includes a quick-connect water hose system attached directly to the blade guard—no tools required for disassembly, making it fast and hassle-free to set up or maintain on site.
Despite its durable and compact design, the saw boasts low vibration technology. Its advanced engine and blade shaft mounting system significantly reduces operator fatigue while delivering a smooth, high-performance cutting experience.
To support accuracy during operation, an adjustable and clearly visible depth indicator is conveniently located on the side of the cutter, allowing users to monitor cutting depth at a glance.
Specifications
Specification | Concrete Cutting Saw |
---|---|
Model No | HQ-420 |
Cutting Depth | 150 mm |
Rotary Speed | 3600 rpm |
Power | 9700 W |
Weight | 142 kg |
Dimensions (L × W × H) | 1050 × 550 × 880 mm |
Certification | CE, ISO 9001 |
Power Source | Gasoline |
Running Speed | 10 m/min |
Water Tank Capacity | 40 L |
HS Code | 8431499900 |
