Disc Harrow


Disc Harrow

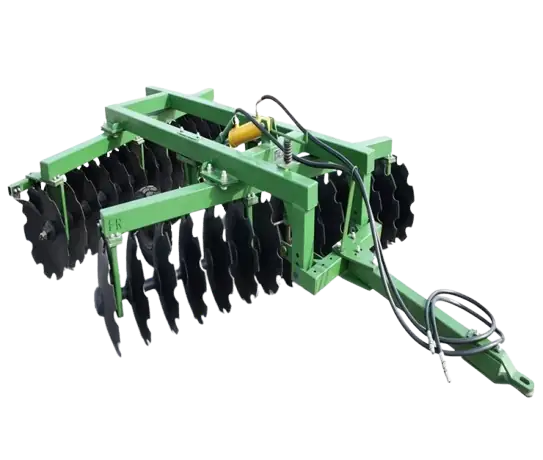

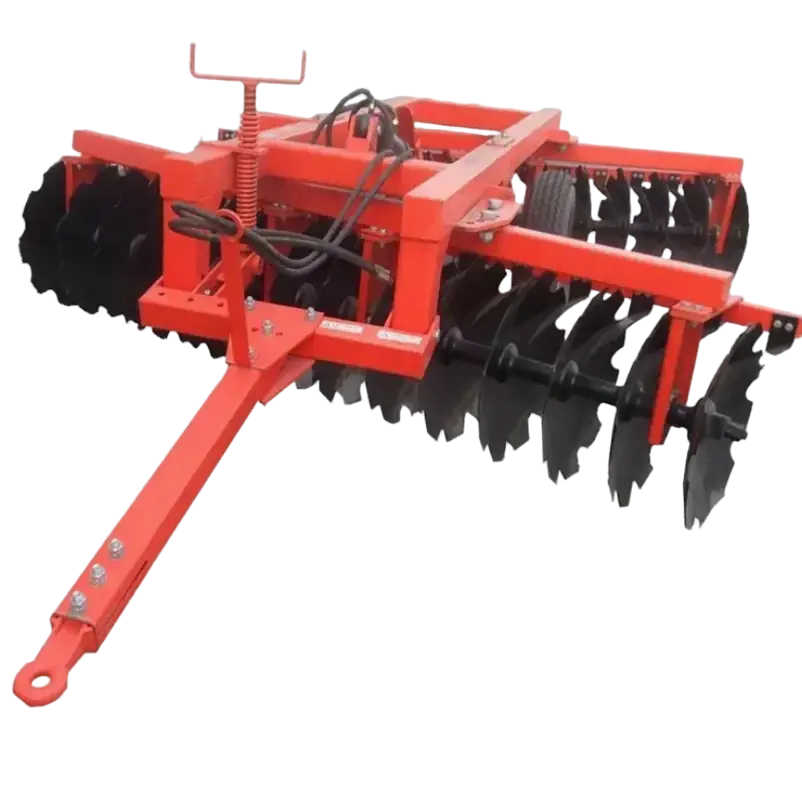

The Disc Harrow is a versatile and durable agricultural tool designed for cleaning away stubble, crushing clods, and preparing soil in a variety of field conditions. Ideal for uncultivated land and sticky heavy clay soil, it can also serve as a primary tillage plough in dry cultivated fields. Equipped with a hydraulic rubber wheel system, it ensures easy transportation and smooth direction changes at the field’s edge, delivering high efficiency, low labour demands, and reliable performance for professional farming needs.
Built for strength and longevity, the Disc Harrow is engineered to withstand tough working conditions while maintaining consistent results. Its robust frame and high-quality discs penetrate the soil efficiently, breaking it down into a fine tilth ready for planting. The hydraulic lifting mechanism allows seamless transitions between working and transport modes, saving both time and effort. Whether you’re preparing fields after harvest, incorporating crop residues, or managing heavy soils, this machine offers exceptional versatility and productivity, making it an indispensable piece of equipment for modern farms.
Specifications
Specification | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-3.9 | 1BZ-4.4 | 1BZ-5.3 | 1BZ-6.2 |
---|---|---|---|---|---|---|---|---|---|
Overall Size (cm) | 480×200×134 | 482×244×134 | 532×288×134 | 532×332×134 | 582×376×134 | 582×418×136 | 582×465×136 | 716×288×150 | 750×656×150 |
Weight (kg) | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 | 2400-2450 | 2600-2650 | 3250-3300 | 3750-3800 |
Working Width (m) | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 | 3.9 | 4.4 | 5.3 | 6.2 |
Quantity of Discs (pc) | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 48 | 56 |
Productivity (ha/h) | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 | 2.4 | 3.0 | 4.0 | 5.0 |
Matched Power (hp) | 65-80 | 75-90 | 80-100 | 90-100 | 100-120 | 120-150 | 130-150 | 150-180 | 160-180 |
Working Depth (cm) | 20 | ||||||||
Disc Space (mm) | 230 | ||||||||
Diameter of Disc (mm) | 660 | ||||||||
Ground Clearance (mm) | >160 | ||||||||
Linkage | Trailed | ||||||||
Certification | ISO9001:2000 | ||||||||
HS Code | 8432809000 |
