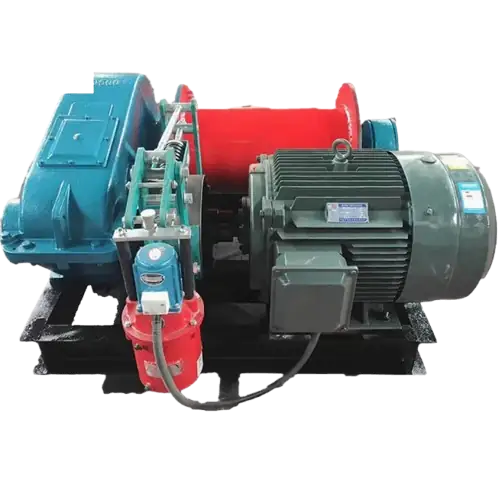

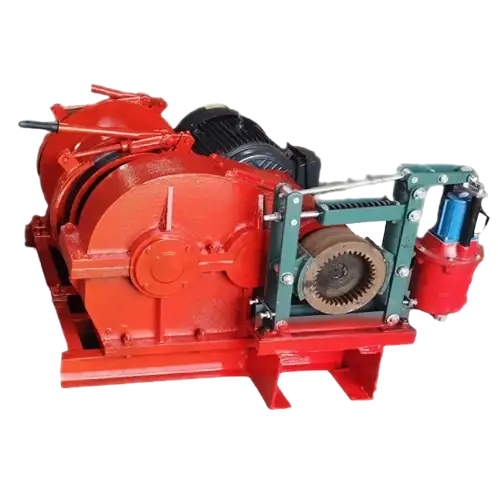

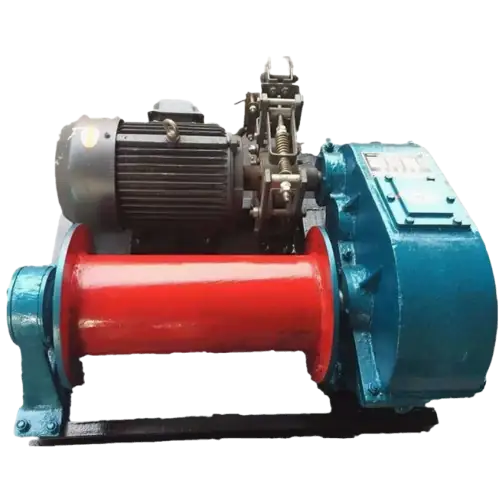

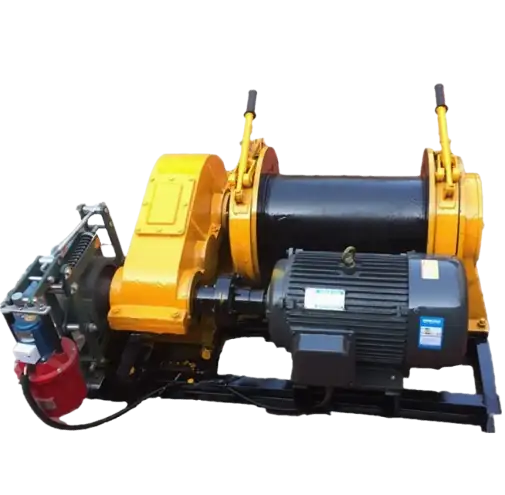

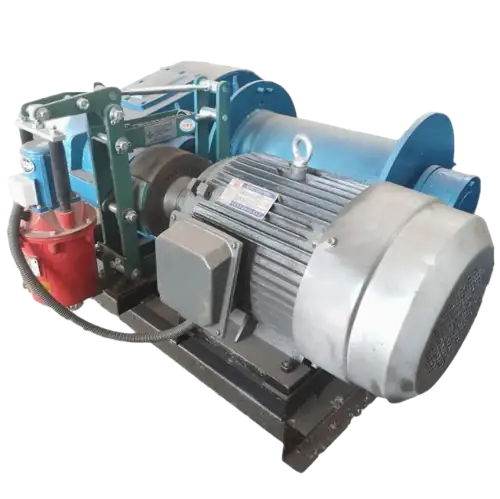

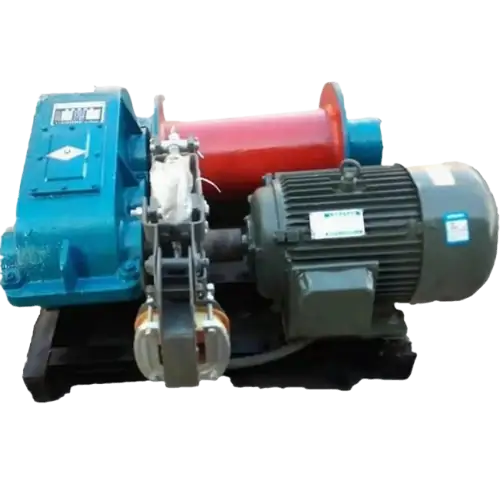

Electric Power Hydraulic Windlass Winch for Lifting and Pulling






Electric Power Hydraulic Windlass Winch for Lifting and Pulling
The electric winch is a compact and efficient lifting device designed to move heavy loads with ease. Commonly used in construction, workshops, and industrial settings, it operates using a motor-driven reel that winds steel wire rope or chain to lift, pull, or position objects. This type of hoist supports vertical, horizontal, and angled operation, making it ideal for diverse handling needs.
Equipped with an electromagnetic or hydraulic braking system, the winch offers smooth control, stable power, and enhanced safety. It is a reliable solution for medium-capacity lifting, combining strength, durability, and simple operation in one efficient machine.
Specifications
Specification | JM-1T | JM-2T | JM-3T | JM-5T |
---|---|---|---|---|
General Information | ||||
Type | Electric Winch | |||
Driven Type | Hydraulic | |||
Speed | Slow | |||
Carrying Capacity | Middle-Level | |||
Reel Number | 1 | |||
Running Mode | Moving | |||
Feature | Insulating | |||
Certification | ISO 9001 | |||
Standard | National Standards | |||
Colour | Customisable | |||
Condition | New | |||
Overall Dimensions (L×W×H) | 1350×650×950 mm | |||
Technical Specifications | ||||
Voltage | 380V | 380V | 380V | 380V |
Power | 7.5kW | 11kW | 15kW | 22kW |
Braking Mode | Electromagnetic | Electromagnetic | Hydraulic | Hydraulic |
Maximum Lifting Capacity | 1000 kg | 2000 kg | 3000 kg | 5000 kg |
Tonnage | 1 tonne | 2 tonnes | 3 tonnes | 5 tonnes |
