Construction Machineries

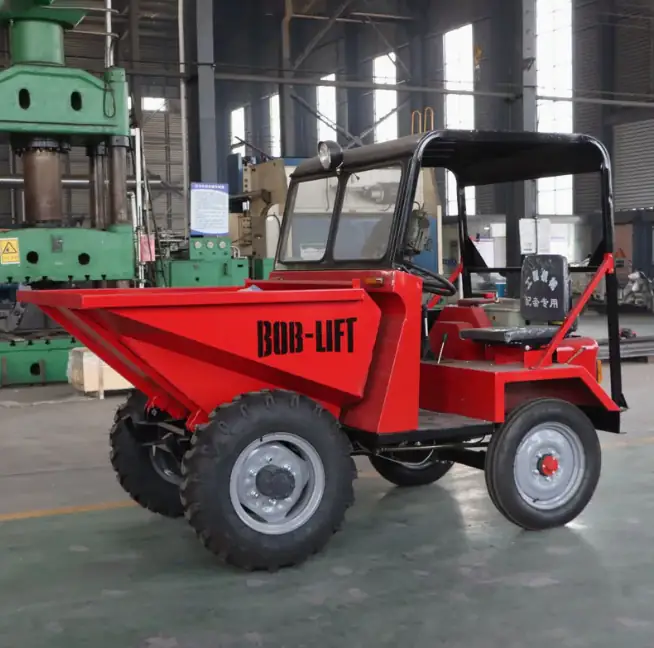

Front dumper




Front dumper
The small dump truck is equipped with a direct injection engine that ensures high power transmission efficiency, contributing to strong and reliable performance. The hopper adopts a gravity discharge system, which simplifies operation and enhances overall usability. Thanks to its compact build, efficient dumping mechanism, and comfortable handling, the small dump truck has become a highly valued asset in urban construction and landscaping projects. Its versatility allows it to adapt to various working environments, improving both productivity and user convenience.
One of its key advantages is the compact body design, which enables smooth manoeuvring in confined or narrow workspaces. This makes it particularly useful in urban settings or locations with limited access.
The truck also features an efficient hydraulic dumping system designed for rapid and smooth unloading. The angle and capacity of the dump bucket are optimised to accommodate a range of materials—such as soil, gravel, and construction debris—making it suitable for diverse tasks across the construction and landscaping sectors.
In terms of power, the truck is fitted with a high-performance engine that delivers stable output across varying terrains and load conditions. This robust power system ensures dependable performance, even in challenging environments.
Safety is another priority, with the inclusion of features like an anti-overturning mechanism and a stability control system. These additions significantly reduce operational risks, helping to protect both the operator and nearby personnel during use.
Finally, the truck offers flexible loading and unloading capabilities. Its compartment is specially designed for quick and convenient handling of different types of cargo. This design not only increases load capacity but also streamlines operations, saving time and effort on site.
Specifications
Specification | Mini Dumper |
---|---|
Model No. | FC10 |
Type | Small Loader / Mini Dumper |
Rated Load | 1000 kg (1–3t) |
Bucket Volume | 0.5 m³ |
Discharge Height | 150 mm |
Load and Unload Mode | Front Discharge |
Transmission | Hydraulic – Mechanical |
Walking Mode | Wheeled |
Maximum Gradient | 21% |
Minimum Turning Radius | 4000 mm |
Overall Dimensions (L×W×H) | 2700 × 1700 × 1480 mm |
Wheelbase | 1500 mm |
Thread | 1230 mm |
Minimum Ground Clearance | 200 mm |
Net Weight | 1000 kg |
Rated Power | 12.1 kW |
Rated Speed | 2200 r/min |
Certification | ISO, CE |
Condition | New |
HS Code | 8428909090 |
Colour | Yellow, Red, Black |
