Construction Machineries

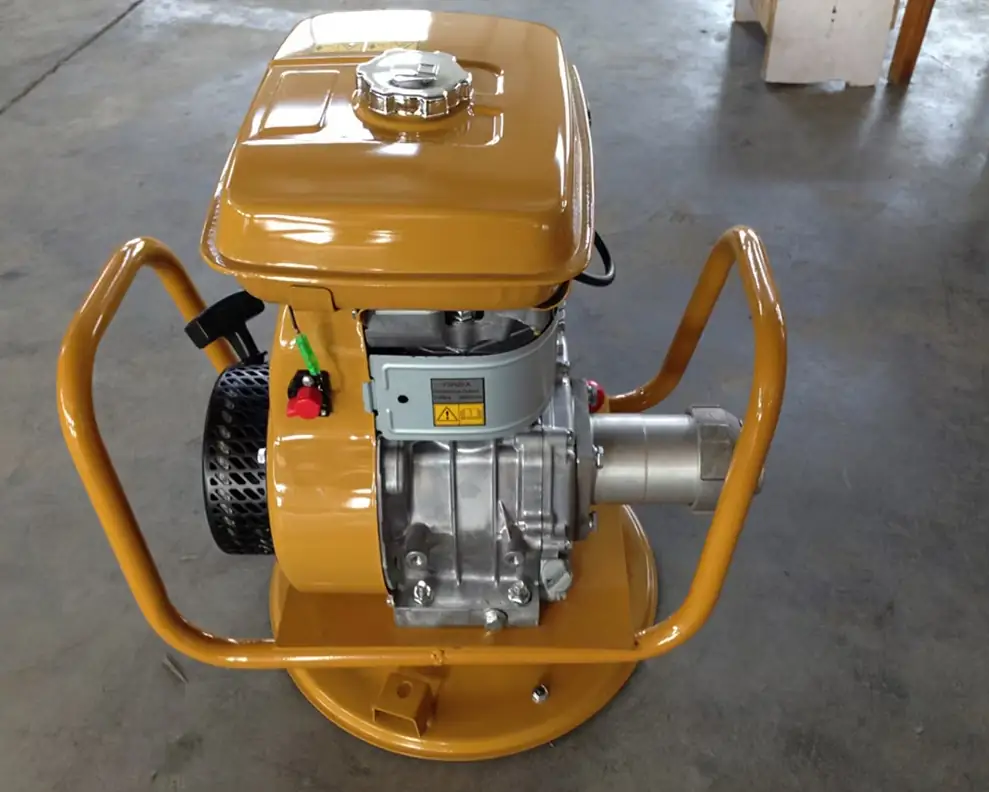

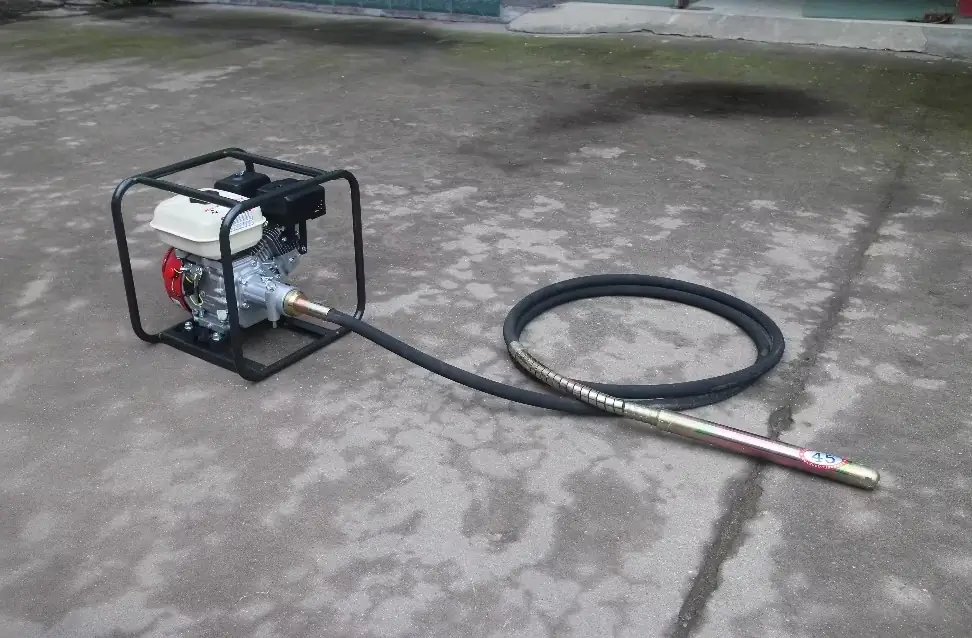

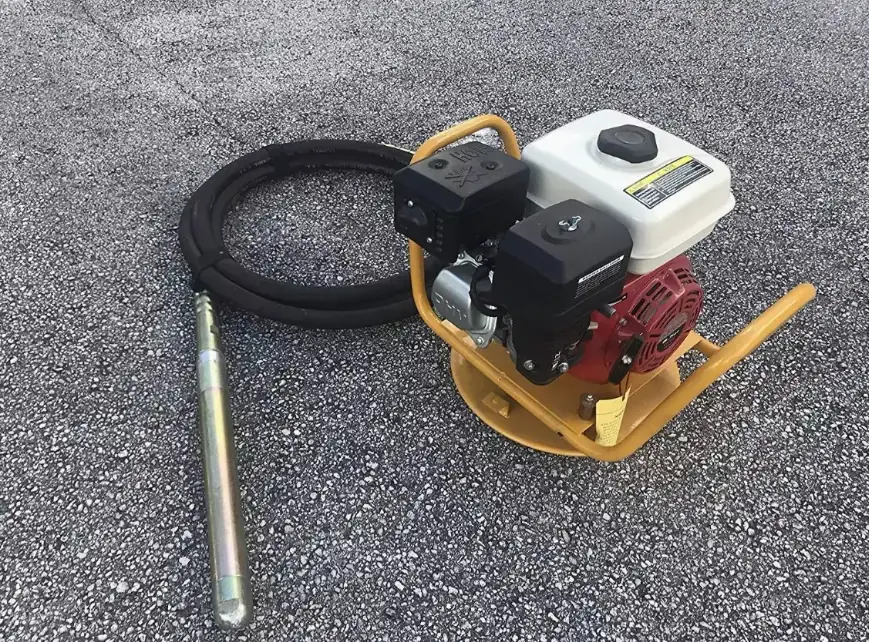

Gasoline Concrete Vibrator



Gasoline Concrete Vibrator
The gasoline-powered concrete vibrator, when used together with a concrete vibrator shaft, is an essential tool for ensuring optimal concrete compaction across a wide range of construction projects. Engineered for reliability and high efficiency, this machine is particularly well-suited for commodity concrete applications and is extensively used in both civil and industrial engineering.
Its robust design and powerful vibration output make it ideal for:
-
Bridge and harbour construction
-
Large-scale dam and water conservancy projects
-
Hydropower plant foundations
-
High-rise building column and beam casting
-
Poured concrete walls reinforced with dense steel mesh
-
Medium and small-sized structural works
With its high vibration frequency and strong penetration ability, the gasoline concrete vibrator effectively eliminates air bubbles, increases concrete density, and improves the structural strength and finish quality of the concrete. It is especially beneficial for use in remote sites or outdoor environments where electricity is not readily available.
This machine is the professional’s choice for durable, versatile, and high-performance concrete vibration in the most demanding construction environments.
Specifications
Specification | Gasoline Engine Concrete Vibrator |
---|---|
Item | Gasoline Engine Vibrator |
Model | MC-R / MC-H |
Engine Model | Robin EY20 / Honda GX160 (5.5hp) |
Engine Type | 4-Stroke, 25° Single-Cylinder, Air-Cooled |
Bore × Stroke | 67 × 52 mm |
Displacement | 183 cm³ |
Compression Ratio | 8.5:1 |
Max Power | 5 hp / 3600 rpm |
Recommended Operating Power | 3.5 hp / 3600 rpm |
Fuel Tank Capacity | 3.8 L |
Fuel Consumption | 230 g/hp·hr (313 g/kWh) |
Packing Size (L × W × H) | 51 × 39 × 51 cm |
Net / Gross Weight | 20 kg / 22 kg |
Productivity | 240 m²/h |
Feeding Height | 6 metres |
Vibrating Amplitude | 1.4 mm |
Vibration Speed | 2500–3500 rpm |
Length | 4–20 metres |
Steel Wire | Stainless Steel Wire |
Colour | Customised as per request |
Certification | ISO9001:2000, CE |
Condition | New |
HS Code | 84679910 |
