Industrial Tools

Household outdoor diesel generator

Household outdoor diesel generator

Household outdoor diesel generator

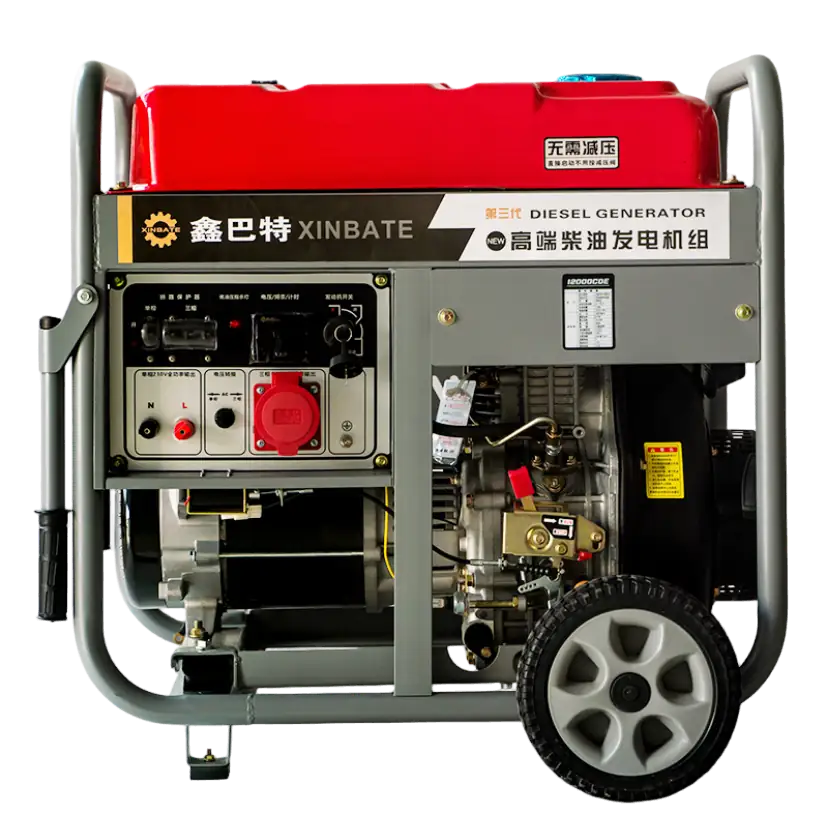

Household Outdoor Diesel Generator – Your reliable power solution for home backup and outdoor use. Engineered for durability, efficiency, and versatility, this generator comes with customisable features including Hand Start or Electric Start, Automatic Transfer Switch (ATS) for instant backup power, and LPG Dual Fuel or Tri-fuel capability for extended run times.



Add wheel kits or handrails for easy mobility, configure DC output to your exact needs, and choose single-phase or three-phase for your application. Built to deliver consistent performance, low-maintenance operation, and power when you need it most – this is the ultimate generator for any household or outdoor setup.

Specifications

Specification Model 3300E Model 4400E Model 5500E Model 6600E Model 7700E
Frequency (Hz) 50 / 60 60 / 50 60 / 50 60 / 50 60 / 50
Rated AC Output (kW) 2.0 / 2.2 3.0 / 3.5 4.0 / 4.5 5.0 / 5.5 5.5 / 6.0
Max. AC Output (kW) 2.2 / 2.5 3.5 / 4.0 4.5 / 5.0 5.5 / 6.0 6.0 / 6.5
Rated AC Voltage (V) 220/380 / 110 220/380 / 110 220/380 / 110 220/380 / 110 220/380 / 110
Power Factor (cos φ) 1.0
DC Output (V) 12V / 8.3A
Phase Single Phase / Three Phase
Alternator Self-excited, 2-pole, single phase alternator
Starting System Recoil or Electric
Noise Level dB (at 7m) 73-78 73-78 76-78 76-78 76-78
Fuel Tank Capacity (L) 12.5
Continuous Running Time (h) 13 / 12 9 / 8 8 / 7 7 / 6 6 / 5
Diesel Engine Model WX170F WX178F WX186F WX188F WX192F
Engine Type Single-cylinder, Vertical, 4-stroke air-cooled Diesel Engine
Displacement (cc) 211 296 406 406 406
Fuel 0# or -10# Light Diesel Oil
Bore x Stroke (mm) 70 x 55 78 x 62 86 x 70 86 x 70 86 x 72
Lubrication Oil Volume (L) 0.75 1.1 1.65 1.65 1.65
Combustion System Direct Injection
Package Dimension (L x W x H) (mm) 675 x 495 x 550 675 x 495 x 550 755 x 495 x 610 755 x 495 x 610 755 x 495 x 610
Net Weight (Kg) 65 70 103 106 106
20GP/40GP Container Capacity 128 / 272 pcs 128 / 272 pcs 84 / 180 pcs 84 / 180 pcs 84 / 180 pcs
Dimensions 755 x 495 x 610 mm
HS Code 85022000
