Paddy field Disc Plough


Paddy field Disc Plough

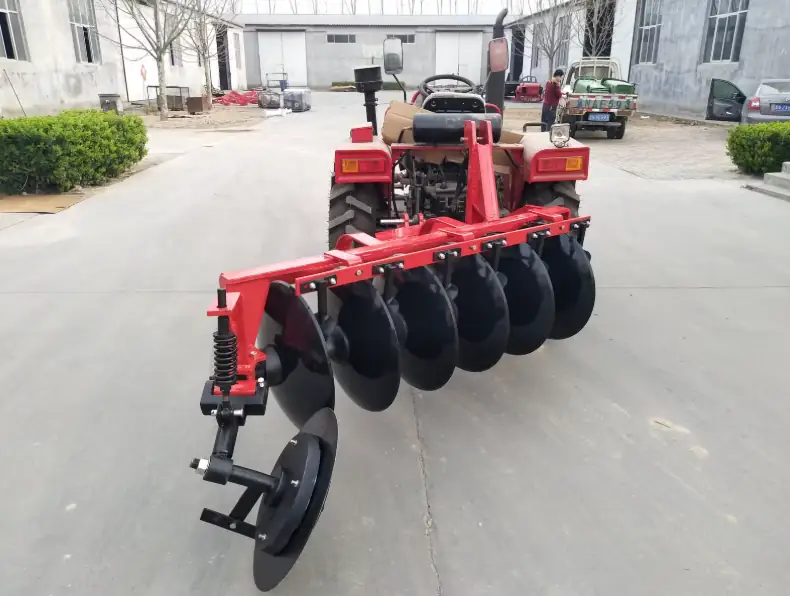

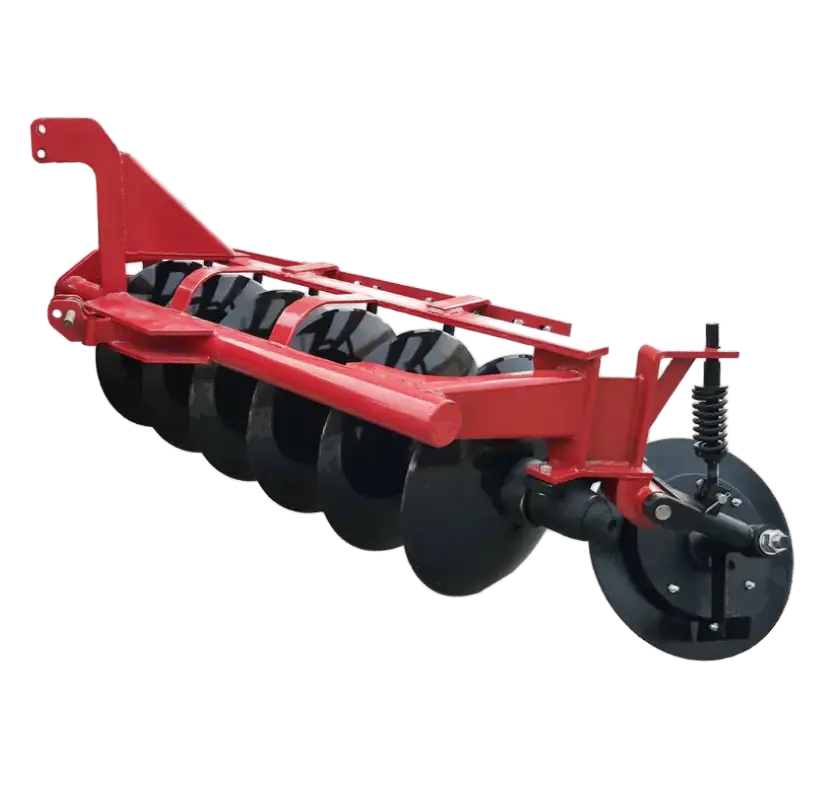

This tractor paddy disc plough is specially designed for paddy fields but also works effectively on dry land. It efficiently turns up the soil, creating neat lines and leveling the field. Wheat and rice stubble, as well as Chinese milk vetch, are buried and decomposed quickly, enriching the soil with organic fertilizer. The machine saves time and labour, offers high working efficiency, and reduces overall costs.
Built to strong and durable standards, it features a three-point standard linkage for easy tractor attachment, simple adjustments, and low maintenance. The carbon dioxide jig welding ensures robust construction. Unlike traditional rotary-driven disc ploughs that rely on gear drives prone to breakdowns, this new design eliminates that weak point for improved reliability. All parts are reinforced for greater strength and stability during operation, making it a superior choice for efficient, long-lasting fieldwork.
Specifications
Specification | 1LYA-5-22/24 | 1LYA-6-22/24 | 1LYA-7-22/24 | 1LYA-8-22/24 |
---|---|---|---|---|
Product Name | Precision Paddy Disc Plough | |||
Working Width (mm) | 1100-1200 | 1200-1300 | 1300-1400 | 1500-1600 |
Working Depth (mm) | 150-220 | |||
No. of Discs | 5 | 6 | 7 | 8 |
Total Weight (kg) | 400 | 430 | 485 | 530 |
Matched Power (hp) | 40-50 | 60-80 | 70-100 | 120-140 |
Linkage | Tractor Three-point Suspension II Type | |||
HS Code | 84321000 | |||
Suitable Land | Paddy Field, Dry Land | |||
Certification | ISO9001-2008 | |||
Power Source | Diesel |
