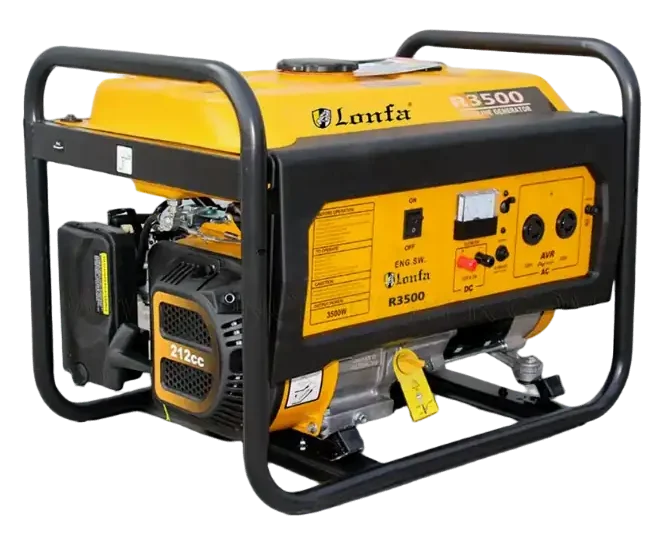

Portable Gasoline Generator

Portable Gasoline Generator

Compact yet powerful, this mini silent petrol generator delivers reliable performance wherever you need it. Built with our self-made, rigorously tested engine, it offers exceptional durability and an unbeatable performance-to-price ratio. Choose from hand start (recoil) or key start with battery. A low-noise muffler ensures quiet operation, with a motorcycle silencer option available.



Premium components include a cast iron camshaft, high-quality carburettor, A++ grade piston, and best-in-class crankcase, all secured with galvanised screws. Available in single or three-phase, with optional volt-meter, T-meter, and protective double panel. Finished in any colour of your choice and packed in strong, foam-lined cartons with wood reinforcement for safe delivery.



Perfect for home backup, outdoor work, and leisure use — silent, portable, and built to last.

Specifications

Specification Model 1 Model 2 Model 3 Model 4 Model 5 Model 6 Model 7
Product Name 1.5–8 kW Gasoline Generator
Keyword Portable Petrol Generator
Rating Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
Rating Voltage (V) 110 / 120 / 220 / 230 / 240
Rated Power (kVA) 1.5 1.8 2.0 2.5 3.0 2.7 2.8
Max. Power (kVA) 1.7 2.0 2.2 2.7 3.5 3.0 3.0
Power Factor (cos φ) 1.0
Engine Type 168F 168F-1 170F 177F 182F 188F 190F
Model (HP) 5.5HP 6.5HP 7.0HP 9.0HP 11.0HP 13.0HP 15.0HP
Category Single crock, Force air-cooled, 4-stroke, top-installed gasoline engine
Cylinder Displacement (cc) 163 196 212 270 337 389 407
Max. Output Power (kW / rpm) 4.8 / 3600 4.8 / 3600 5.7 / 3600 7.0 / 3600 8.0 / 3600 9.5 / 3600 11.0 / 3600
Ignition System Transistorized magneto
Start System Recoil / E-start
Fuel Tank Capacity (L) 15 15 15 25 25 25 25
Fuel Consumption (L/h) 1.02 1.13 1.32 1.90 2.45 2.70 2.95
Continuous Working Time (h) 13 13 11 13 10 9 8
Noise @ 7m (dB) 65 65 65 69 72 74 78
Engine Oil Capacity (L) 0.6 1.1
Dimensions (mm) 615×435×455 615×435×455 615×435×455 620×470×480 635×510×485 670×510×510 692×522×545
Net Weight (kg) 37.5 39 45 62 78 80 85
Standard Equipment Large capacity fuel tank, large capacity muffler, fuel gauge, voltmeter, AVR, oil alert, AC circuit breaker
