Reverse Osmosis Water Treatment System
Reverse Osmosis Water Treatment System

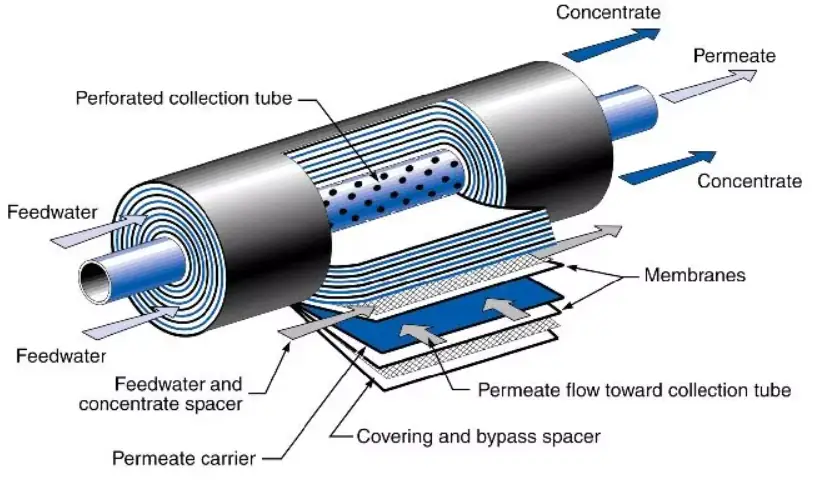

The Reverse Osmosis (RO) Membrane system represents one of the most advanced and energy-efficient water purification technologies available today. With an impressive filtration accuracy of 0.001 μm, it effectively removes a wide range of impurities including soluble salts, colloids, organics, microorganisms, viruses, bacteria, rust, and heavy metals. By applying pressure, pure water is forced through the membrane, leaving contaminants behind, ensuring that the output is of the highest purity. This system is ideal for anyone seeking safe, clean, and reliable water for domestic, commercial, or industrial use.

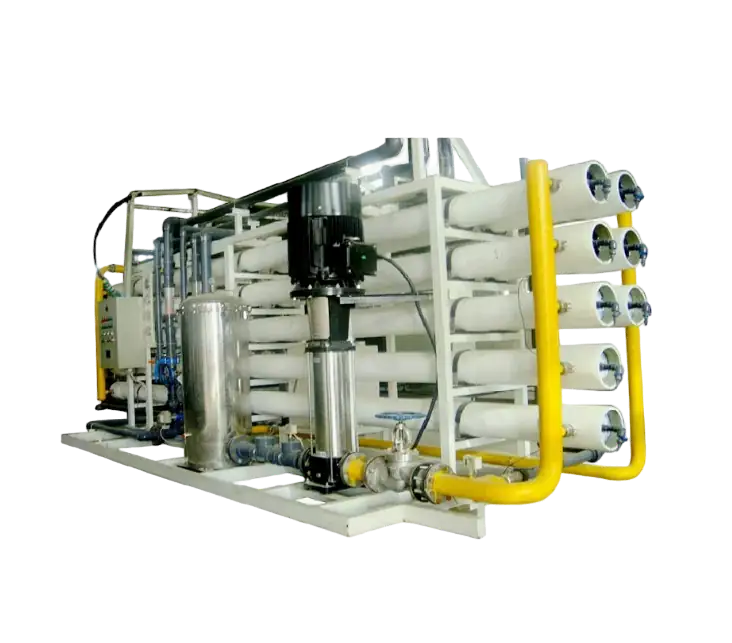

Our XST Reverse Osmosis Water Treatment System is equipped with a comprehensive pre-treatment process that includes quartz sand filtration, activated carbon filtering, water softening, and security filters before water reaches the RO membrane. This multi-stage treatment significantly enhances the membrane’s lifespan and performance by removing larger particles and reducing hardness. The system achieves an impressive salt and bacteria removal rate of 97%-99%, delivering consistently pure, safe water suitable for various applications. For optimal results, especially with hard or heavily contaminated water, pre-treatment is essential to ensure efficient operation and long-lasting membrane durability.

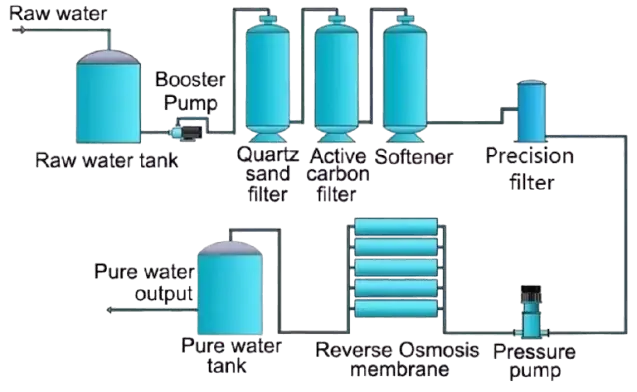

Process flow
| Main Parts Included | ||
|---|---|---|
| S/N. | Process | Application |
| 1 | Raw water tank | Store water, buffer pressure, overcome supply instability, ensure stable continuous water supply (Customer provides due to large size and freight cost) |

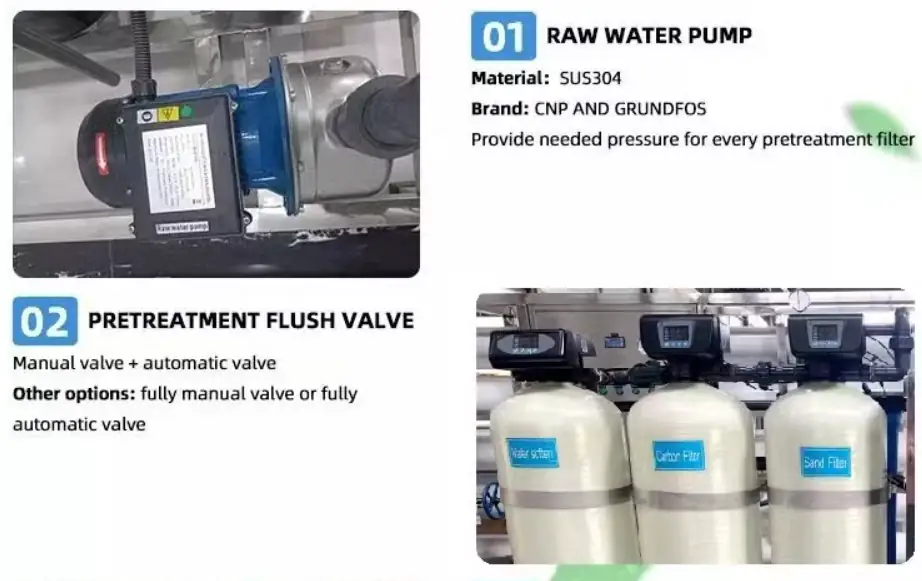

| 2 | Raw water pump / booster pump | Provide required pressure for pretreatment filters |

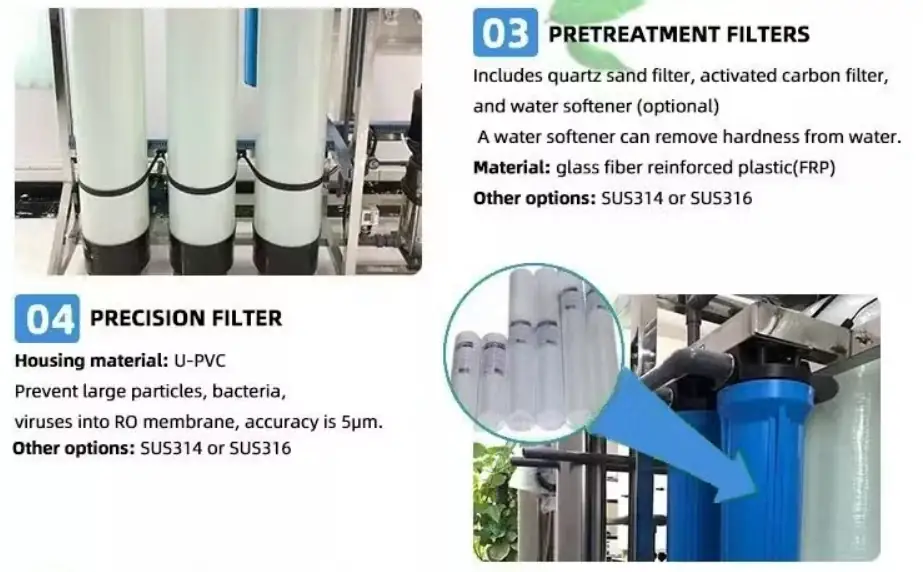

| 3 | Quartz sand filter / Mechanical filter | FRP or stainless steel housing filled with quartz sand to filter large particles, suspended substances, colloids |
| 4 | Activated carbon filter | FRP or stainless steel housing filled with activated carbon to remove colour, odour, residual chlorine and organic substances |
| 5 | Water softener / demineralizer / Na+ exchanger | Cation resin absorbs Ca²⁺, Mg²⁺ to reduce hardness; system allows intelligent resin regeneration and recycling |
| 6 | Security filter / PP filter | Prevents large particles, bacteria, viruses entering RO membrane; filtration accuracy 5 μm |

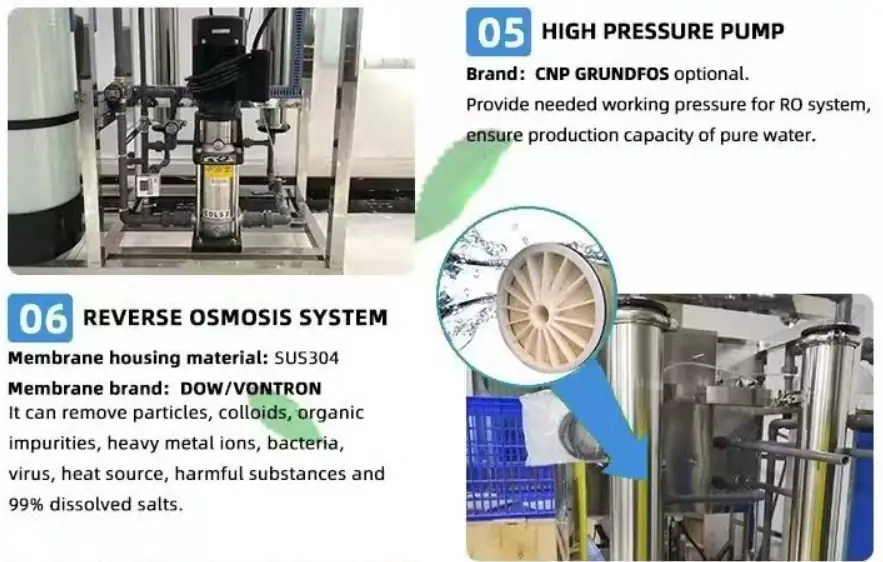

| 7 | High pressure pump | Provides necessary working pressure for RO system, ensures pure water production (CNP pump or customer-specified) |
| 8 | Reverse osmosis (RO) system | Removes particles, colloids, organics, heavy metals, bacteria, viruses, heat sources and 99% dissolved salts (RO membranes by USA Filmtec, Toray, LG, Vontron or customer-specified) |
| 9 | Electrical control cabinet | Automatic control with Relay / PLC / HMI options |
Specifications
| Specification | XSTRO-0.25T | XSTRO-0.5T | XSTRO-0.75T | XSTRO-1 | XSTRO-2 | XSTRO-3 | XSTRO-5 | XSTRO-10 | XSTRO-15 | XSTRO-20 | XSTRO-30 | XSTRO-40 | XSTRO-50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (T/H) | 0.25 | 0.5 | 0.75 | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Operation (MPa) | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 | 1.0-1.4 |
| Feed Inlet (MM) | DN20 | DN20 | DN25 | DN25 | DN25 | DN32 | DN40 | DN50 | DN50 | DN65 | DN80 | DN100 | DN125 |
| Membrane Size (Inch) | 40×40 | 40×40 | 40×40 | 40×40 | 40×40 | 40×40 | 80×40 | 80×40 | 80×40 | 80×40 | 80×40 | 80×40 | 80×40 |
| Membrane Qty | 1 | 2 | 3 | 4 | 8 | 12 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Desalination | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Recovery | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% | 60-80% |
| Power (KW) | 2 | 2.5 | 3 | 3.3 | 4.5 | 8 | 16 | 22 | 32 | 42 | 55 | 65 | 65 |
| HS Code | 842121 | ||||||||||||
| Dimensions (m) | 3.7 × 1.5 × 2.1 | ||||||||||||
