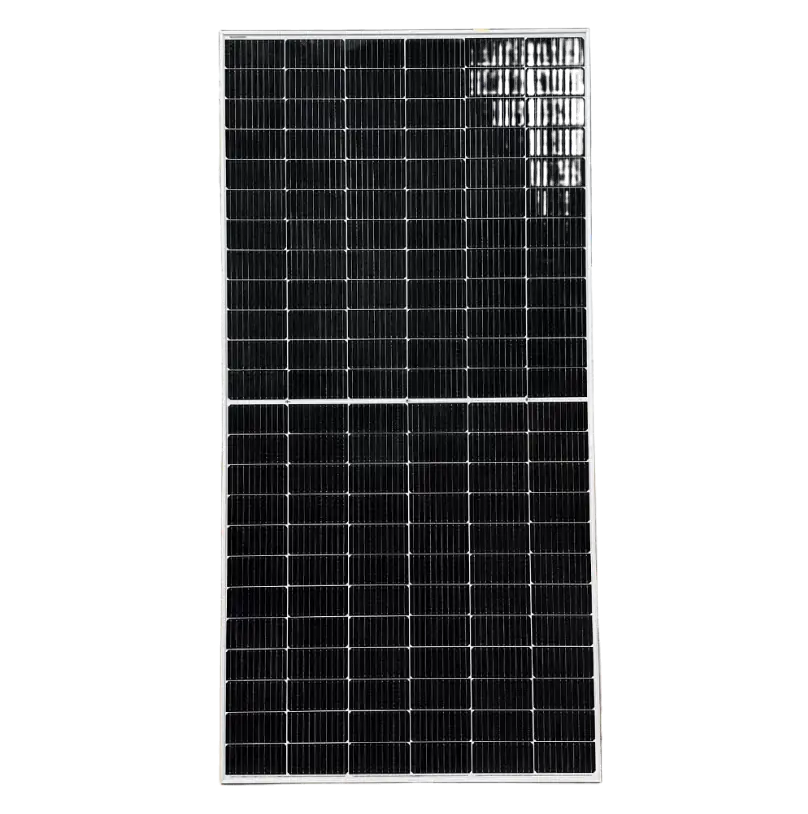

Solar panel

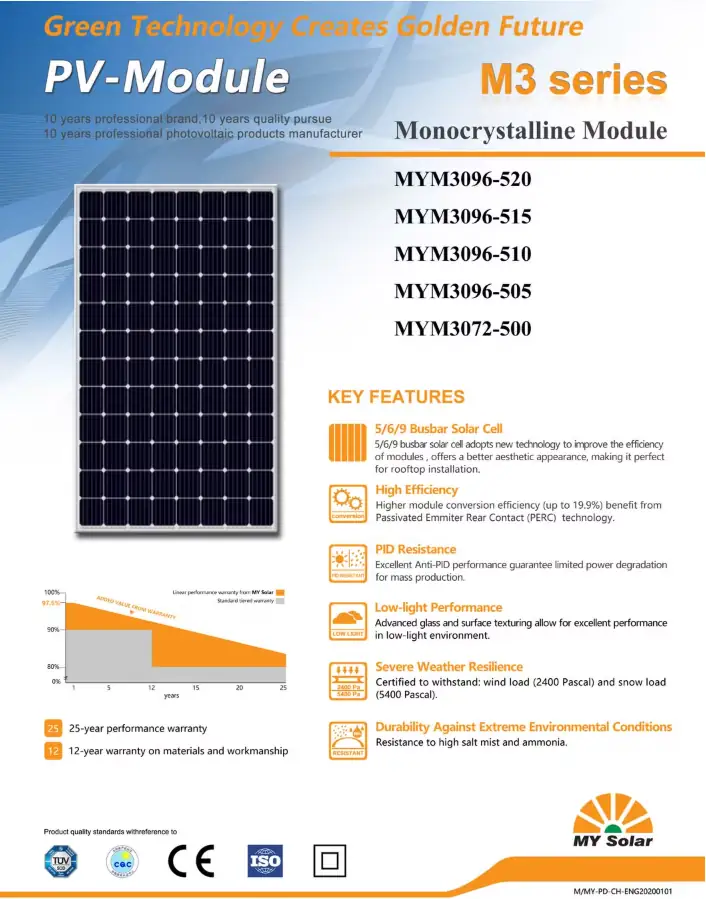

The 5/6/9 busbar solar cell adopts advanced technology to enhance module efficiency while delivering an attractive, uniform appearance—making it an ideal choice for rooftop installations.

With a higher conversion efficiency of up to 19.9%, thanks to Passivated Emitter Rear Contact (PERC) technology, these modules provide superior energy output. They also offer excellent Anti-PID performance, ensuring minimal power degradation in large-scale production.

The use of advanced glass and surface texturing enables outstanding performance even in low-light conditions. Certified for durability, the modules withstand wind loads of up to 2400 Pascal and snow loads of up to 5400 Pascal, with proven resistance to high salt mist and ammonia corrosion.

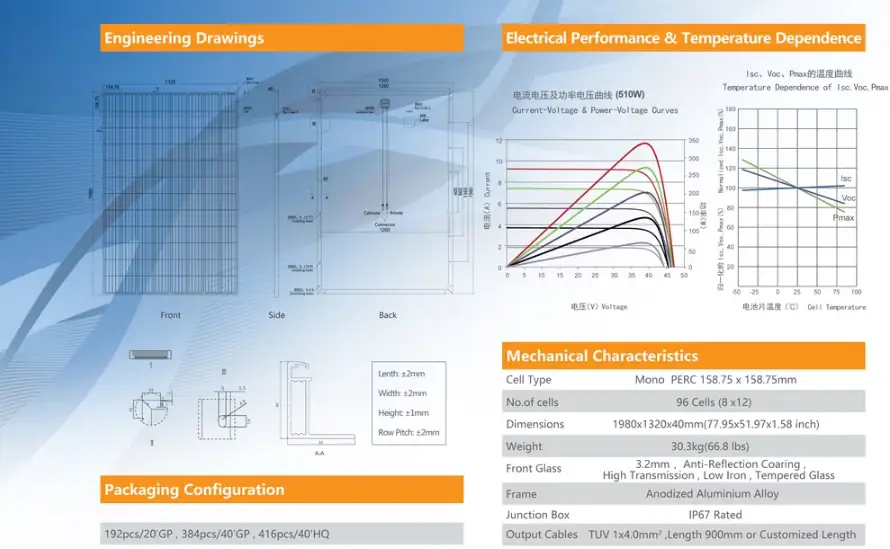

Specifications

Specification	MYM3096-500	MYM3096-505	MYM3096-510	MYM3096-515	MYM3096-520
STC / NOCT Maximum Power (Pmax) (W)	500 / 370.3	505 / 374	510 / 377.7	515 / 381.4	520 / 385.1
Maximum Power Voltage (Vmp) (V)	49.9 / 46.3	49.9 / 46.3	49.9 / 46.3	49.9 / 46.3	49.9 / 46.3
Maximum Power Current (Imp) (A)	10.02 / 8	10.12 / 8.08	10.22 / 8.16	10.32 / 8.24	10.42 / 8.32
Open-circuit Voltage (Voc) (V)	60.9 / 56.6	60.9 / 56.6	60.9 / 56.6	60.9 / 56.6	60.9 / 56.6
Short-circuit Current (Isc) (A)	10.42 / 8.61	10.52 / 8.69	10.62 / 8.78	10.73 / 8.86	10.83 / 8.95
Module Efficiency STC (%)	19.10%	19.30%	19.50%	19.70%	19.90%
Operating Temperature (°C)	-40°C ~ +85°C
Maximum System Voltage	1000 VDC (IEC)
Maximum Series Fuse Rating	10 A
Power Tolerance	0 ~ +5 Wp
Temperature Coefficient of Pmax	-0.37% / °C
Temperature Coefficient of Voc	-0.29% / °C
Temperature Coefficient of Isc	-0.048% / °C
Nominal Operating Cell Temperature (NOCT)	45 ± 2°C
HS Code	854143000
