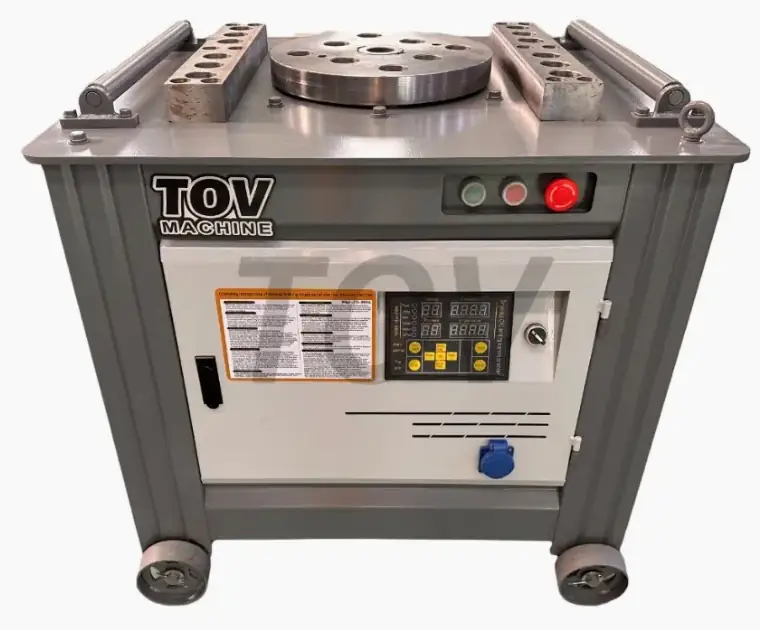

Steel bar bending machine

A steel bar bending machine is a tool used for bending rebar with precision and efficiency. It comes in various models, including automatic, CNC, and semi-automatic types. This machine is one of the essential pieces of equipment in steel bar processing and construction work.

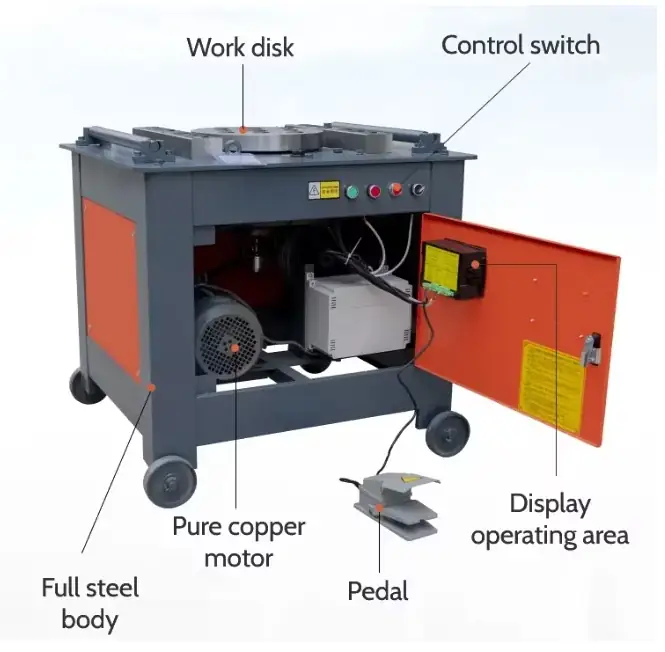

The machine is constructed from cast steel and undergoes repeated quenching and forging, resulting in a solid build that is highly wear-resistant and durable. It is designed to withstand the demands of continuous heavy-duty use.

High-quality Chint electrical components are used to ensure reliable performance and enhanced safety during operation. The machine also features robust all-steel accessories and offers powerful bending capability with easy one-button control for improved user convenience.

Additionally, it is fitted with a thickened top plate, which effectively resists deformation even when processing large-diameter steel bars over long periods. This design makes it especially suitable for industrial-grade rebar bending tasks.

Specification (Steel Bar Bending Machine)	GW-45	GW-45A	GW-45B	GW-45PRO	GW-50	GW-55	GW-60
Power	3 KW	3 / 4 KW	3 KW	4 KW	4 KW	5.5 KW	5.5 KW
Round Bar Diameter	6–40 mm	6–40 mm	6–40 mm	6–45 mm	6–50 mm	6–55 mm	6–60 mm
Rebar Diameter	10–32 mm	10–32 mm	6–32 mm	6–36 mm	10–40 mm	10–40 mm	6–45 mm
Weight	255 kg	310 kg	240 kg	310 kg	350 kg	420 kg	600 kg
Machine Dimensions (L × W × H)	880 × 740 × 850 mm	880 × 740 × 850 mm	880 × 740 × 850 mm	850 × 740 × 720 mm	1000 × 850 × 780 mm	900 × 900 × 850 mm	1100 × 1000 × 1000 mm
