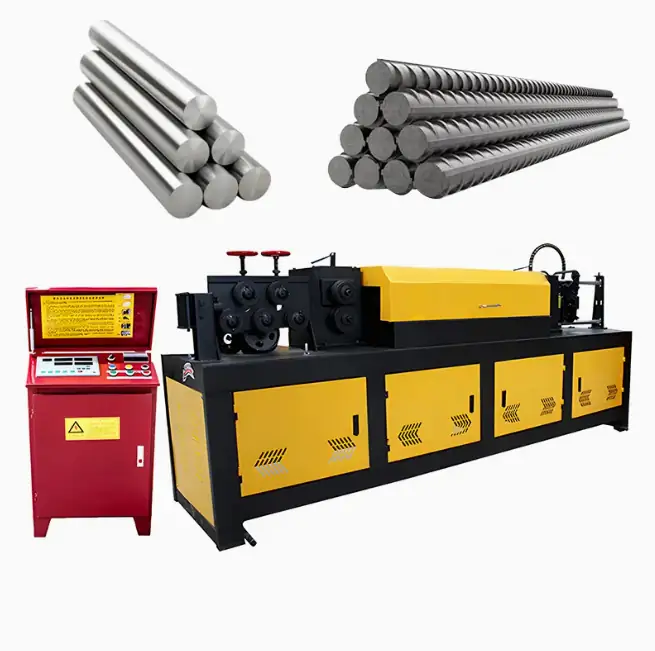

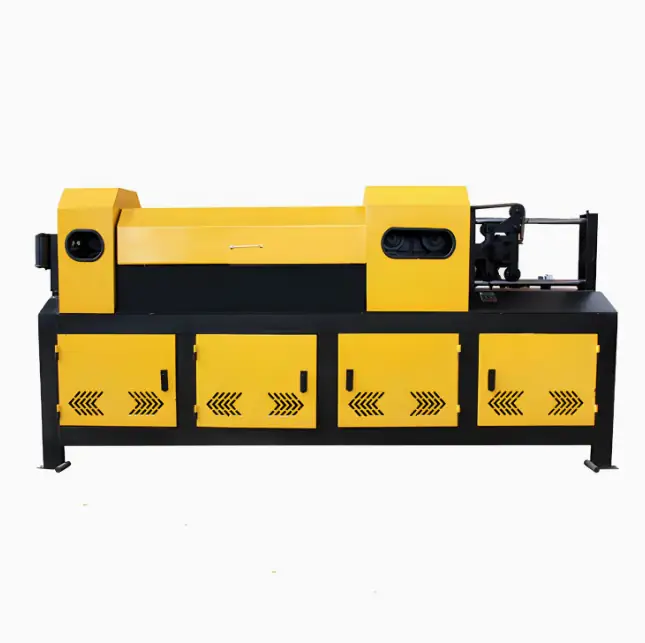

Steel Bar Rebar Straightening and Cutting Machine




Steel Bar Rebar Straightening and Cutting Machine
The steel bar straightening and cutting machine is a type of rebar processing equipment designed specifically for the straightening and cutting of steel bars. Commonly referred to as a rebar straightening and cutting machine, this equipment combines both functions in one unit, significantly boosting work efficiency and reducing manual labour.
It is an ideal choice for businesses in the steel processing industry.
In addition to this machine, Dingdian Machinery also offers a wide range of rebar-related equipment, including:
-
Rebar upsetting machines
-
Steel bar cutting machines
-
Rebar threading machines
-
Rebar bending machines
-
Steel bar de-rusting machines
-
Cold extrusion machines
-
Rebar couplers
-
Pipe shrinking machines, and more.
Specifications
Specification | DD-GTQ4-10A | DD-GTQ414 |
---|---|---|
Product Name | Steel Bar Straightening and Cutting Machine | |
Keyword | Steel Bar Straightening Machine | |
Applications | Steel Bar | |
Diameter Adjustment Range | 4–10 mm (Grade 3 Steel) | 4–14 mm (Grade 3 Steel) |
Straightening Speed | 35–50 m/min | 0–80 m/min |
Wire Length | 800–9000 mm (extendable) | 800–9000 mm (extendable) |
Length of Workpiece | 20–9999 cm | 20–9999 cm |
Cutting Error | ±0.5–1 cm | ±0.5–1 cm |
Straightening Accuracy | ±2 mm/m | ±2 mm/m |
Processing Diameter | 4–10 mm | 4–14 mm |
Power | 7.5 kW | 17 kW |
Voltage | 380 V, 3-phase, 50 Hz | 380 V, 3-phase, 50 Hz |
Engine | Electric Motor | Electric Motor |
Automatic Grade | Automatic | Automatic |
Control | Manual / Artificial | Manual / Artificial |
Principle | Small Deformation | Small Deformation |
Certification | CCC, ISO9001, CE | CCC, ISO9001, CE |
Condition | New | New |
Customisation | Non-Customised | Non-Customised |
Weight | 240 kg | 1050 kg |
Machine Dimensions (L × W × H) | 1400 × 570 × 900 mm | 2400 × 800 × 1200 mm |
