Agricultural Machineries
Subsoiler


Subsoiler

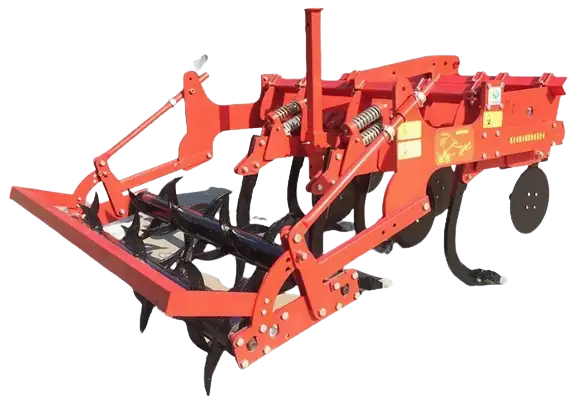

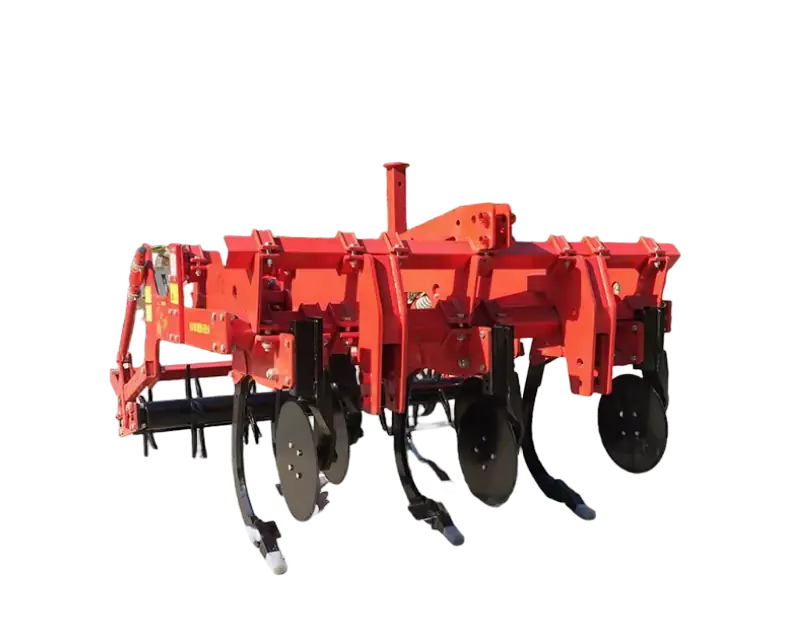

The Subsoiler is a high-performance agricultural implement designed to break through the compacted bottom layer of the plough without turning the soil over, preserving its natural profile. By deepening the cultivation layer, it enables improved root penetration, optimises nutrient absorption, and enhances the overall growing environment for crops. This advanced tillage method works by effectively regulating the soil’s solid, liquid, and gas phases, creating a balanced structure that supports healthier and more vigorous plant growth.
Engineered for durability and precision, the subsoiler plays a vital role in improving the tillage layer’s structure. It significantly reduces surface runoff and prevents soil water erosion, while increasing the soil’s capacity to store moisture and resist drought. The unique working principle ensures a tillage profile where the upper layer remains loose for aeration, while the lower layer is firm for stability — achieving the perfect balance between porosity and support.
Ideal for a variety of farming applications, the subsoiler offers a cost-effective and efficient solution for long-term soil improvement. Its design promotes both curvilinear and compacted zones to coexist within the soil structure, creating the ideal conditions for robust crop development. With its proven ability to maximise yield potential while conserving soil health, the subsoiler is an essential investment for modern, sustainable farming.
Specifications
Specification | 1S-200A | 1S-250A |
---|---|---|
Dimension (L × W × H) (mm) | 2680 × 2230 × 1350 | 2680 × 2730 × 1350 |
Weight (kg) | 1280 | 1540 |
Matching Power (hp) | 90-120 | 90-200 |
Subsoiling Depth (cm) | 25-40 | 25-40 |
Preparation Depth (cm) | 8-15 | 8-15 |
Working Speed (km/h) | 3-7 | 3-7 |
Hourly Productivity (ha/h) | 0.42-0.98 | 0.53-1.23 |
Main Parts | YAAO special subsoiling plough 5 | YAAO special subsoiling plough 7 |
Product Name | Subsoiler | |
Keyword | Deep Tillage / Soil Loosening Implement | |
Application | Breaking compacted plough layers, improving soil structure, and enhancing root growth for crops | |
HS Code | 8432290000 | |
Power | 90-200 HP | |
Condition | New | |
Certification | ISO9001, CE |
