Trowel Machine


Trowel Machine

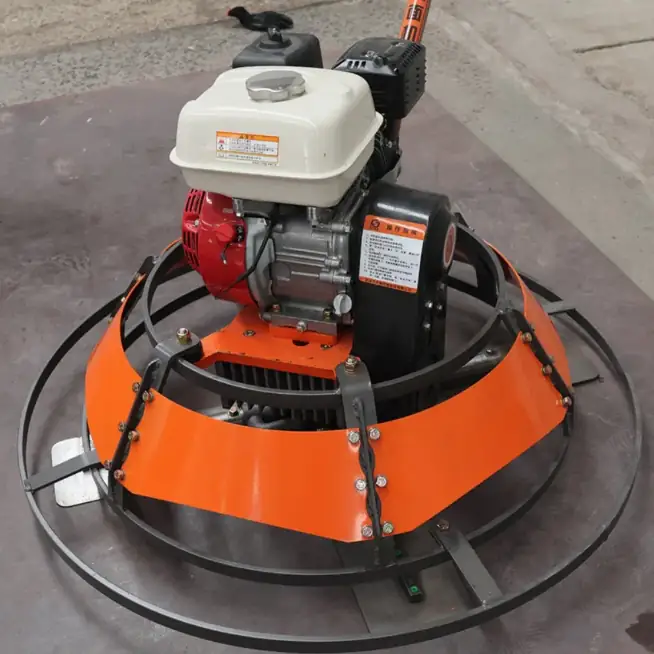

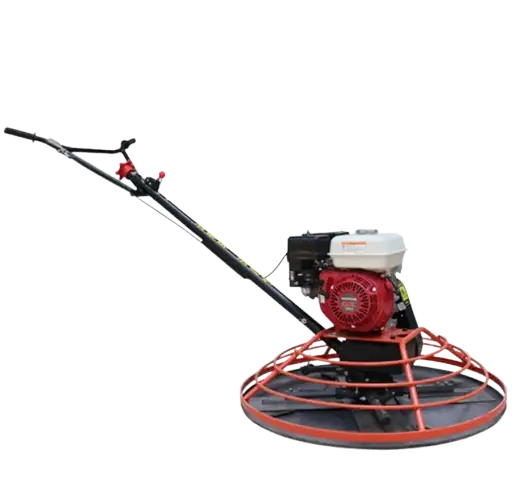

The power trowel is a modern, high-output machine designed for efficient concrete surface finishing. The finishing rate may vary depending on operator skill and site conditions. Fitted with four finishing blades, it features a standard-duty gearbox engineered to deliver exceptional performance, low maintenance, and reliable operation—even under demanding conditions.
Every power trowel is equipped with a safety shutdown switch and a low oil level alert to ensure operator safety and protect the engine. Operating time between fuel refills is approximately 2.5 to 3 hours, with rotor speeds ranging between 80 and 120 RPM.
These machines represent some of the most technically advanced trowels available today. With proper maintenance and correct usage, they offer long-lasting and dependable service.
Main Features:
-
Ideal for smoothing and polishing a wide range of concrete surfaces.
-
Available in popular sizes ranging from 24" to 46" to suit various site requirements.
Specifications
Specification | YGT-100 |
---|---|
Model No. | YGT-100 |
Type | Grader |
Moving Type | Semi-Fixed |
Mixing Method | Intermittent Compulsory |
Automatic Grade | Semi-Automatic |
Product Capacity | <40t/h |
Certification | ISO9001: 2000, CE |
Condition | New |
Engine Brand | Honda GX160 / Lifan 5.5HP |
Work Diameter | 760 mm |
Running Speed | 60–140 rpm |
Engine Type | Air-Cooled, Single Cylinder |
Colour | Customised |
Transport Package | Wooden Box |
Specification (L×W×H) | 84×84×72 cm |
HS Code | 847910900 |
Production Capacity | 50,000 |
