Palletisers
Vertical column palletiser
Compact, intelligent, accurate, automated palletising for limited spaces.
Compact Automated Palletiser

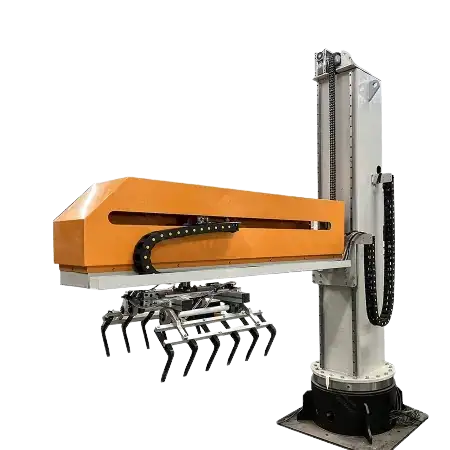

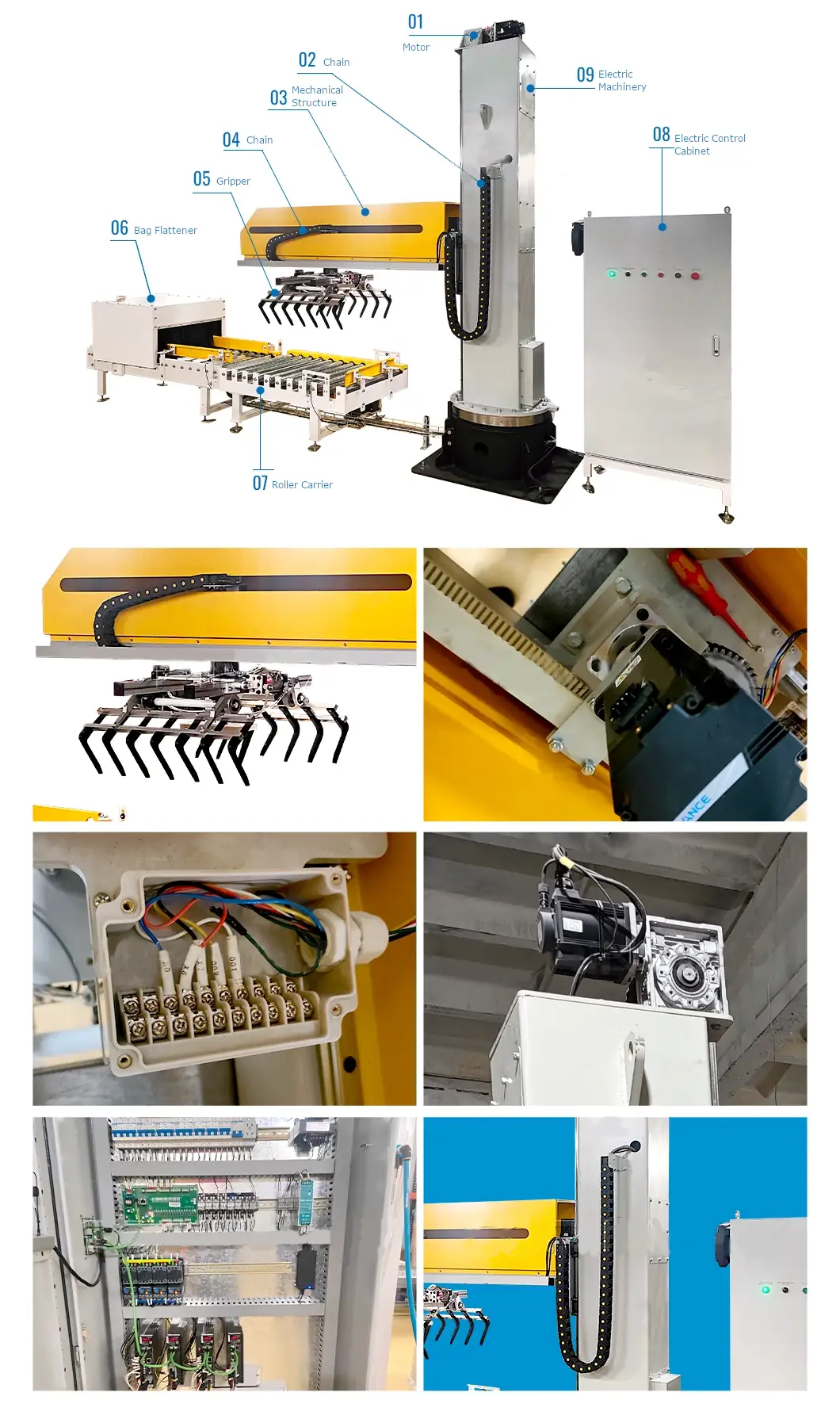

Vertical Column Palletiser

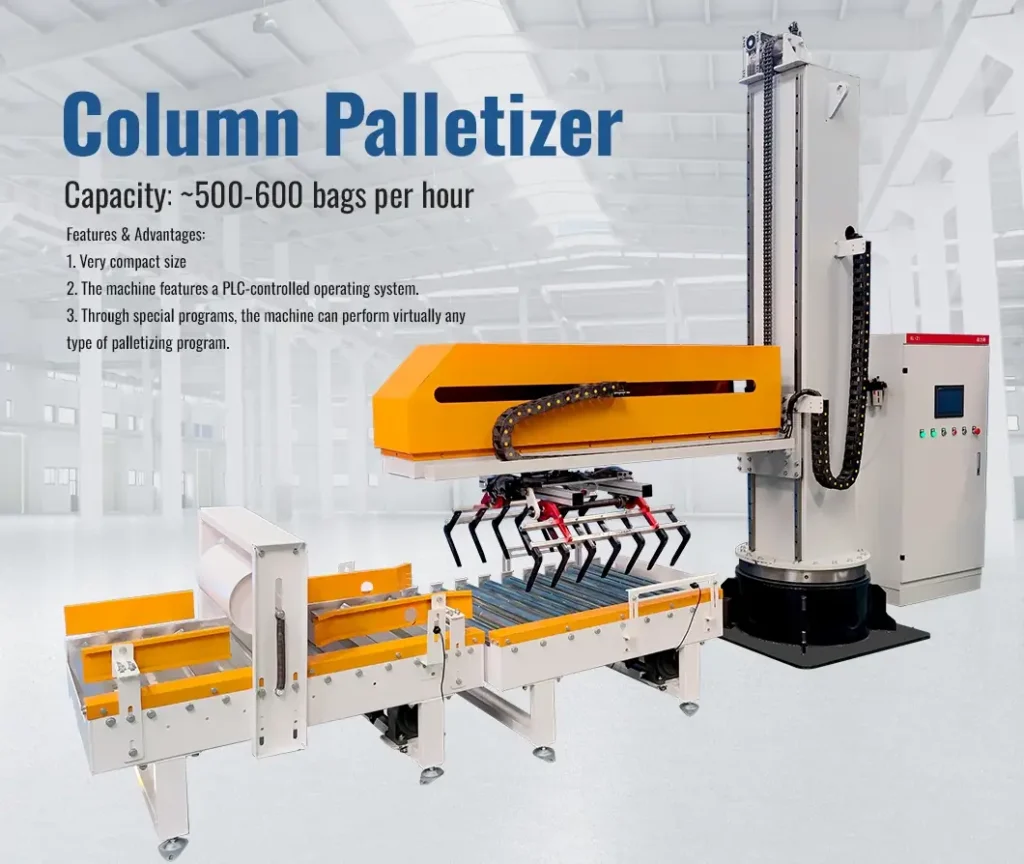

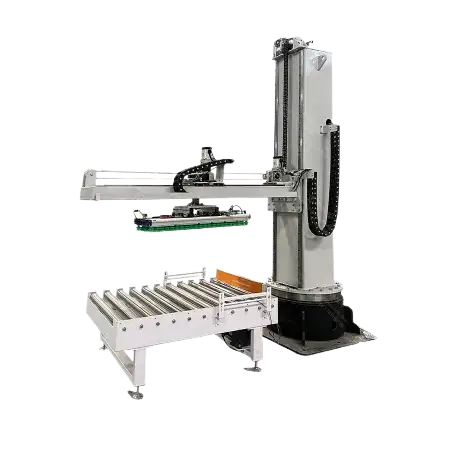

Vertical Column Palletiser is a high-efficiency, intelligent automated palletising solution, widely used across warehouses, logistics hubs, manufacturing plants, and similar environments.
Utilising advanced servo positioning and a PLC touch-screen control system, the equipment offers straightforward operation, enabling users to manage production processes with ease and precision.
Thanks to its space-saving design, the palletiser requires just 3×3 square metres of floor space—making it ideal for facilities where space is limited.
Equipped with the same high-performance servo control system found in industrial robots, it delivers exceptional accuracy in stacking and positioning.
0
bags / min (up to)
0
mm Stacking height
0
cycles/hr (up to)
Process flow
1. Product Pickup
The robotic arm collects goods from the conveyor line based on pre-set rules.
2. Precise Placement
Goods are placed at the target location following specified stacking patterns.
3. Real-Time Sensing
Sensors track the position and condition of goods to ensure accurate stacking.
4. System Control
The computer control system manages and supervises the entire operation.
5. Smooth Operation
All components work together to ensure efficient and uninterrupted palletising.
Features
Intelligent control system
Operated via a PLC touch screen, it is user-friendly and intuitive. Real-time display of speed, fault causes, and fault locations supports quick diagnosis and resolution.
Multi-machine integration

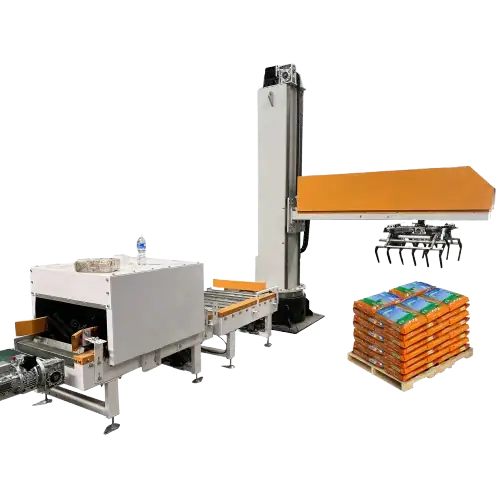

Seamlessly connects with various packaging equipment (e.g. stretch wrapping machines, shrink wrappers, carton packing machines), forming a fully automated, high-efficiency production line
Labour-saving operation
Designed for ease of use and low maintenance, it reduces reliance on manual labour while significantly improving productivity.
Compact footprint
Requires only 3×3 square metres for installation, helping to conserve valuable factory floor space.
Efficient buffering system
Includes a cache system that prevents disruptions in speed when handling heavy loads, ensuring a consistent flow.
Stacking alignment system
Features a correction mechanism to prevent misalignment or collapsing of stacks—especially useful for slippery or densely packed bags.
Specifications
| Vertical Column Palletiser Specifications | |
|---|---|
| Model | WM - VCP600 |
| Power | 6 kW, Three phase 380V/50Hz (customisable) |
| Radius of Gyration | R2050 mm |
| Dimensions (L×W×H) | 2750 × 950 × 3250 mm |
| Air Supply Pressure | 0.5–0.8 MPa |
| Air Consumption | ≥0.01 m³/h |
| Payload Capacity | <80 kg |
| Pallet Size | (1000–1200) × (1000–1200) × (120–150) mm |
| Palletising Speed | 400–600 cycles/hour |
| Maximum Stacking Height | 1800 mm (from ground) |
| Servo Motor | XINJIE |
| Air Cylinder | AIRTAC / SNS |
| Pneumatic Solenoid Valve | AIRTAC |
