Automatic linear paste & Liquid filling and capping line
Efficient!

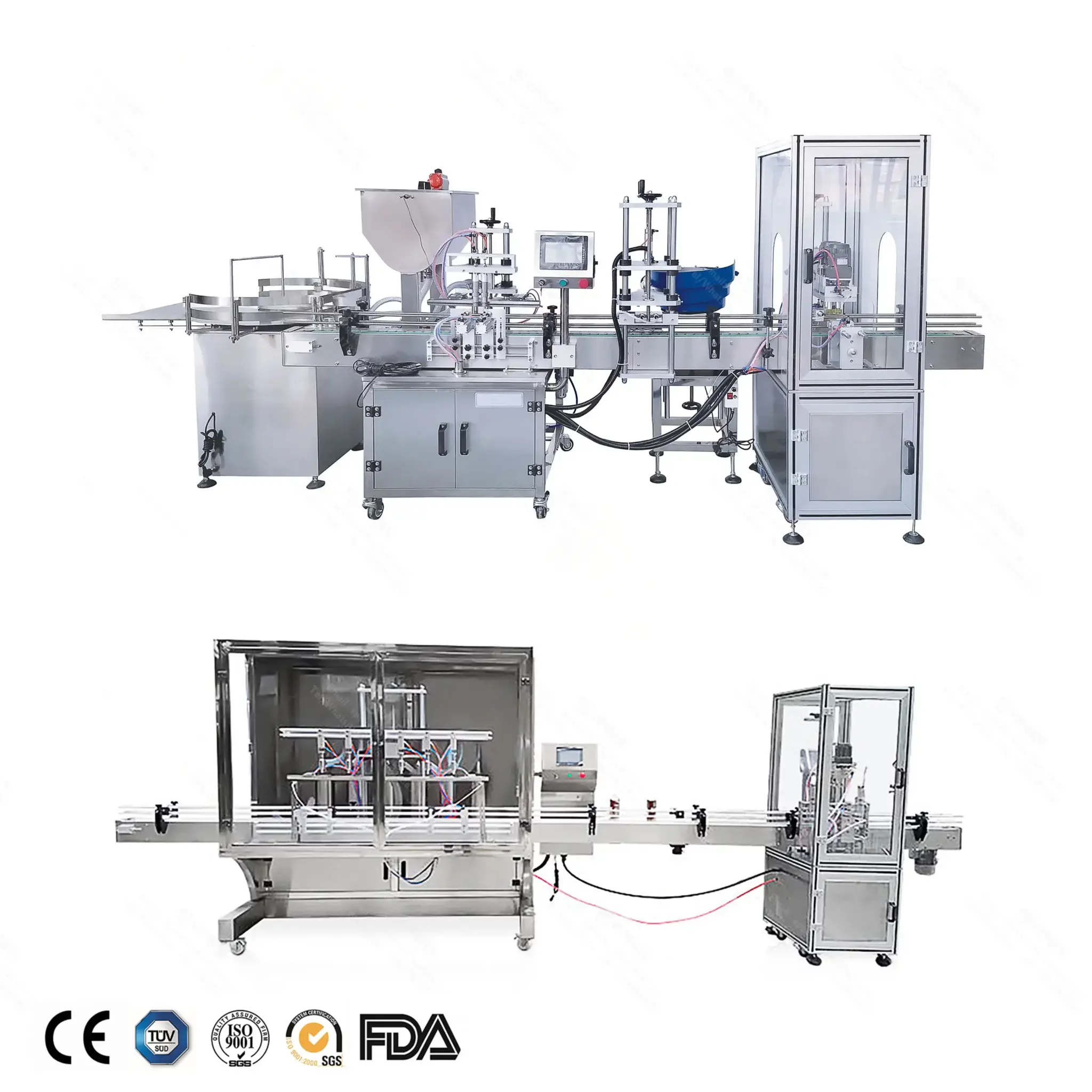

Automatic linear paste & Liquid filling and capping line
An automatic liquid filling machine is engineered to dispense precise volumes of liquid into containers without manual input.
Designed for continuous operation in high-demand production environments, these machines automatically manage container positioning, filling, and—when integrated—capping and labelling processes.

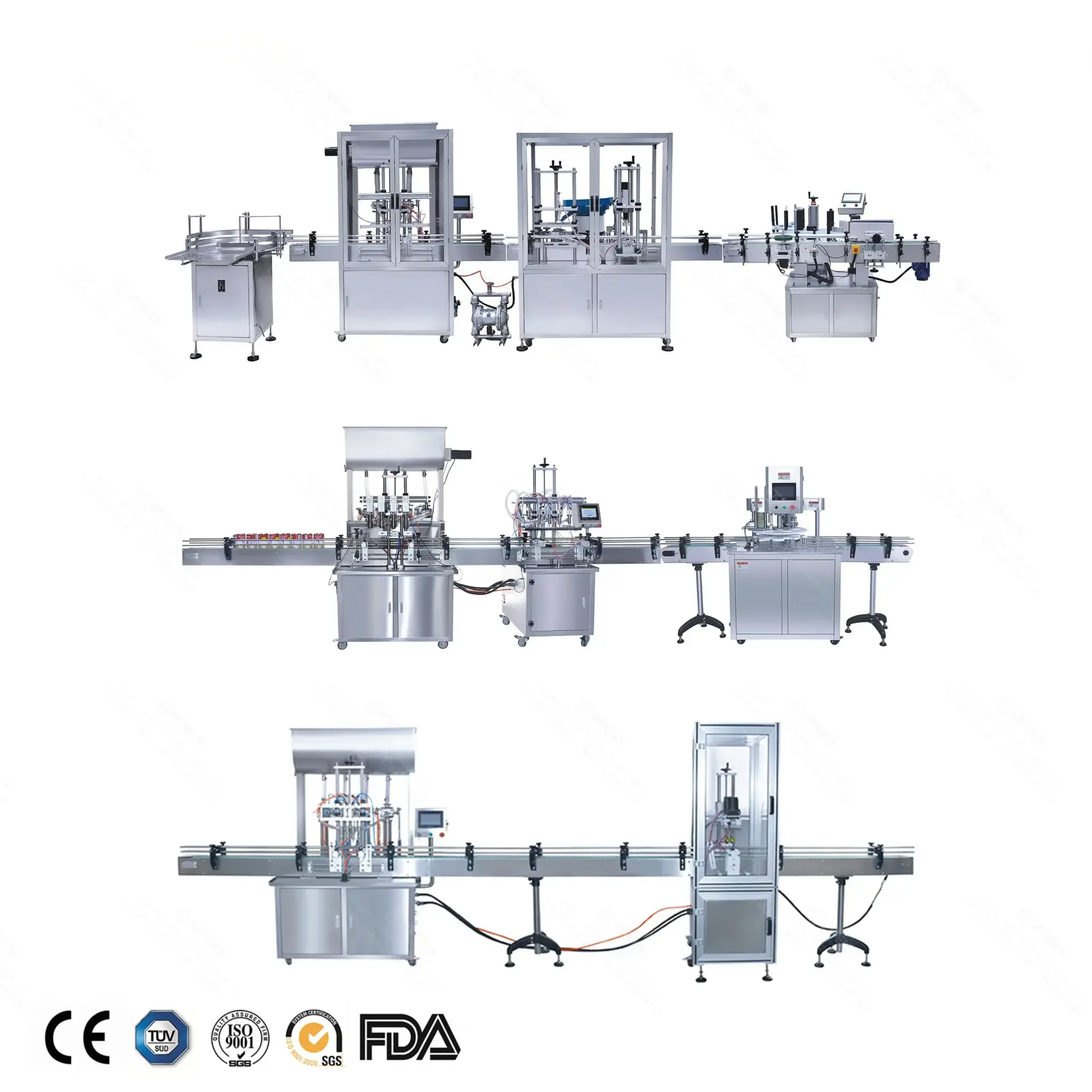

As part of a complete filling line, the system can include bottle feeding, liquid filling, cap placement, sealing, and coding—all fully synchronised to maximise efficiency and throughput.
Suitable for a wide range of industries, including food and beverage, daily chemicals, edible oils, pharmaceuticals, and agrochemicals, the machine utilises a piston-driven filling mechanism with a three-way check valve for consistent, accurate, and efficient performance.
0
pallets/hr
0
bottles/min
0
filling heads or more
Process flow
1. Container Feeding
Empty bottles or jars are automatically fed into the filling line via a conveyor system.
2. Precise Positioning
Containers are accurately indexed and held in place beneath the filling nozzles.
3. Filling Operation
The product is dispensed using piston-driven or vacuum-based technology, depending on the machine type.
4. Nozzle Movement
In piston systems, nozzles may lower into the containers and retract during filling to minimise splashing and foaming.
5. Container Discharge
Once filled, containers are transferred from the filling station for capping, labelling, or additional processing.
6. Line Continuation
The process repeats seamlessly for the next set of containers, maintaining continuous operation.
Features
Flexible Configuration
Customisable assembly with different automatic equipment based on production needs.
Hygienic Design Standards
All machine components are selected and built in compliance with food hygiene regulations.
Polished Contact Surfaces
Inner surfaces of containers that touch the product are finely polished to ensure cleanliness.
Easy Cleaning Structure
Components requiring regular washing are connected with quick-release parts for easy disassembly and cleaning.
Versatile Application

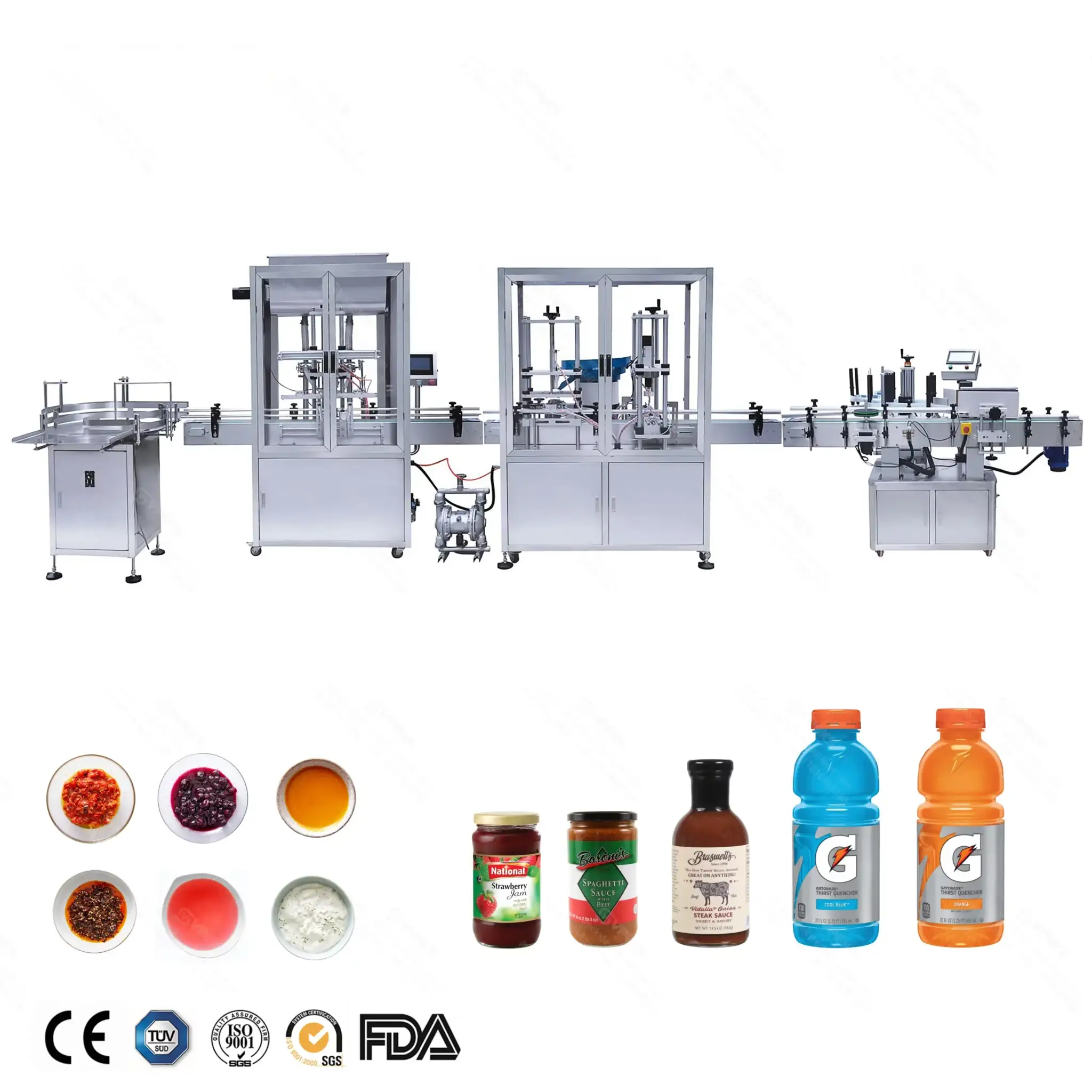

Suitable for packing a variety of liquids, fluids, and pastes such as juice, edible oil, sauces, and household products.
Fully Automated Line
A complete, fully automated packaging line that reduces manual labour and increases efficiency.
Ionised Air Rinsing
Features a 4-head negative ion bottle rinser to ensure bottles remain clean and sanitary.
Multi-Functional Labelling
Dual-side labelling machine supports round bottles, single-side, or double-side labelling.
Tamper-Evident Sealing
Heat-shrunk bottle caps prevent tampering and air ingress, preserving product freshness.
Specifications
| Specification | Linear Automatic Paste Filling Machine |
|---|---|
| Model | WM - LAPFM60 |
| Power | 500 W |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Air Pressure | 0.5–0.7 MPa |
| Filling Speed | 5–60 bottles per minute |
| Filling Accuracy | ±1% |
| Available Models | 10–100 ml, 30–300 ml, 50–500 ml |
| Number of Filling Heads | 2, 4, 6, 8, 10, 12 (customisable) |
| Application Scope | Suitable for daily chemical, food, grease, pharmaceutical, pesticide, and related industries. |
| Note | Specifications may vary based on machine configuration and model selection. |
Why Choose Us
FAQ
How to select the right packing machine?
If you need a small bag packing machine, start by confirming your bag type.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
How to choose the right automatic palletising machine?
To select a suitable automatic palletising machine, first confirm your bag type.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
How does WizMachinery's machines differ from other manufacturers?
We use internationally recognized components like OMRON, SIEMENS, ABB, Schneider, AirTAC, and NSK, ensuring high-quality, reliable machines with minimal concerns about lifespan and future replacements for our clients.
How does WizMachinery's service differ from other manufacturers?
We are a factory with an in-house team of design engineers and a 10,000-square-meter production workshop. Based on customer needs, we provide customized circuit designs and complete project support—from initial consultation, planning, and equipment selection to manufacturing, site layout, delivery, installation, and commissioning.
We offer comprehensive solutions to our clients.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
How does WizMachinery approach product and program design?
We focus on simplicity and user-friendliness in both design and programming, as our goal is to reduce labour costs through automation, not increase operational complexity.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
