Open Mouth Bagging Machine
Charcoal Bagging Machine
Specialised charcoal bagging machine ensures consistent, safe, and efficient packaging.
Efficient!

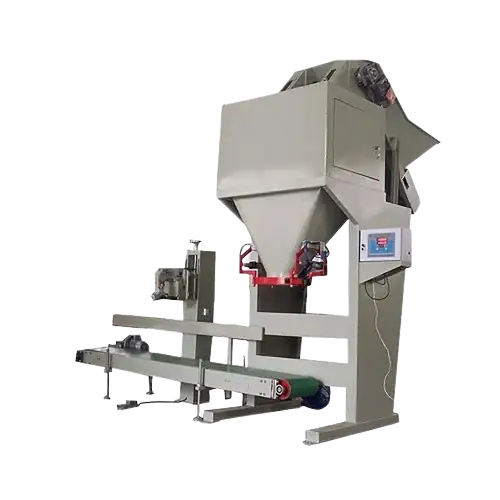

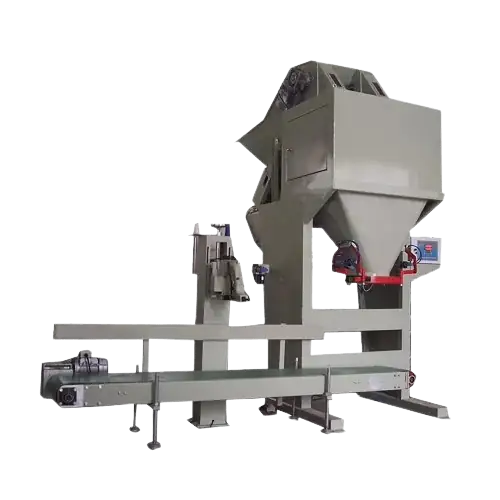

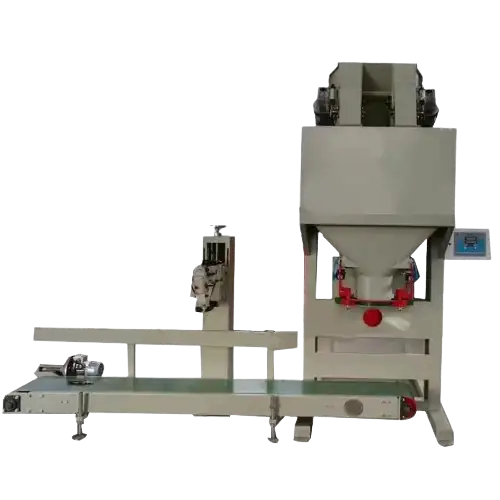

Charcoal Bagging Machine
Charcoal must be properly packaged to ensure safe, clean, and efficient transport from production to point of sale. Unlike uniform materials, charcoal presents unique challenges—its varying lump sizes, irregular shapes, and considerable weight can easily damage standard packaging machines or result in inconsistent bagging. These factors make manual packaging inefficient, labour-intensive, and prone to error.
That’s why a specialised solution is essential. Our charcoal bagging machine is purpose-built to handle these specific characteristics. It combines robust construction with precision weighing and automated handling to ensure that each bag is filled consistently and securely, minimising waste and maximising output.
0
Bags / hr (up to)
0
+
Projects Done
0
%
Client Satisfaction
Process flow
1. Charcoal Feeding
Charcoal is delivered to the feed inlet via a conveyor system.
2. Weighing
The charcoal is measured using an integrated weighing unit.
3. Bagging
The machine automatically fills bags with the weighed charcoal.
4. Sealing
Filled bags are conveyed to the sewing unit for sealing.
5. Completion
The sealed bags are ready for palletising or storage.
What's included?
| Charcoal Bagging Machine | ||
|---|---|---|
| Item Name | Application | Quantity |
| Packing Machine | Weighing and filling bags | 1 set |
| Horizontal Conveyor | Transferring material | 1 set |
| Automatic Sewing Machine | Sealing the bag after filling | 1 set |
| Control Cabinet | Microcomputer control (380V) for packing machine,
380V control cabinet for sewing machine and conveyor |
1 set |
| Additional Components | The user only needs to connect the main power cable to our control cabinets. All interconnecting wiring (including sensor cables) is supplied and Installation documents. | |
Features
Highly automated
The machine handles feeding, packing, and bag sewing automatically , significantly reducing the need for manual labour .
High throughput
The single-weighing system can package up to 300 bags per hour, while the double-weighing version handles 500–600 bags per hour—ideal for efficiently processing large volumes of material.
Smart control: Fitted with both electronic and computer control cabinets, ensuring reliable and safe operation.
Smart control: Fitted with both electronic and computer control cabinets, ensuring reliable and safe operation.
Intelligent Control System
A touchscreen interface and microcomputer controller make operation simple and intuitive, allowing users to easily adjust and monitor settings.
Easy Operation
The system supports fast, medium, and precise feeding, along with automatic weighing, bag clamping, and release—working with manual bagging to improve efficiency.
Low Maintenance
Its practical structure allows for easy daily maintenance and cleaning, helping ensure long-term stable performance.
Stable and Reliable
The machine runs smoothly with excellent stability, minimizing errors such as inaccurate weighing or spillage and ensuring consistent, high-quality packaging results.
Specifications
| Charcoal Bagging Machine Specifications | ||
|---|---|---|
| Product Details | Single Weighing & Filling System | Double Weighing & Filling System |
| Model | Single weighing and filling system | Double weighing and filling system |
| Weighing Scale | 1–25kg per bag | up to 100kg (110lbs)/bags |
| Packing Speed | 300 bags/hour | up to 600 bags/hour |
| Suitable Charcoal Lump Size | 20–150mm | 20–150mm |
| Power Supply | 220/380V, 50/60Hz | |
| Power Dissipation | 1.5kW | 3kW |
| Required Compressed Air | 0.4MPa–0.6MPa | 0.6MPa–0.9MPa |
| Compressed Air Consumption | 0.4m³/hour | 0.8m³/hour |
| Precision | 0.2% (depending on actual coal/charcoal weight) | |
Why Choose Us
FAQ
How to select the right packing machine?
If you need a small bag packing machine, start by confirming your bag type.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
How to choose the right automatic palletising machine?
To select a suitable automatic palletising machine, first confirm your bag type.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
How does WizMachinery's machines differ from other manufacturers?
We use internationally recognized components like OMRON, SIEMENS, ABB, Schneider, AirTAC, and NSK, ensuring high-quality, reliable machines with minimal concerns about lifespan and future replacements for our clients.
How does WizMachinery's service differ from other manufacturers?
We are a factory with an in-house team of design engineers and a 10,000-square-meter production workshop. Based on customer needs, we provide customized circuit designs and complete project support—from initial consultation, planning, and equipment selection to manufacturing, site layout, delivery, installation, and commissioning.
We offer comprehensive solutions to our clients.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
How does WizMachinery approach product and program design?
We focus on simplicity and user-friendliness in both design and programming, as our goal is to reduce labour costs through automation, not increase operational complexity.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
How to Change my Photo from Admin Dashboard?
Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
