Palletisers
Coordinate Palletiser
Compact, precise, automated palletiser for efficient stacking.
Compact Automated Palletiser
Coordinate Palletiser

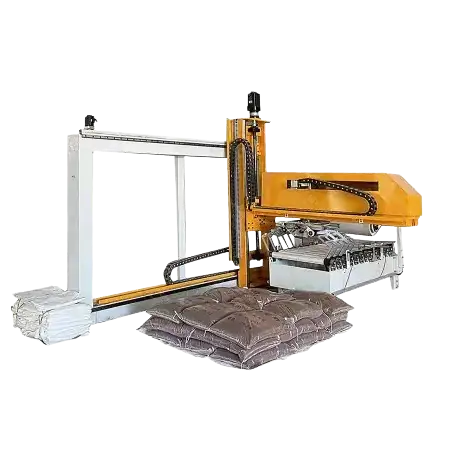

The coordinate palletiser is a central component in factory automation systems. It uses precise coordinate mapping to stack products evenly and securely on pallets. This automated process not only accelerates palletising operations but also reduces the risk of errors typically associated with manual handling.
By efficiently organising products into neat, stable layers, the palletiser enhances both storage efficiency and transportation reliability.
Compact and highly adaptable, this machine is suitable for a wide range of batch sizes and production environments. It is widely used across sectors including industry, agriculture, manufacturing, and light industry.
0
kg load
0
m reach
0
pallets/hr (up to)
Process flow
1. Product Pickup
The robotic arm collects goods from the conveyor line based on pre-set rules.
2. Precise Placement
Goods are placed at the target location following specified stacking patterns.
3. Real-Time Sensing
Sensors track the position and condition of goods to ensure accurate stacking.
4. System Control
The computer control system manages and supervises the entire operation.
5. Smooth Operation
All components work together to ensure efficient and uninterrupted palletising.
Features
Accurate Palletising
Utilises precise coordinate points to ensure even and stable stacking of goods, reducing misalignment and enhancing load stability.
Multi-Axis Design
Equipped with X, Y, and Z axes, along with a rotating Z-axis, to enable automated loading and unloading for various application needs.
Customisable Configuration
Axis stroke, gripper size, and load capacity can be tailored to suit specific operational requirements, ensuring optimal performance.
Automated Integration
Can be linked with equipment such as loading systems, weighing machines, and packaging lines for a fully automated workflow with minimal manual input.
Increased Labour Efficiency
Designed for intelligent operation, allowing a single operator to oversee the process or manage multiple machines, significantly boosting productivity.
Improved Working Conditions
Reduces physical labour and improves safety and comfort in the workplace through automation.
Specifications
| Coordinate Palletiser Specifications | |
|---|---|
| Model | WM - CP500 |
| Power | 6 kW, Three phase 380V/50Hz (customisable) |
| Working Scope | 2000 × 3000 mm |
| Dimensions (L×W×H) | 2750 × 950 × 2600 mm |
| Installation Space Required | 3 × 3 m |
| Air Supply Pressure | 0.8 MPa |
| Air Consumption | ≥0.01 m³/h |
| Servo Motor | XINJIE |
| Air Cylinder | AIRTAC / SNS |
| Pneumatic Solenoid Valve | AIRTAC |
| Sensors | OMRON |
| PLC | Siemens |
| Electrical Components | Schneider |
| Palletising Speed | 400–500 cycles/hour |
| Control Accuracy | Same as robot palletisers (servo controlled) |
| Caching System | Prevents slowdown during transfer of heavy products |
| Stacking Correction System | Inverted stacking correction to prevent collapse; suitable for slippery or concentrated material bags |
| Applicable Packaging Types | Bags, boxes, fillings, bottles, and other packaging materials |
