Open Mouth Bagging Machine
Fully Automated Open Mouth Bag Filling Machine
Fast, precise, automated packing with wide use and customisable options.
Fully Automated!

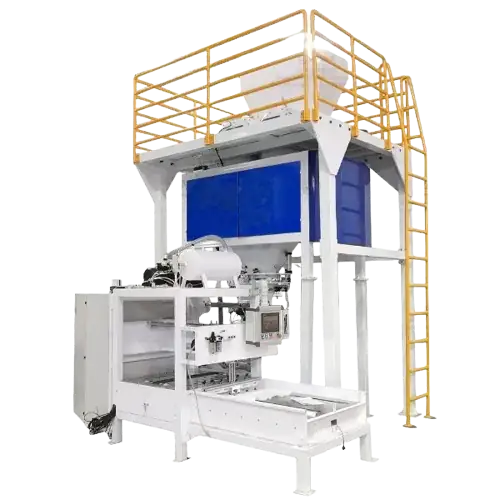

Fully Automated Open Mouth Bagging Machine
The open-top bag filling machine offers a smart and efficient solution for packing powdery and granular materials ranging from 10 to 50 kg into open-top bags. Designed for accuracy and ease of use, it features a precision gravimetric system that automatically controls feed rates through advanced load cell technology — ensuring consistent, reliable filling every time.
With multiple feeding options available — including screw, belt, valve, and vibratory feeding — this machine can be easily adapted to suit a wide range of materials, from fine powders to coarse granules. Its versatile design makes it ideal for diverse industries such as construction, agriculture, chemicals, and food processing.
For a complete packaging solution, the system seamlessly integrates with bag sealing units (sewing or heat sealing) and belt conveyors, delivering a streamlined, automated process that boosts productivity while reducing manual handling.
0
Bags / hr (up to)
0
+
Projects Done
0
Empty bags stored per batch (up to)
Advantages of Fully Automated Open Mouth Bagging Machine
| Comparison: Fully Automatic vs Conventional Bagging Line | ||
|---|---|---|
| Scenario: Fertiliser production line, 600 tons/day, 24 hours/day, 3 shifts, 50kg bags (25 tons/hour) | ||
| Criteria | Conventional Bagging Machine | Fully Automatic Open Mouth Bagging Machine |
| Bagging Speed | 300 bags/hour | 600 bags/hour |
| Machine Quantity Required | 2 conventional machines | 1 fully automatic machine |
| Operator Requirement per Machine | 2 operators per machine (1 feeding, 1 sewing) | 1 operator to monitor the system |
| Total Labour per Shift | 4 workers | 1 worker |
| Total Labour per Day (3 Shifts) | 12 workers | 3 workers |

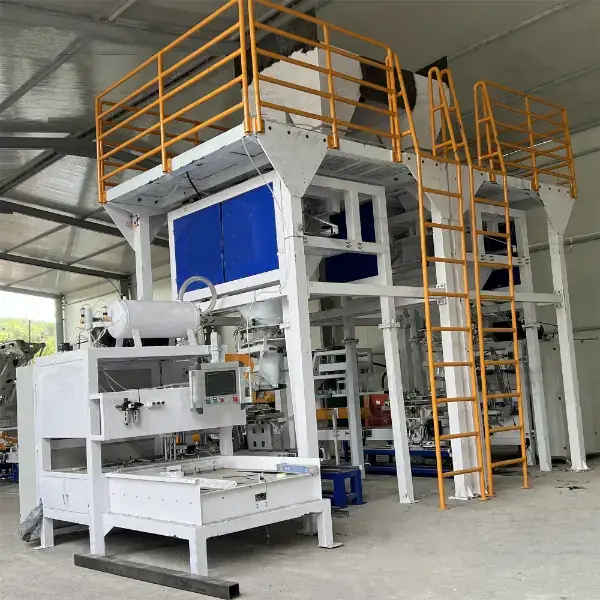

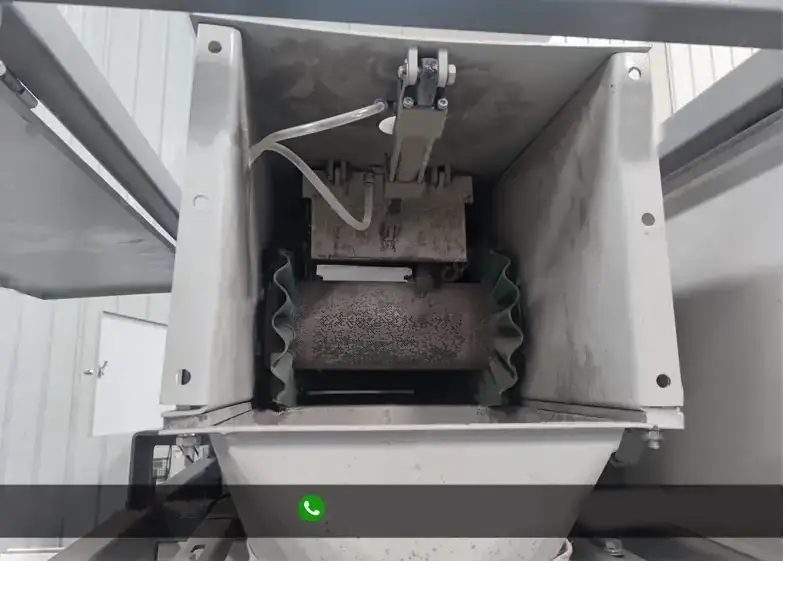

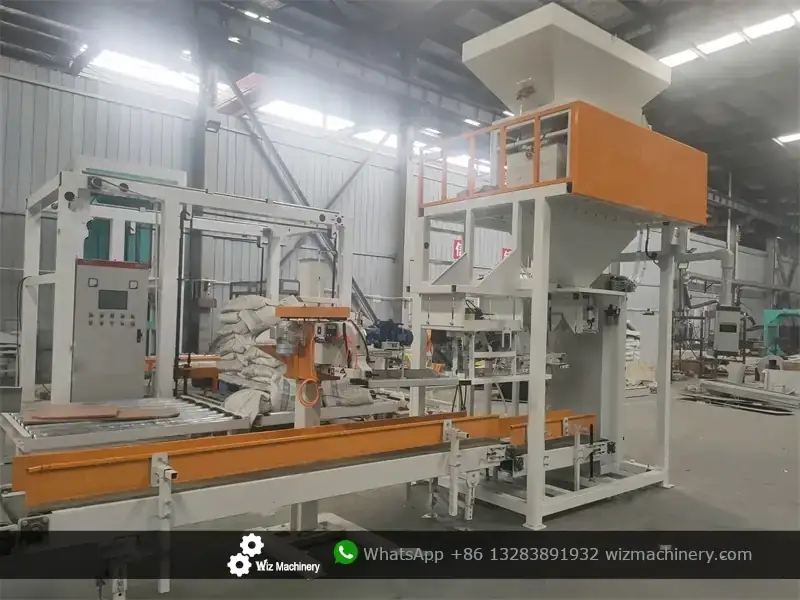

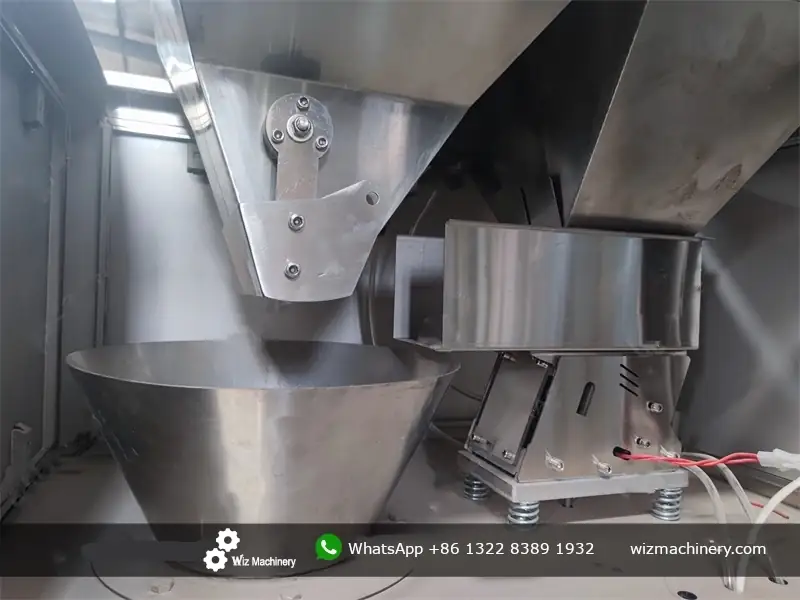

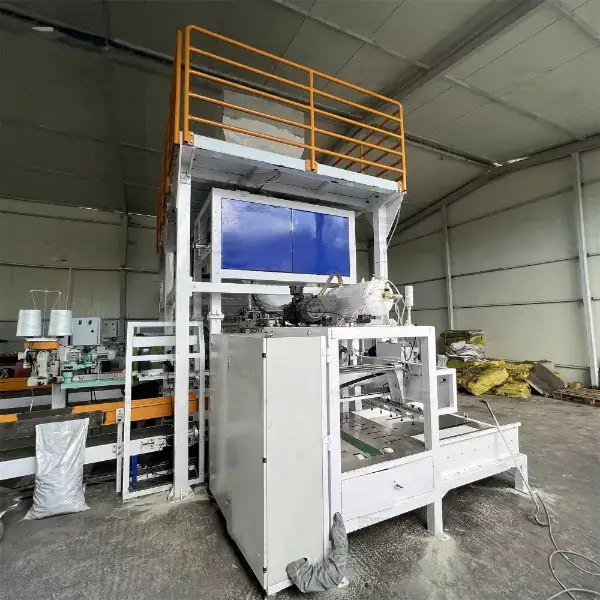

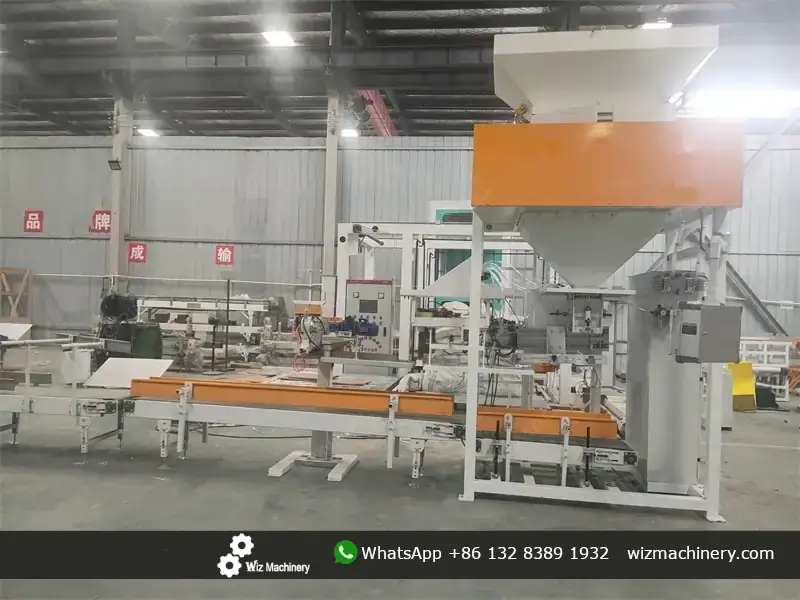

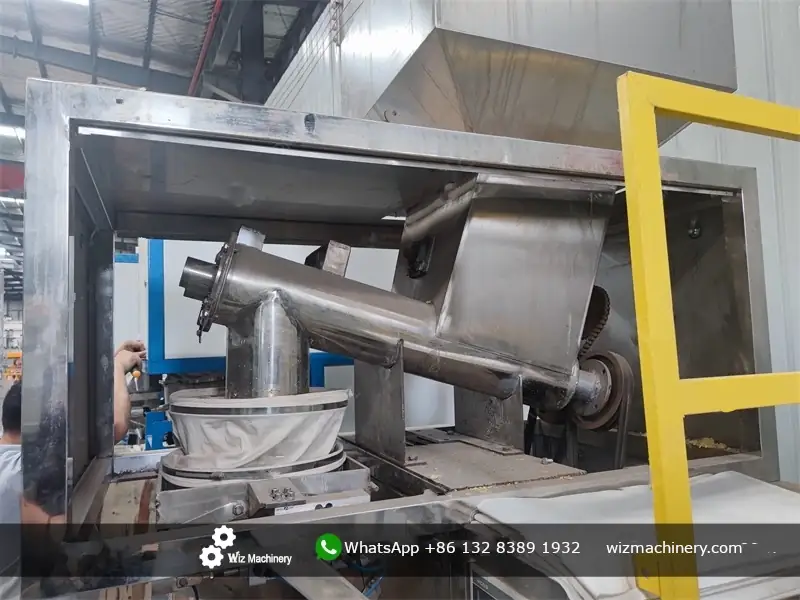

Machinery photos

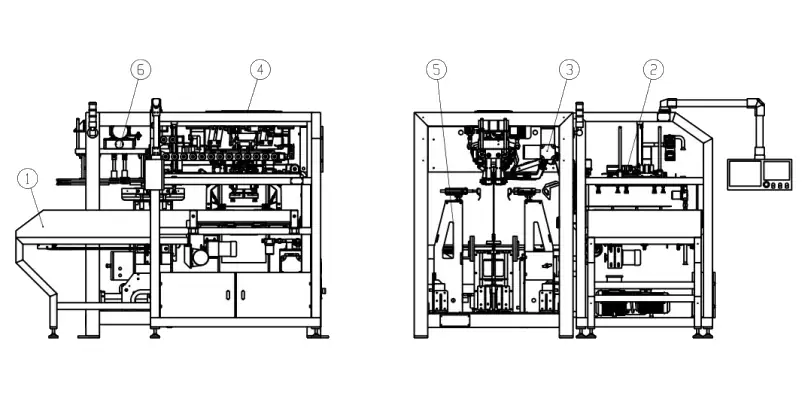

Process flow
1. Empty Bag Placement Platform
Stores 300–500 empty bags, ensuring a steady supply for continuous operation.
The dual-speed feeding system enables fast feeding to ensure high output, while variable-speed control during slow feeding enhances weighing accuracy.
The dual-speed feeding system enables fast feeding to ensure high output, while variable-speed control during slow feeding enhances weighing accuracy.
2. Bag Picking and Delivery Mechanism
Automatically selects and conveys empty bags to the feed opening.
3. Bag Positioning Arm
Precisely positions the bag over the filling spout to ensure proper alignment.
4. Bag Opening System
Opens the mouth of the bag in preparation for filling.

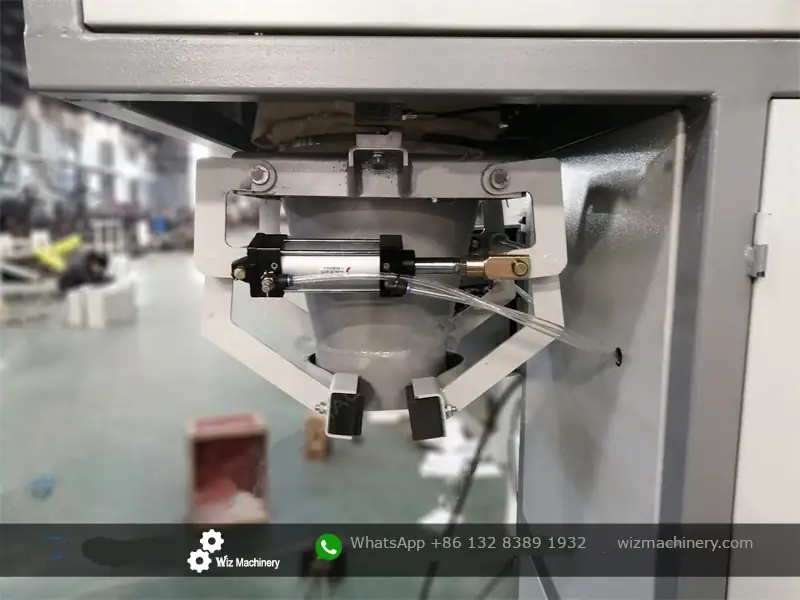

5. Bag Clamping Mechanism
The bag clamping system consists of precision sensors, support brackets, and clamp arms that hold the bag securely during filling. The robust frame structure provides support and stability for the entire unit and minimise spillage.
6. Weighing and Control System
Supported by a stable frame structure, the system uses a pneumatic control system and a central control unit to manage feed valves and clamping operations. When the bag is clamped and sufficient material is available in the storage bin, the valve opens automatically, and filling begins.
The filling process follows a two-stage weighing sequence: fast feed continues until the initial target weight is reached, followed by slow feeding to reach the final target weight. Once achieved, the machine stops filling, displays the final weight, and automatically releases the filled bag.
Simultaneously tidies the bag opening to ensure a neat seal and support further handling.
The filling process follows a two-stage weighing sequence: fast feed continues until the initial target weight is reached, followed by slow feeding to reach the final target weight. Once achieved, the machine stops filling, displays the final weight, and automatically releases the filled bag.
Simultaneously tidies the bag opening to ensure a neat seal and support further handling.
What's included?
| Fully Automated Open Mouith Bagging Machine | ||
|---|---|---|
| Item Name | Application | Quantity |
| 1. Automatic Bag Feeding System | Automatically delivers empty bags to the feed opening. It can store 300–500 bags per batch, depending on the thickness of the bags. | 1 set |
| 2. Automatic Sewing Machine | After filling, bags are conveyed to the sewing area where they are automatically sealed | 1 set |
| 3. Horizontal Belt Conveyor | Transfers bags with adjustable speed and direction to suit production requirements. | 1 set |
| 4. Automatic Weighing System | Ensures high-precision weighing by sensing and measuring the product weight. | 1 set |
| 5. Overhaul Platform | Designated work area for the maintenance, servicing, and upgrading of the automatic bagging machine. | 1 set |
Features
Highly automated
The machine handles feeding, packing, and bag sewing automatically , significantly reducing the need for manual labour .
High throughput
The single-weighing system can package up to 300 bags per hour, while the double-weighing version handles 500–600 bags per hour—ideal for efficiently processing large volumes of material.
Smart control: Fitted with both electronic and computer control cabinets, ensuring reliable and safe operation.
Smart control: Fitted with both electronic and computer control cabinets, ensuring reliable and safe operation.
Intelligent Control System
A touchscreen interface and microcomputer controller make operation simple and intuitive, allowing users to easily adjust and monitor settings.
Easy Operation
The system supports fast, medium, and precise feeding, along with automatic weighing, bag clamping, and release—working with manual bagging to improve efficiency.
Low Maintenance
Its practical structure allows for easy daily maintenance and cleaning, helping ensure long-term stable performance.
Stable and Reliable
The machine runs smoothly with excellent stability, minimizing errors such as inaccurate weighing or spillage and ensuring consistent, high-quality packaging results.
Specifications
| Fully Automatic Bagging Machine Specifications | |
|---|---|
| Model | WM-QZD50 |
| Power Supply | Three phase 380V/50Hz (customisable) |
| Weighing Range | 5–50kg per bag (arbitrarily adjustable) |
| Packing Speed | 400–600 bags/hour |
| Packing Accuracy | ±2‰ to 5‰ |
| Air Supply Pressure | ≥0.8MPa |
| Compressed Air Requirement | >0.01m³/hour |
| Integrated Systems |
- Automatic bag feeding system - Automatic double weighing system - Automatic bag shifting system - Automatic bag sewing/sealing system - Horizontal belt conveyors - PLC cabinet system |
| Air Cylinder | AIRTAC / SNS |
| Pneumatic Solenoid Valve | AIRTAC |
| Sensors | OMRON |
| Electrical Components | Schneider |
| PLC | SIEMENS |
Why Choose Us
FAQ
How to select the right packing machine?
If you need a small bag packing machine, start by confirming your bag type.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
How to choose the right automatic palletising machine?
To select a suitable automatic palletising machine, first confirm your bag type.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
How does WizMachinery's machines differ from other manufacturers?
We use internationally recognized components like OMRON, SIEMENS, ABB, Schneider, AirTAC, and NSK, ensuring high-quality, reliable machines with minimal concerns about lifespan and future replacements for our clients.
How does WizMachinery's service differ from other manufacturers?
We are a factory with an in-house team of design engineers and a 10,000-square-meter production workshop. Based on customer needs, we provide customized circuit designs and complete project support—from initial consultation, planning, and equipment selection to manufacturing, site layout, delivery, installation, and commissioning.
We offer comprehensive solutions to our clients.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
How does WizMachinery approach product and program design?
We focus on simplicity and user-friendliness in both design and programming, as our goal is to reduce labour costs through automation, not increase operational complexity.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
