Valve Bag Filling Machine
Fast, precise, automated packing with wide use and customisable options.
Fully Automated!

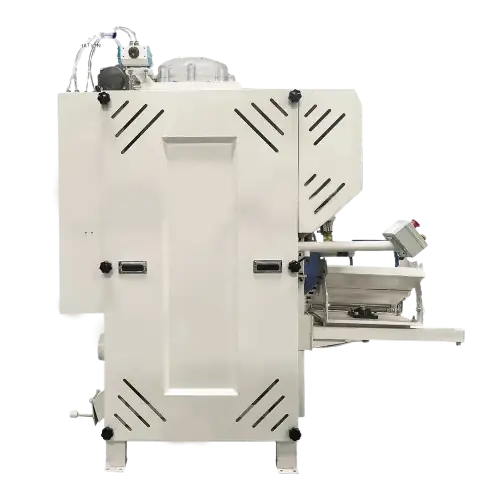

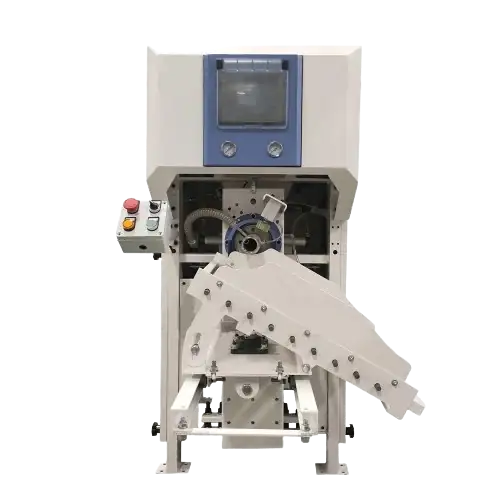

Valve Bag Filling Machine
The Valve Bag Filling Machine uses a pneumatic system to control the opening and closing of the valve, regulating material flow via air pressure while weighing is managed through sensors and controllers. Its high packing accuracy and valve port design help prevent material leakage.
The filling machine is engineered for filling valve-type bags with a wide range of bulk materials. It is suitable for packaging dry building mixtures, cement, gypsum, powdered paints, flour, and other similar products.
0
Tonnes / hr (up to)
0
+
Projects Done
0
Packing kg (up to)

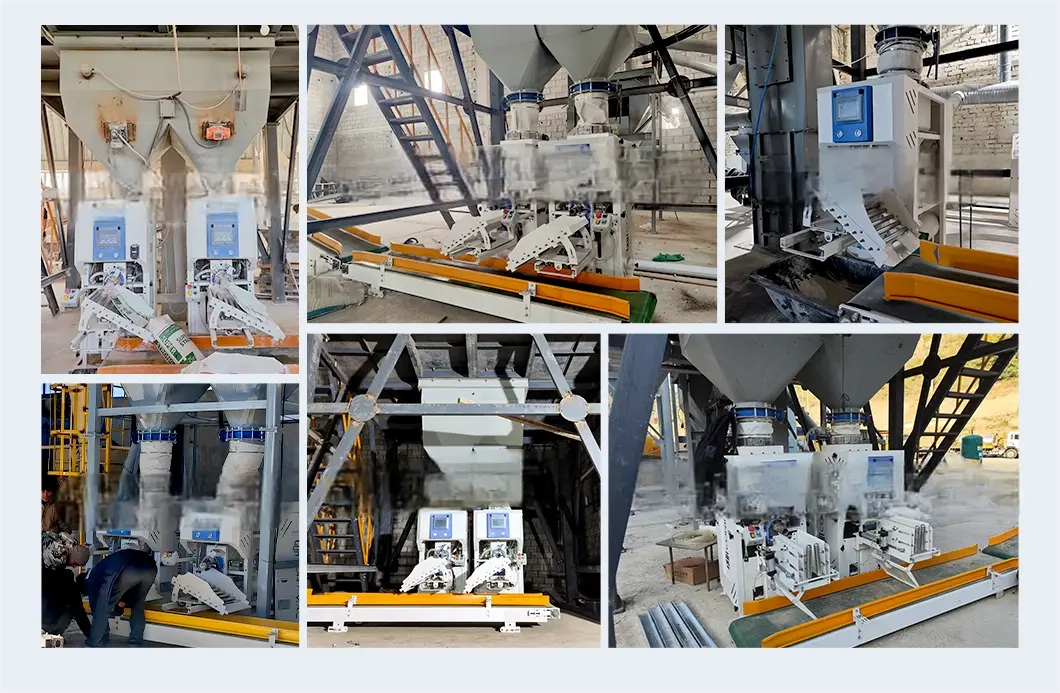

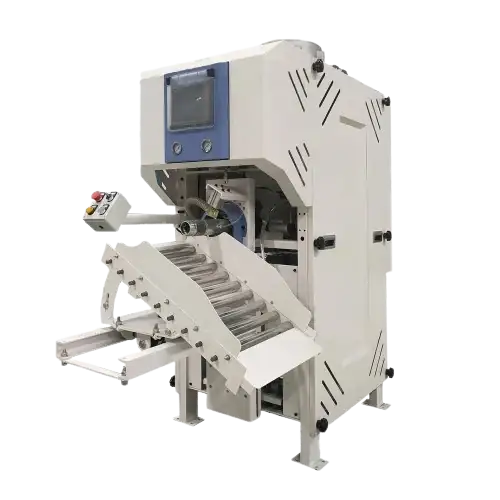

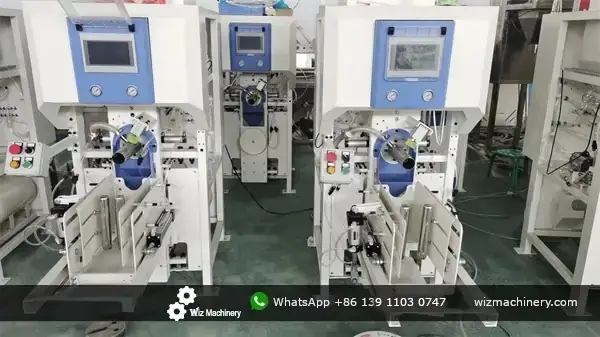

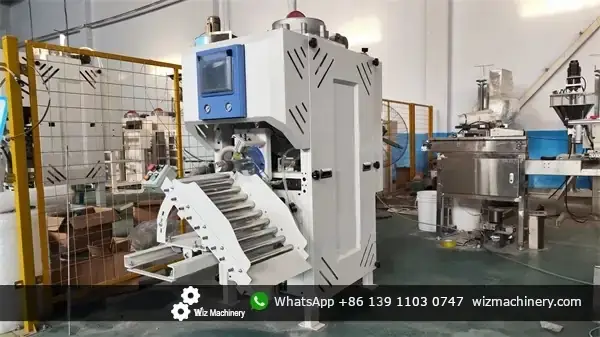

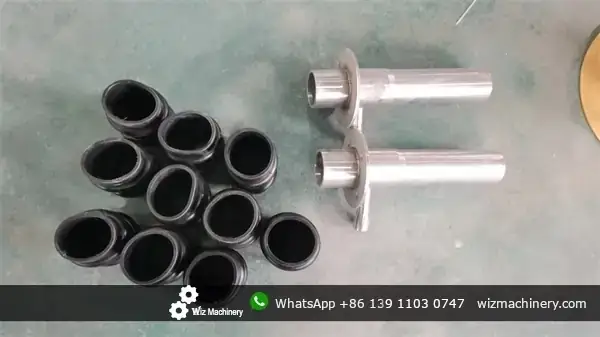

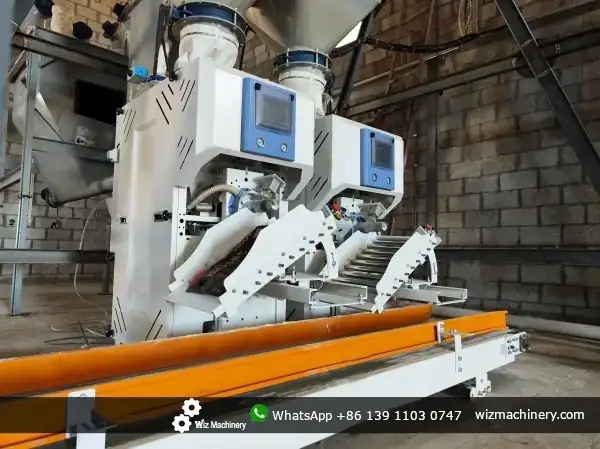

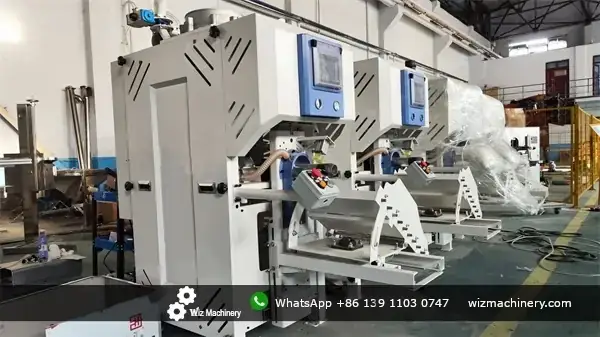

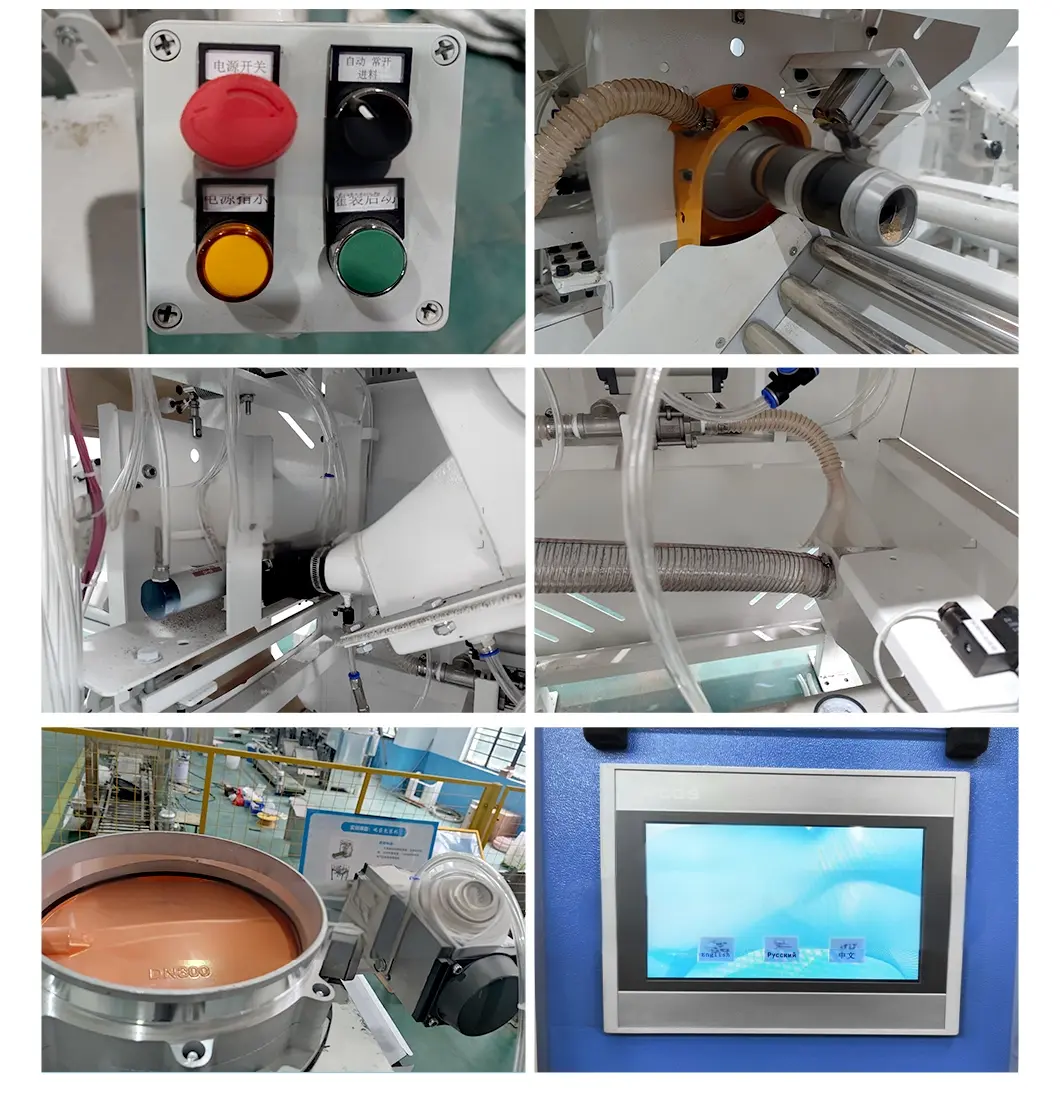

Machinery photos

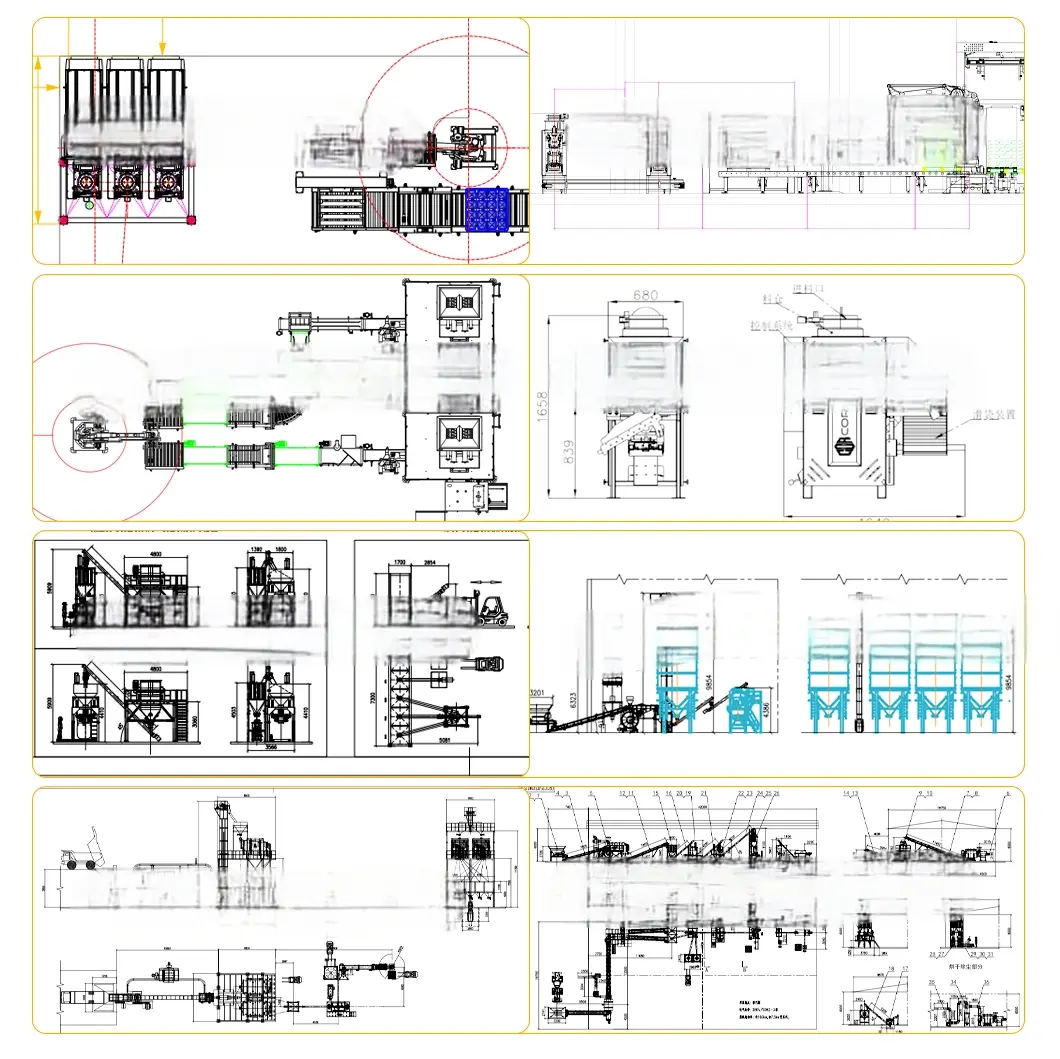

Process flow

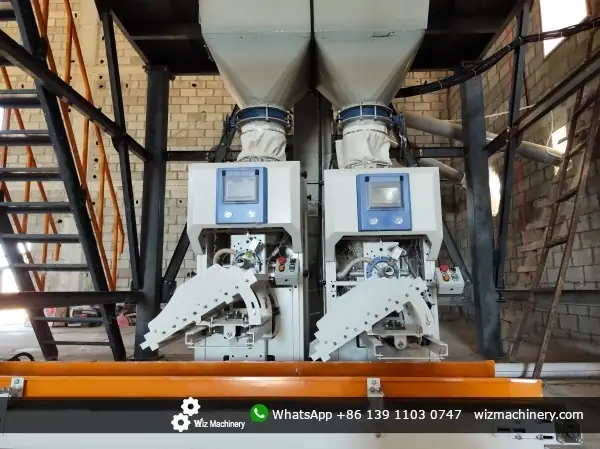

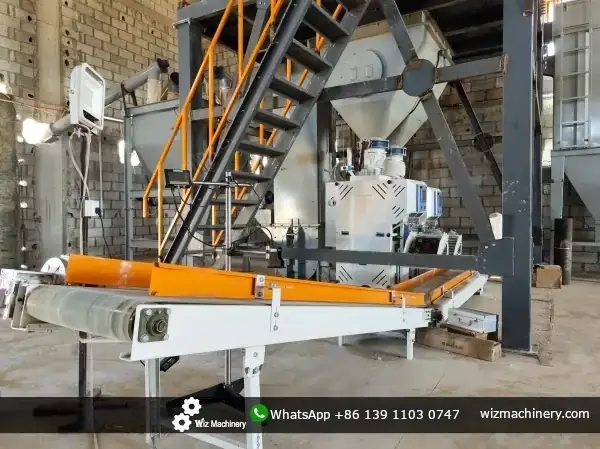

1. Connection to Hopper

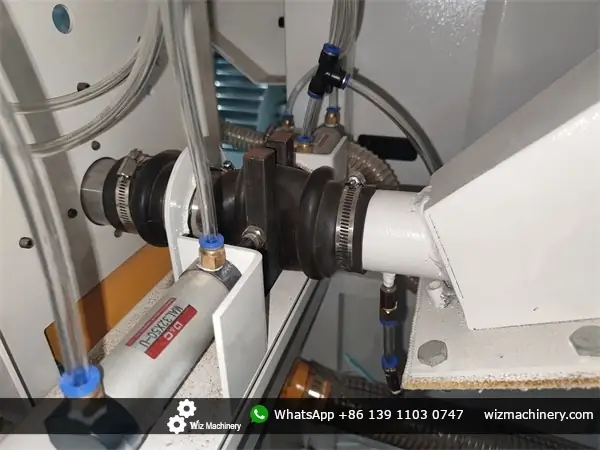

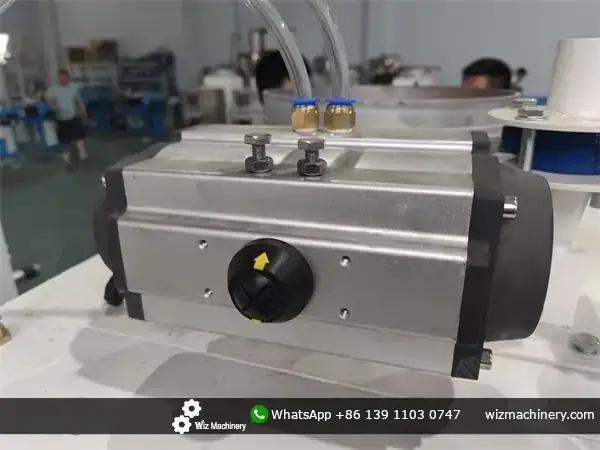

The packing machine is generally positioned beneath the finished product hopper and connected via a soft, flexible link. A pneumatic butterfly valve is installed at the feeding port, automatically opening and closing according to the packaging cycle, ensuring smooth material flow control.

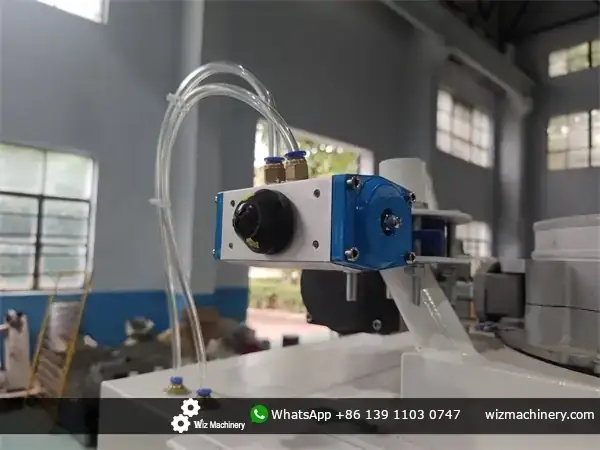

2. Material Transfer into Pressurised Chamber

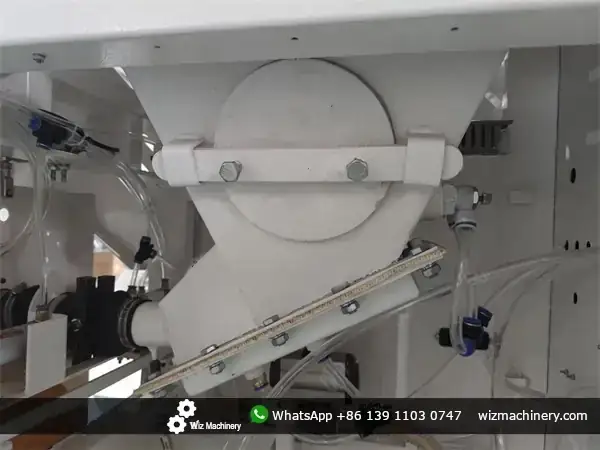

When preparing to fill a bag, the pneumatic butterfly valve opens to allow material to flow from the hopper into the pressurised chamber of the packing machine. This chamber temporarily stores the product before dosing.

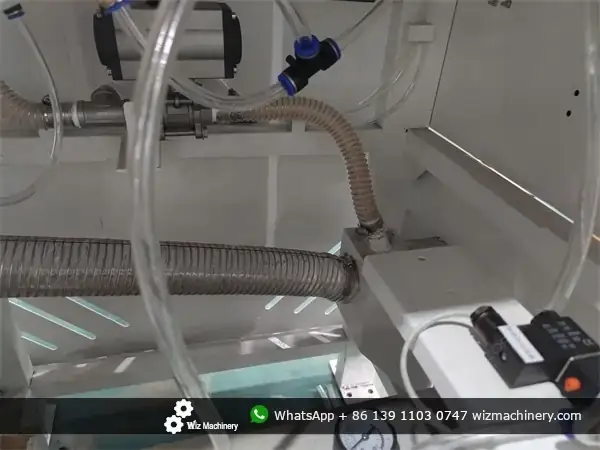

3. Filling the Bag with Compressed Air

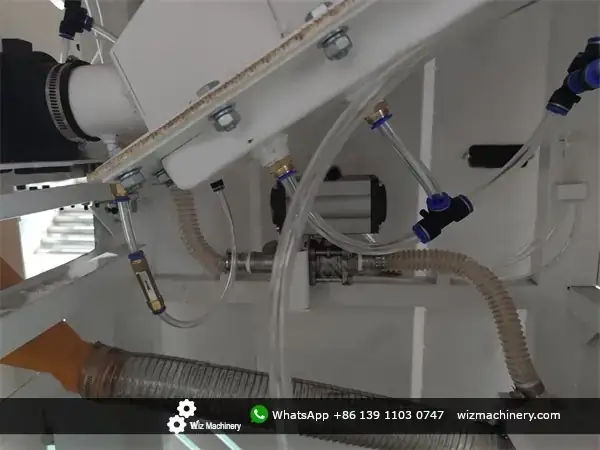

At the start of the filling process, the pneumatic valve at the inlet automatically closes. Compressed air is then used to propel the material from the pressurised chamber through the discharge nozzle into the valve bag. This ensures rapid, consistent bag filling—particularly effective for powdery or granular materials.
4. Weighing and Filling Accuracy

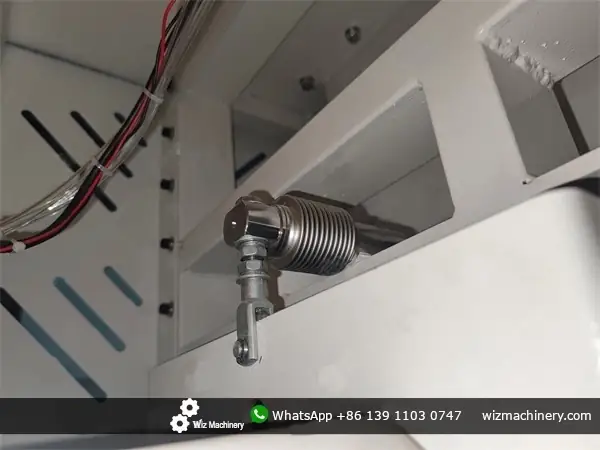

The machine follows the gross weight principle, meaning the total weight of the product and the bag is measured in real time during filling. Once the set target weight is reached, the machine automatically stops the flow of product from the nozzle to maintain precise dosing accuracy.
5. Bag Release and Transfer

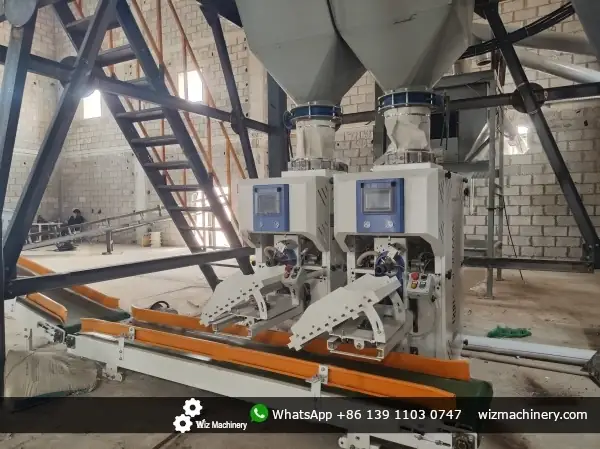

Once filling is complete, the bag is automatically released from the filling nozzle and pushed away using a bag-pushing device. It typically drops onto a belt conveyor located beneath the filler, which transports the bag to the next stage, such as palletising.

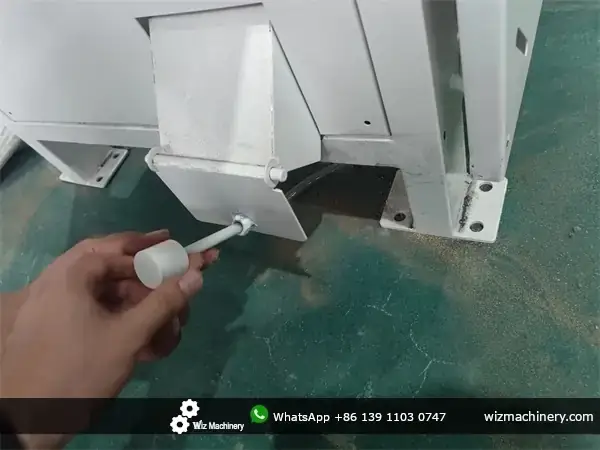

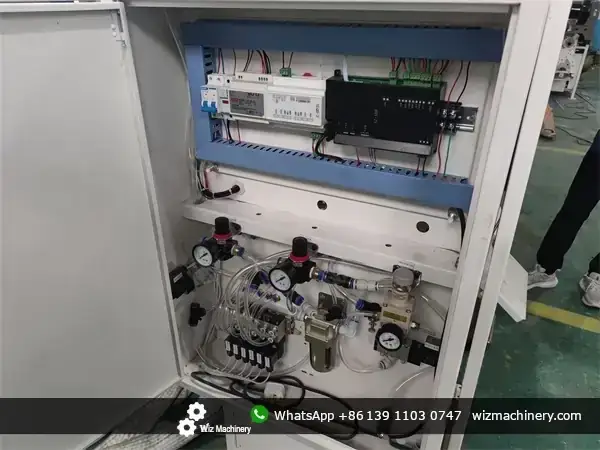

6. Pressure and Flow Adjustment for Versatility

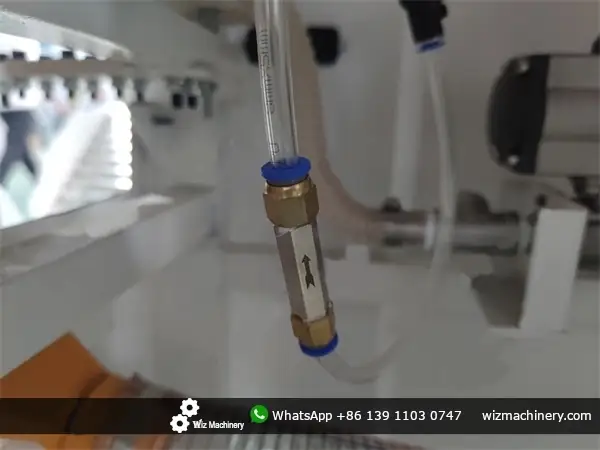

The compressed air pressure supplied to the filling pipe can be independently adjusted to accommodate different product characteristics—including those that are challenging to fill. The dosing valve features a “thin” or fine flow mode, with an adjustable free flow section to allow accurate control of dosing error within a desired range. This flexibility helps maintain filling performance and ensures consistent bag weight—even for materials with varying bulk densities.
Note:
For products with a bulk density of 1000 kg/m³ packed in 50 kg bags, the system achieves a filling capacity of approximately 18 tonnes per hour. Product properties have a significant influence on overall filling efficiency.
Features
Automation Control
The valve bag filling machine features an advanced automation control system, ensuring each bag is packed accurately and efficiently. It can also be fitted with an automatic bag loader for fully automated packaging.
High Packing Speed
Capable of packing 5 to 6 tonnes per hour, this machine is suitable for free-flowing granular or powdered materials such as fertilisers, animal feed, and chemicals.
Adjustable Packing Speed
The packing speed can be easily adjusted to suit production requirements, allowing for greater flexibility across different applications.
Intelligent Sensors
Equipped with smart sensors, the machine monitors bag position, weight, and sealing status in real time. Any detected anomaly triggers an automatic shutdown, ensuring product safety and consistent quality.
Durable Construction
Key components are made from wear- and corrosion-resistant materials, providing reliable, long-term operation under demanding industrial conditions.
Stable and Reliable
The machine runs smoothly with excellent stability, minimizing errors such as inaccurate weighing or spillage and ensuring consistent, high-quality packaging results.

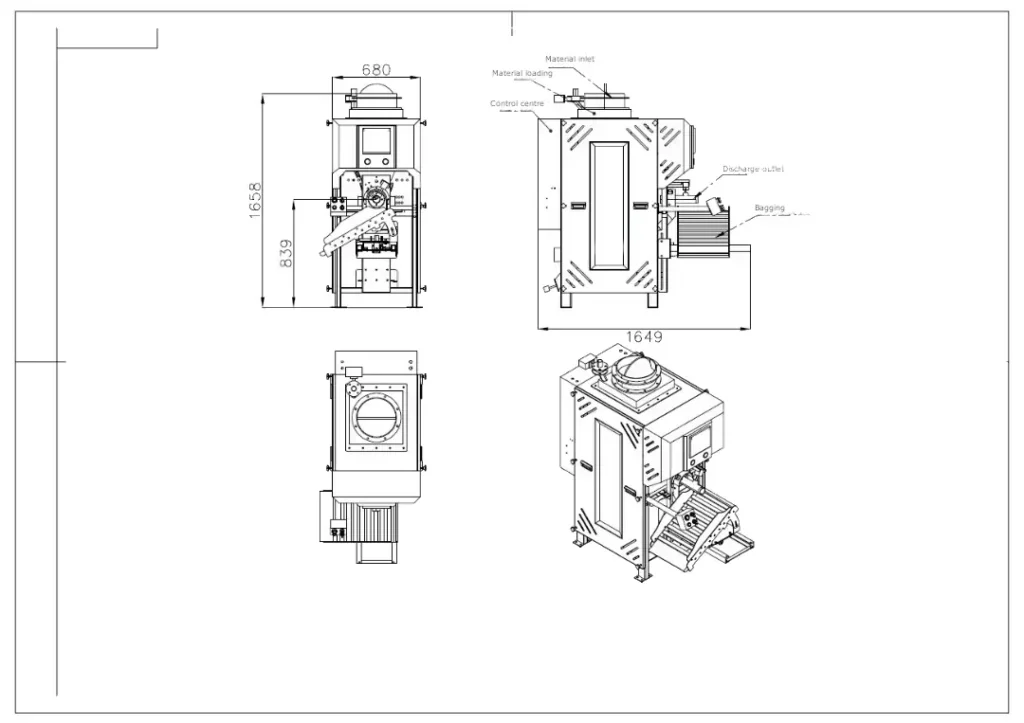

Specifications
| Valve Bag Filling Machine Specifications | |
|---|---|
| Model Number | WZ - FA20 |
| Packing Weight | 10–60kg per bag |
| Filling Accuracy | ≤±0.6% |
| Packing Speed | 200–280 pcs/hour (25kg cement) or 5–6 tons/hour |
| Max. Material Size | ≤5mm |
| Feed Port Diameter | φ300mm |
| Nozzle Diameter | Standard φ63mm (can be made upon request) |
| Bag Opening Size | ≥φ70mm (standard) |
| Air Supply Pressure | ≥0.5–0.6MPa |
| Compressed Air Requirement | ≤0.8m³/h |
| Frequency Converter | SIEMENS |
| Auxiliary Device | Automatic pushing platform |
| Optional Features | Ultrasonic sealing |
