Vertical Form Fill Seal Machines

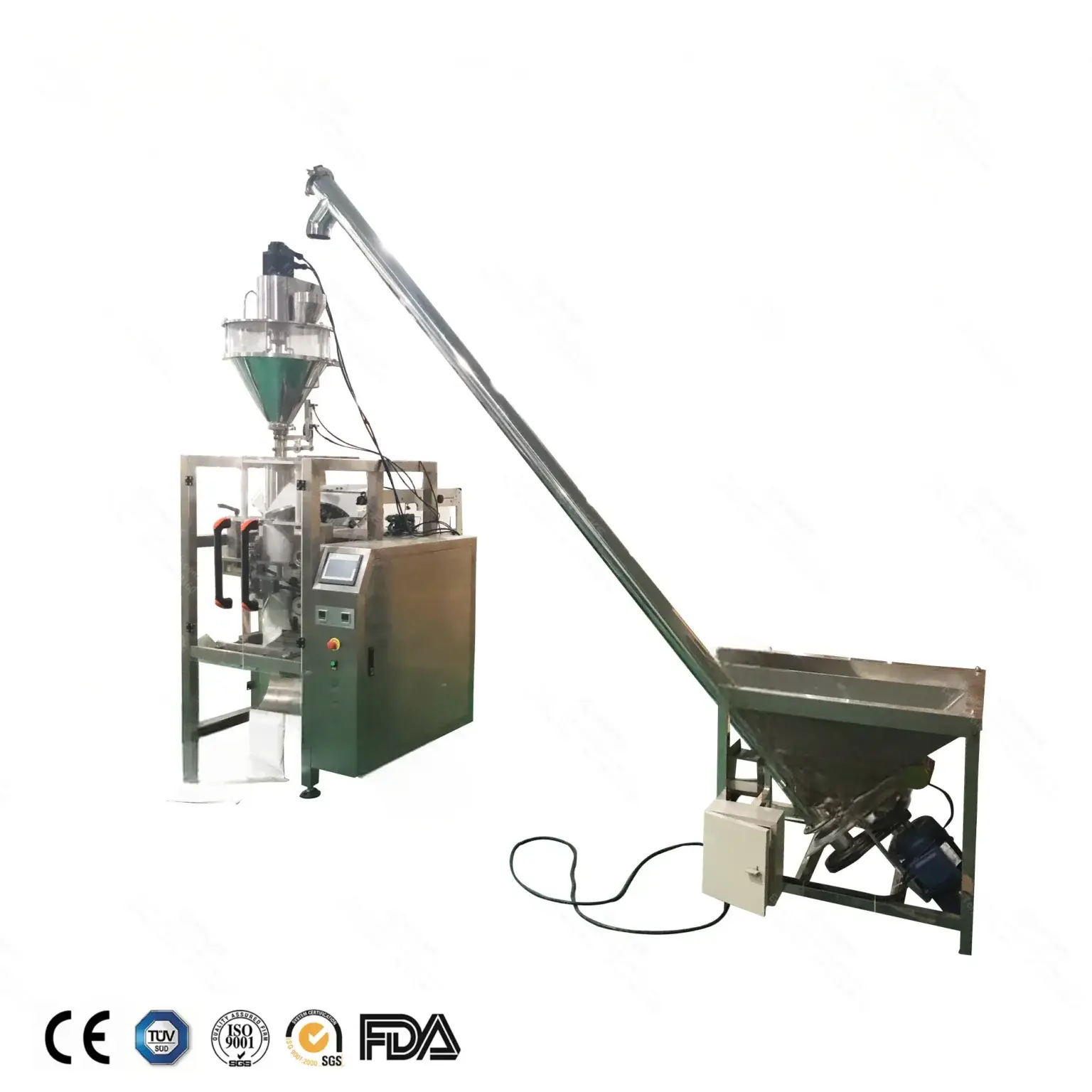

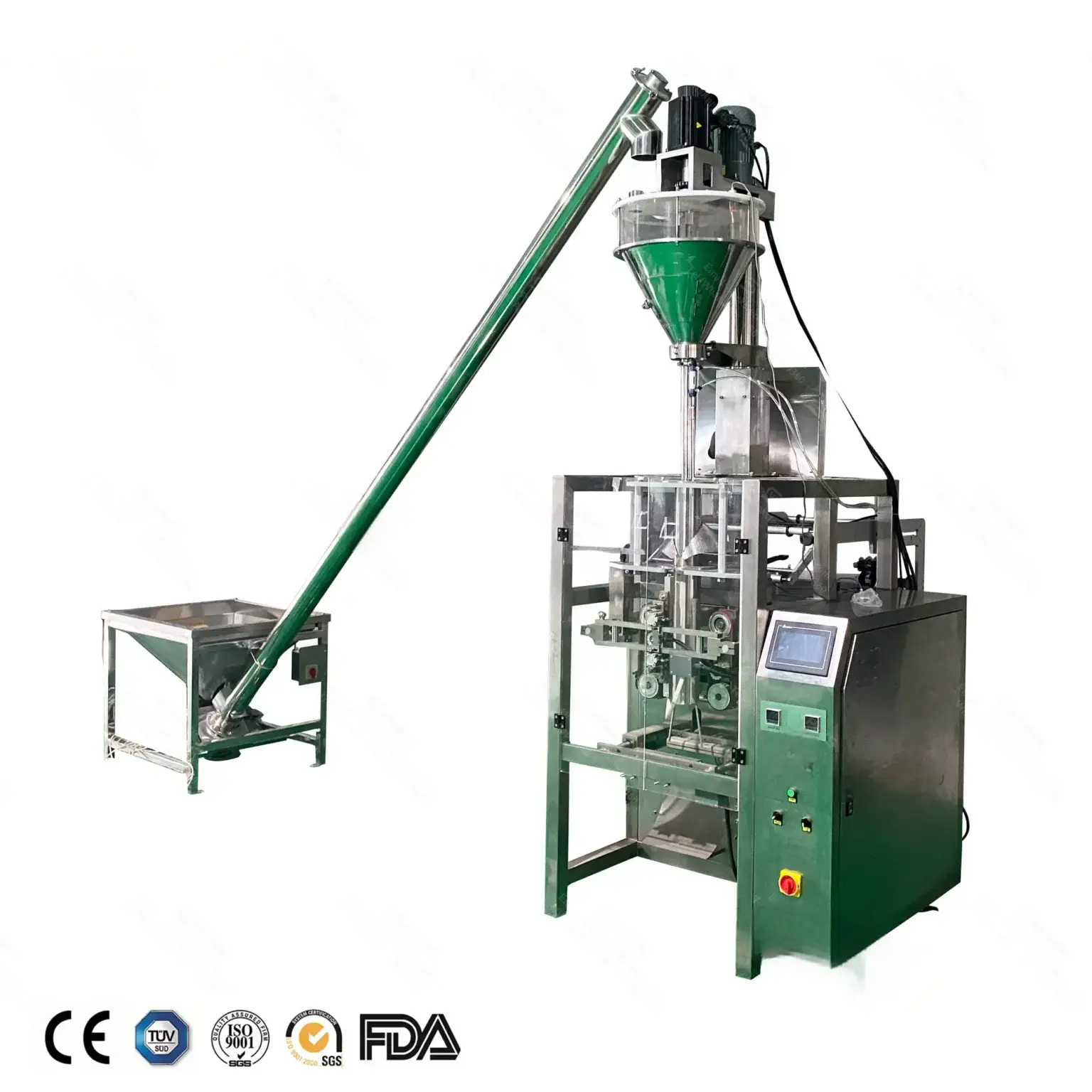

VFFS Pneumatic back sealing powder packing machine
Accurate, efficient, compact, versatile, reliable, intuitive, automated, high-speed.
Efficient!
VFFS Pneumatic back sealing powder packing machine
0
bags/min
0
ml filling range
Process flow
1. Film Roll Loading
The machine begins by unwinding a roll of packaging film, which serves as the raw material for forming bags.
2. Bag Forming
The film is shaped into a bag using a forming collar or tube, creating the basic pouch structure.
3. Bottom Sealing
The machine seals the bottom of the newly formed bag to create a pouch ready for filling.
4. Product Filling
Granular or solid products are automatically dispensed into the open bag through a filling chute.
5. Top Sealing
Once the product is inside, the machine seals the top of the bag, securing the contents.
6. Bag Discharge
The fully sealed bag is released from the machine, ready for collection, packing, or further processing.
Features
Intelligent Control System
Equipped with a programmable logic controller (PLC), the pneumatic powder packing machine enables smart control, easy parameter adjustment via a user-friendly interface, and automatic optimisation of packaging speed.
Precise Photoelectric Detection
An advanced photoelectric detection system ensures accurate positioning and maintains the integrity of printed bag markings, enhancing product presentation and consistency.
Accurate Temperature Control
The dual-circuit heat sealing system delivers precise temperature regulation, ensuring strong, airtight seals and preventing product leakage or damage during handling.
Versatile Filling Options
Supports a variety of filling mechanisms tailored to material types—including powders, granules, liquids, and pastes—offering high adaptability for different industries.
High-Quality Bag Formation
The lapel-type bag-making unit guarantees neat, smooth bag shapes. It also supports optional insert bag functions, making it ideal for producing back-sealed pillow-style bags and more.
Flexible Metering Systems
Offers a range of optional metering methods—such as volumetric cups, auger screw fillers, pumps, or electronic weighers—catering to various production requirements with precision.

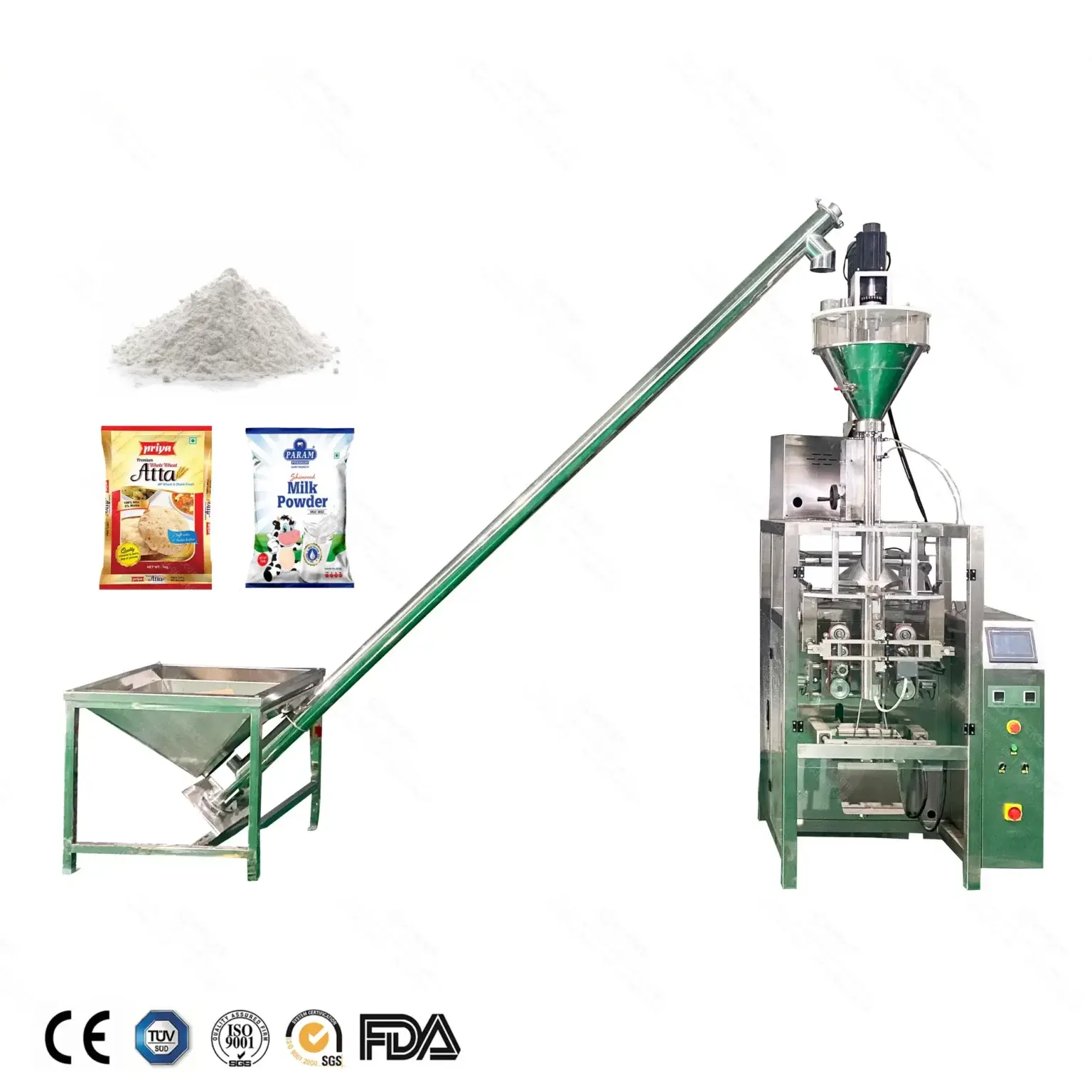

Applications
Specifications
| Specification | Pneumatic Back Sealing Powder Packing Machine |
|---|---|
| Model | WM - PBSPPM60 |
| Output | 15–60 bags/min |
| Filling Range | 200–2000 ml |
| Bag Size | Length: 80–360 mm; Width: 100–250 mm |
| Power | 2.5 kW |
| Voltage | 220V, 2.4 kW, Single Phase |
| Bag Materials | OPP/CPP, CPP/PE and other heat-sealable laminated films; roll type, max outer diameter ≤ 400 mm, core inner diameter 75 mm; film must be flat with clear colour contrast for registration marks |
| Machine Weight | 550 kg |
Why Choose Us
FAQ
How to select the right packing machine?
If you need a small bag packing machine, start by confirming your bag type.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
Next, choose a suitable feeding system (e.g., screw, pump, etc.) based on your product’s characteristics.
Then, select the appropriate machine model according to your bag size. For large bag packing machines (5kg to 50kg), simply let us know your desired output per hour and the type of raw materials you’re using.
How to choose the right automatic palletising machine?
To select a suitable automatic palletising machine, first confirm your bag type.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
Then, based on your product's characteristics, choose an appropriate dosing system (such as screw, pump, etc.).
After that, select the machine model according to the bag size. For larger bags (5kg to 50kg), please provide your target hourly output and the name of your raw material so we can recommend the best solution.
How does WizMachinery's machines differ from other manufacturers?
We use internationally recognized components like OMRON, SIEMENS, ABB, Schneider, AirTAC, and NSK, ensuring high-quality, reliable machines with minimal concerns about lifespan and future replacements for our clients.
How does WizMachinery's service differ from other manufacturers?
We are a factory with an in-house team of design engineers and a 10,000-square-meter production workshop. Based on customer needs, we provide customized circuit designs and complete project support—from initial consultation, planning, and equipment selection to manufacturing, site layout, delivery, installation, and commissioning.
We offer comprehensive solutions to our clients.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
In addition to delivering high-quality machinery, timely online after-sales support, and on-site installation services, we assist clients in selecting the right packaging materials, calculating site area, assessing input-output ratios, and determining requirements for electricity and air supply.
How does WizMachinery approach product and program design?
We focus on simplicity and user-friendliness in both design and programming, as our goal is to reduce labour costs through automation, not increase operational complexity.
What is your production and delivery time?
The typical production cycle for our equipment is approximately 10-30 working days, depending on the machinery. Once production is completed, you can either visit our factory for an inspection or request photos and videos of the finished products.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
We offer various transportation options, including rail, sea, and combined (sea and rail) transport. Delivery times vary by region:
* Southeast Asia: 7-15 days
* Central Asia: 20-30 days
* Middle East: 20-40 days
* Africa & Americas: 30-50 days
* Russia & Europe: 25-40 days
We also provide detailed photos and videos of the loading process, along with complete information regarding equipment declaration and customs clearance.
What is the warranty for the machine?
The warranty period of our equipment is 12 months, usually it takes about 30 days (1 month) from China to the customer's place, and the installation and commissioning time also takes about 30 days (1 month), so the warranty period is extended to 18 months from the date delivery (excluding wearing parts). We will provide customers with the necessary wear parts upon delivery of the goods. If there are any quality problems during the warranty period, we will fix the problem as soon as possible. If the parts need to be replaced, we will deliver them to the customer by air, and we will take care of all costs.
Can engineers be sent to the site for installation and equipment debugging?
Depending on the machinery, we will send an engineer to your facility to assist with machine installation and provide training for your staff on its operation. We will also provide installation instructions for the production line, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation drawings, and we can also guide the installation. The customer is responsible for covering round-trip airfare, accommodation, and a fee of USD 150 per day per person. The duration of the visit will depend on the machines ordered, typically ranging from 7 to 30 days.
What certificates do you have?
We hold ISO 9001 certifications for environmental protection and quality management systems. Additional certifications, such as SGS and EAC, can be provided based on the requirements of the customer's country.
What are your payment terms?
Payment ≦ 5000 USD, 100% in advance. Payment ≥ 5000 USD, 30% T/T in advance, balance before shipment.
Can you produce customized equipment based on our requirements?
Yes, we can manufacture customised equipment tailored to your specific needs. Since end users best understand the challenges they face during operation, we welcome customer feedback and continuously improve our machines based on those insights.
